Indoor Water System

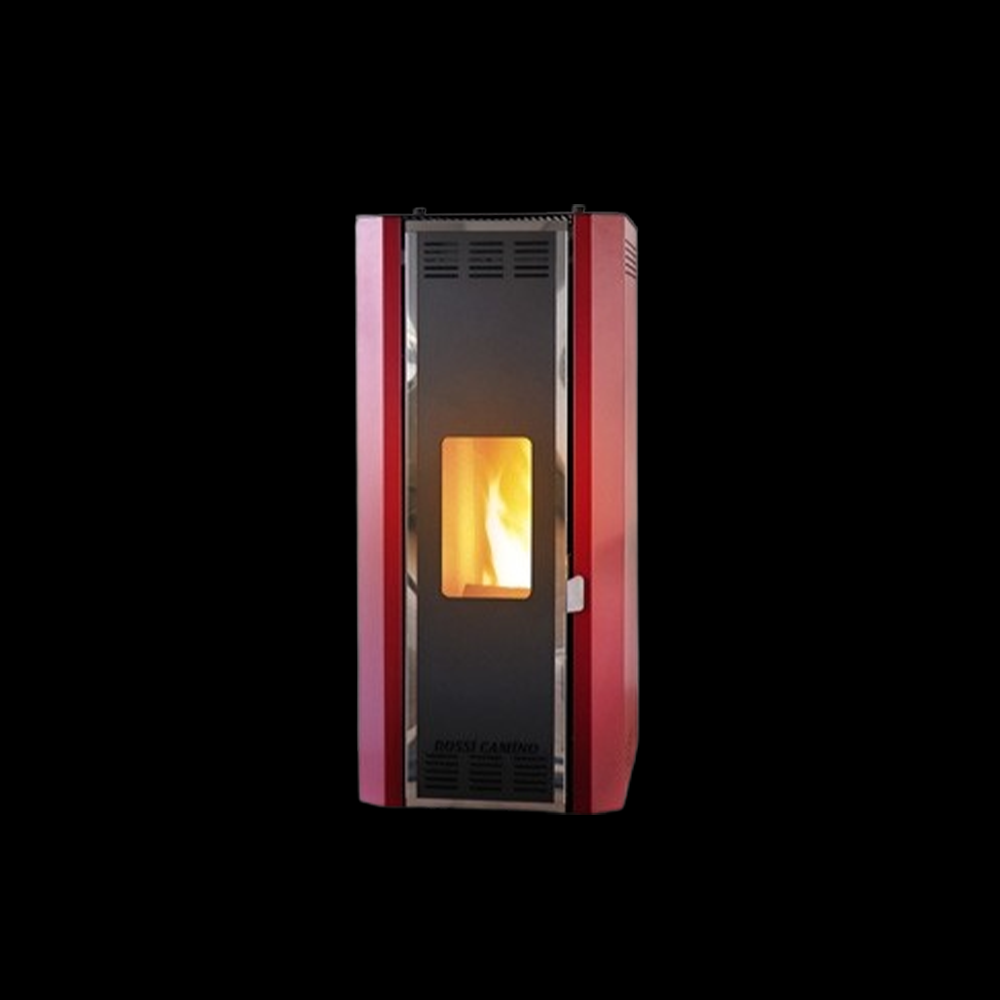

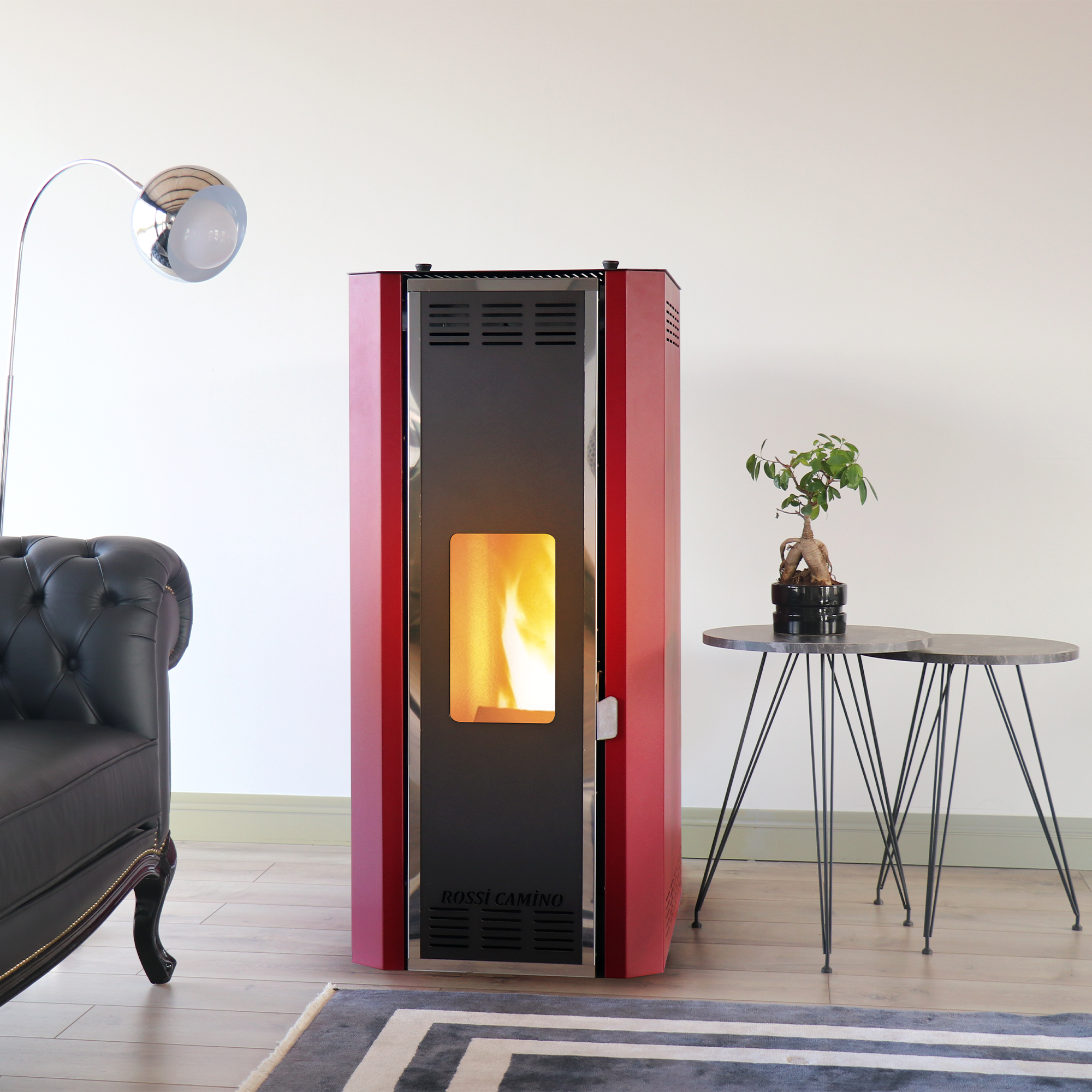

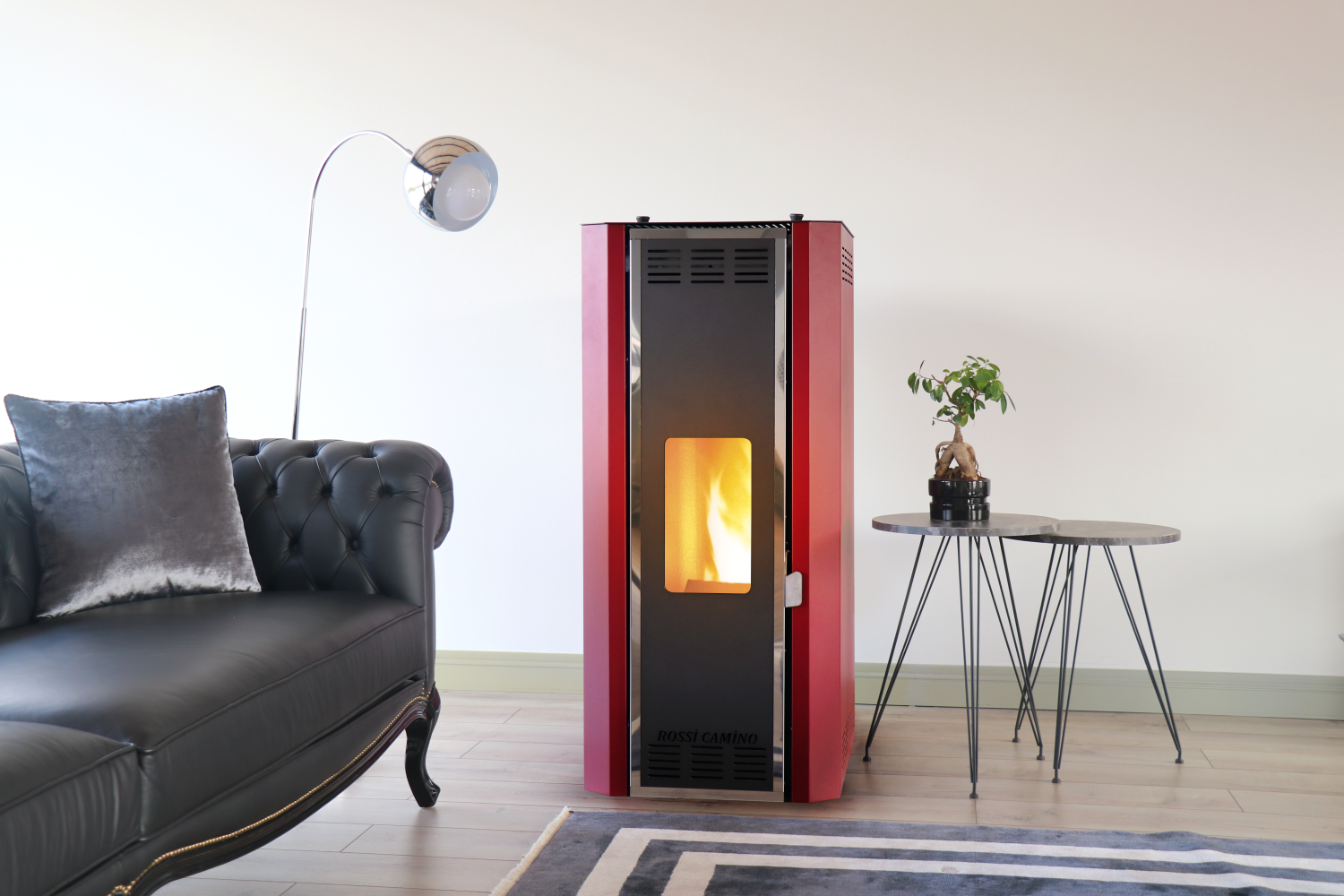

The glass-front Camino Series is designed for indoor spaces, combining high efficiency with an elegant fireplace-like appearance. Its authentic front glass creates a warm visual atmosphere, while the long-lasting steel body and strong glass wool and ceramic insulation ensure durability and thermal stability.
Color Option
Black
White
Maroon
Camino Series Pellet Boiler combines elegant fireplace aesthetics with high-efficiency performance, delivering durability, thermal stability, and fully automated operation for indoor spaces.
Smart modulation, integrated hydraulic components, hot water compatibility, and flexible system integration ensure intelligent control, enhanced safety, and consistent comfort.
General Features
Technical Specifications
Documents
Images & Videos
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
Smoke pipe cleaning thanks to the special mechanism on the boiler, can be performed effortlessly manually with the help of a lever. This one this reduces cleaning time, increases efficiency and ensures a long service life. Provided.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
Smoke pipe cleaning thanks to the special mechanism on the boiler, can be performed effortlessly manually with the help of a lever. This one this reduces cleaning time, increases efficiency and ensures a long service life. Provided.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
Smoke pipe cleaning thanks to the special mechanism on the boiler, can be performed effortlessly manually with the help of a lever. This one this reduces cleaning time, increases efficiency and ensures a long service life. Provided.
MODEL
CAMINO-10
CAMINO-10
CAMINO-15
CAMINO-25
CAMINO-35
| Capacity kW | 3-10 |
| Width (A) mm | 480 |
| Length (B) mm | 725 |
| Height (C) mm | 910 |
| Hot Water Outlet Height (D) mm | 640 |
| Cold Water Inlet Height (E) mm | 285 |
| Flue Outlet Height (F) mm | 140 |
| Flue Diameter mm | 80 |
| Flow – Return inch | 1 |
| Expansion Outlet inch | 1/2 |
| Fill – Drain inch | 1/2 |
| Weight kg | 115 |
| Water Volume lt | 17.5 |
| Chamber Capacity lt | 32 |
| Ash Removal Box Capacity l | 1.5 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 6 |
| Fuel Consumption kg/h | 0.7-2.2 |
| Capacity kW | 5-15 |
| Width (A) mm | 485 |
| Length (B) mm | 735 |
| Height (C) mm | 1050 |
| Hot Water Outlet Height (D) mm | 780 |
| Cold Water Inlet Height (E) mm | 235 |
| Flue Outlet Height (F) mm | 150 |
| Flue Diameter mm | 80 |
| Flow – Return inch | 1 |
| Expansion Outlet inch | 1/2 |
| Fill – Drain inch | 1/2 |
| Weight kg | 137 |
| Water Volume lt | 22 |
| Chamber Capacity lt | 65 |
| Ash Removal Box Capacity l | 2 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity kW | 5-25 |
| Width (A) mm | 525 |
| Length (B) mm | 750 |
| Height (C) mm | 1200 |
| Hot Water Outlet Height (D) mm | 925 |
| Cold Water Inlet Height (E) mm | 235 |
| Flue Outlet Height (F) mm | 150 |
| Flue Diameter mm | 80 |
| Flow – Return inch | 1 |
| Expansion Outlet inch | 1/2 |
| Fill – Drain inch | 1/2 |
| Weight kg | 150 |
| Water Volume lt | 35 |
| Chamber Capacity lt | 80 |
| Ash Removal Box Capacity l | 2 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
| Capacity kW | 12-35 |
| Width (A) mm | 555 |
| Length (B) mm | 820 |
| Height (C) mm | 1270 |
| Hot Water Outlet Height (D) mm | 1000 |
| Cold Water Inlet Height (E) mm | 235 |
| Flue Outlet Height (F) mm | 135 |
| Flue Diameter mm | 127 |
| Flow – Return inch | 1 |
| Expansion Outlet inch | 1/2 |
| Fill – Drain inch | 1/2 |
| Weight kg | 200 |
| Water Volume lt | 41 |
| Chamber Capacity lt | 90 |
| Ash Removal Box Capacity l | 2 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 2.4-8 |
