Pelet
Offering maximum heating performance in tight spaces with its compact design, Lidya Compact Series is user-friendly with automatic fuel supply and modulating control panel.
Color Option
White
Our product provides high-efficiency body design and
ensures economy
. With automatic fuel loading, automatic ignition, remote control, easy chimney cleaning, and other rich
functions, it offers comfort to the user.
General Features
Technical Specifications
Documents
Images & Videos

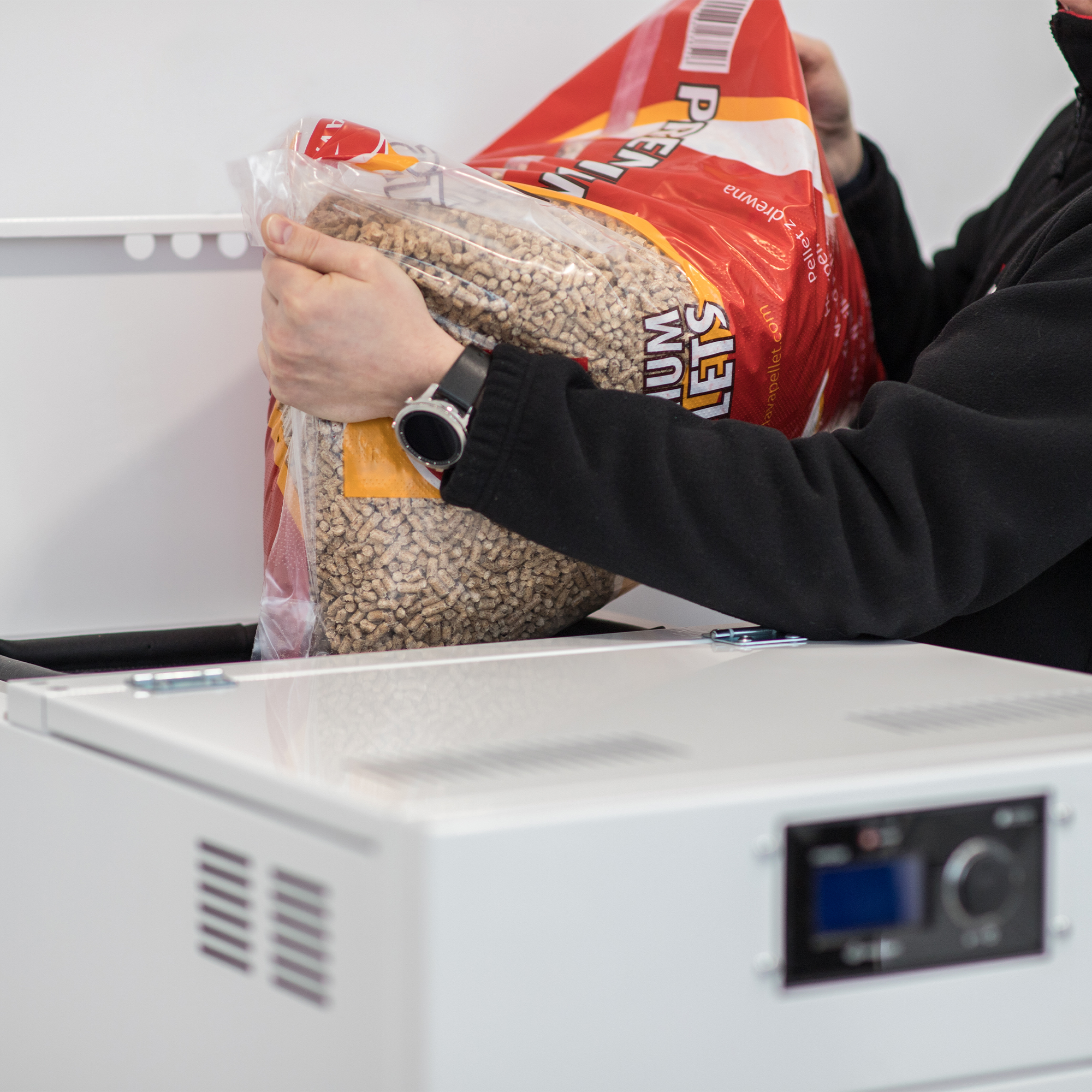

By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Thanks to the manual lever burner cleaning feature of the boiler, the combustion chamber accumulated ash and residues are easily removed. This system is user-friendly, accelerates the maintenance process, improves fuel efficiency and increases the longevity of the boiler. ensures longevity. Effortless cleaning and always high performance warm-up experience.
The new patented “brushless” gear motor is specially produced for Kozlusan and is used in pellet loading screws and automatic grid cleaning system. Compared to conventional geared motors, it is more powerful, quieter and less energy consuming (electricity consumption is reduced by 90% compared to conventional motors).
The amount of ash produced by the hearth is minimal and the small amount of unburnt material left behind is removed by means of an automatically activated self-cleaning grate. Cleaning the firebox therefore becomes a quick and easy task that is only done once a week.
Thanks to a new ceramic spark plug, the flame appears in less than three minutes. This results in a 40% reduction in ignition times and a significant reduction in electricity consumption.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Thanks to the manual lever burner cleaning feature of the boiler, the combustion chamber accumulated ash and residues are easily removed. This system is user-friendly, accelerates the maintenance process, improves fuel efficiency and increases the longevity of the boiler. ensures longevity. Effortless cleaning and always high performance warm-up experience.
The new patented “brushless” gear motor is specially produced for Kozlusan and is used in pellet loading screws and automatic grid cleaning system. Compared to conventional geared motors, it is more powerful, quieter and less energy consuming (electricity consumption is reduced by 90% compared to conventional motors).
The amount of ash produced by the hearth is minimal and the small amount of unburnt material left behind is removed by means of an automatically activated self-cleaning grate. Cleaning the firebox therefore becomes a quick and easy task that is only done once a week.
Thanks to a new ceramic spark plug, the flame appears in less than three minutes. This results in a 40% reduction in ignition times and a significant reduction in electricity consumption.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Thanks to the manual lever burner cleaning feature of the boiler, the combustion chamber accumulated ash and residues are easily removed. This system is user-friendly, accelerates the maintenance process, improves fuel efficiency and increases the longevity of the boiler. ensures longevity. Effortless cleaning and always high performance warm-up experience.
The new patented “brushless” gear motor is specially produced for Kozlusan and is used in pellet loading screws and automatic grid cleaning system. Compared to conventional geared motors, it is more powerful, quieter and less energy consuming (electricity consumption is reduced by 90% compared to conventional motors).
The amount of ash produced by the hearth is minimal and the small amount of unburnt material left behind is removed by means of an automatically activated self-cleaning grate. Cleaning the firebox therefore becomes a quick and easy task that is only done once a week.
Thanks to a new ceramic spark plug, the flame appears in less than three minutes. This results in a 40% reduction in ignition times and a significant reduction in electricity consumption.
MODEL
LİDYA COMPACT 15
LİDYA COMPACT 15
LİDYA COMPACT 25
| Capacity Range 5-15 | kw |
| Width (A) mm | 508 |
| Length (B) mm | 815 |
| Length (with Proplus Ash Box) (B1) mm | |
| Height (C) mm | 1150 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 243 |
| Chimney Outlet Height (F) mm | 155 |
| Chimney Diameter mm | 80 |
| Return – Flow inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 193 |
| Water Capacity liters | 29 |
| Chamber Capacity liters | 43 |
| Additional Chamber Capacity liters | 40 |
| Ash Box Capacity liters | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 35-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity Range kW | 5-25 |
| Width (A) mm | 555 |
| Length (B) mm | 855 |
| Length (with Proplus Ash Box) (B1) mm | |
| Height (C) mm | 1270 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Chimney Outlet Height (F) mm | 155 |
| Chimney Diameter mm | 80 |
| Return – Flow inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 210 |
| Water Capacity liters | 37 |
| Chamber Capacity liters | 65 |
| Additional Chamber Capacity liters | 50 |
| Ash Box Capacity liters | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 35-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
