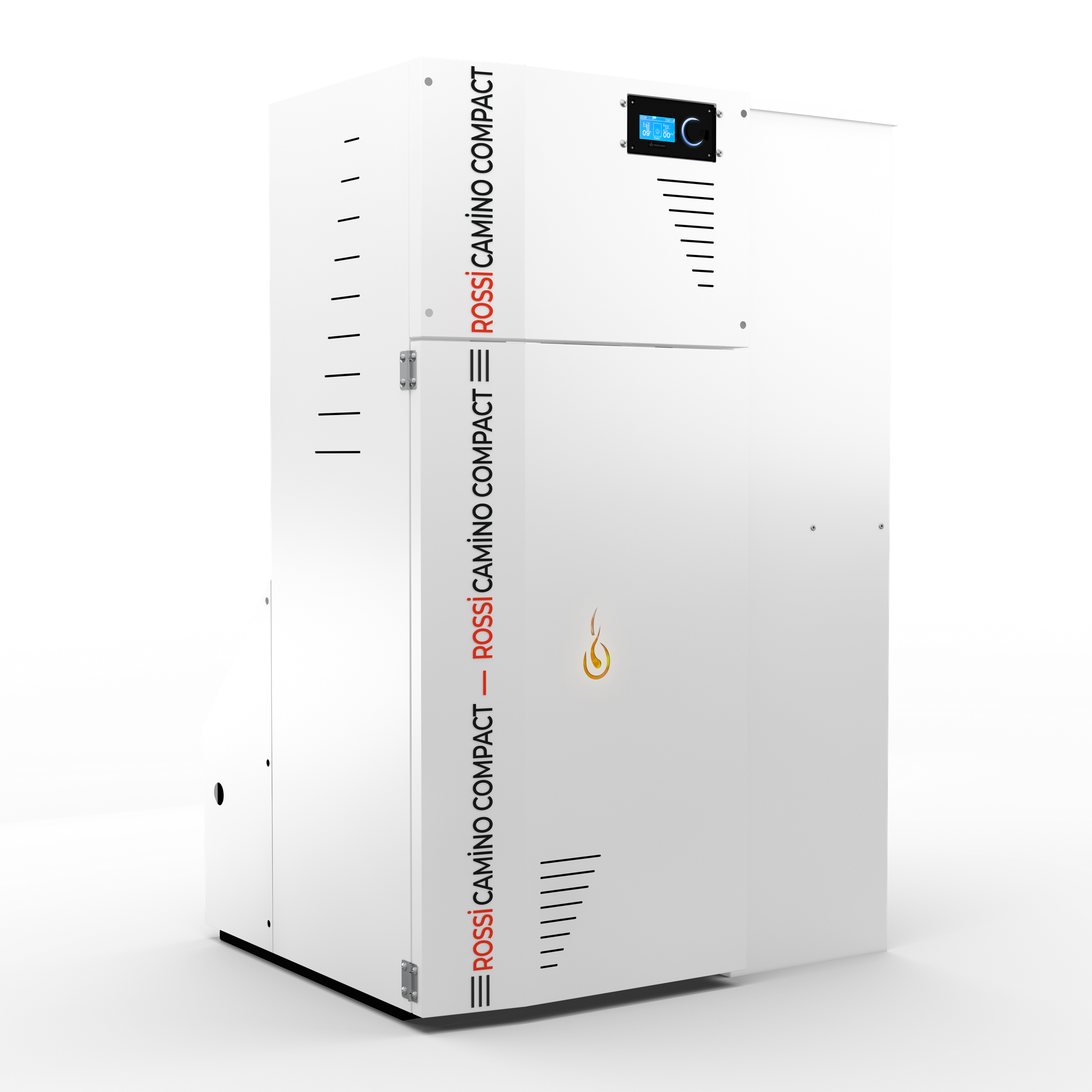

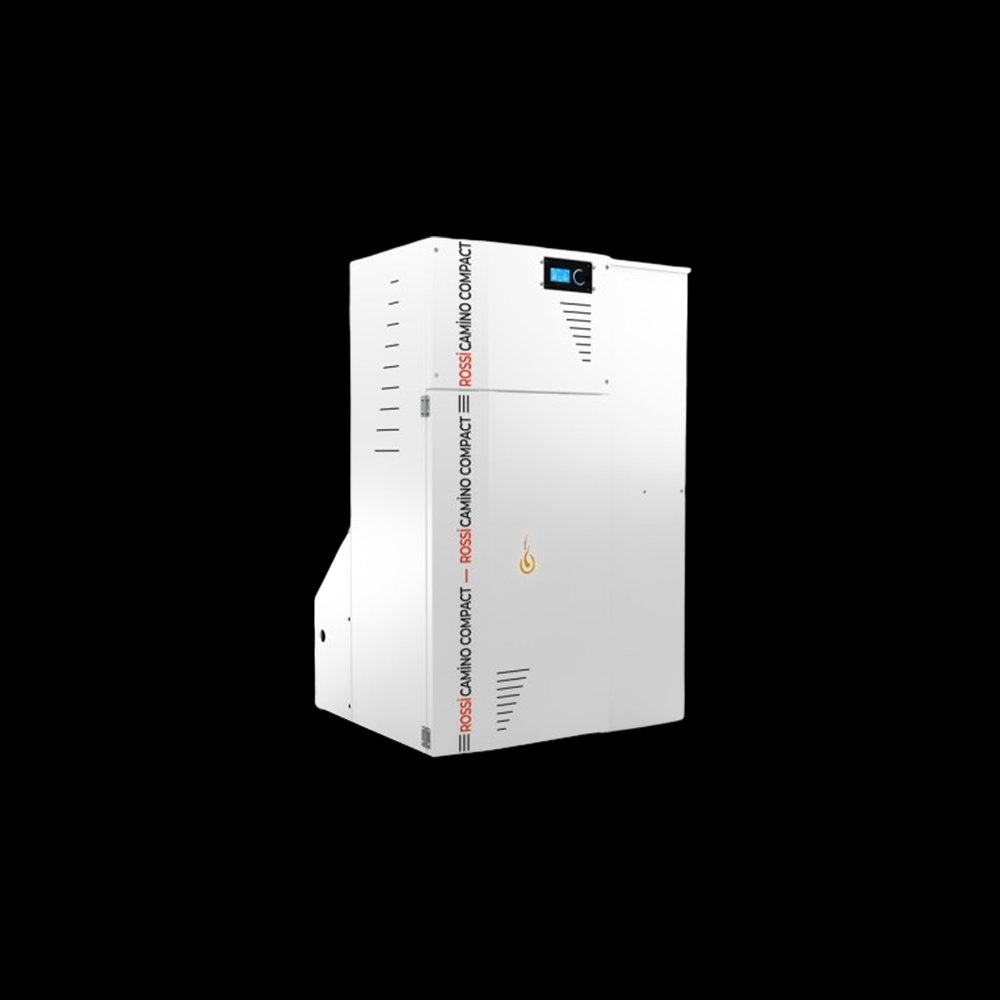

CAMİNO COMPACT is a water system pellet stove specially designed for outdoor use. designed as
Color Option
White
Camino Compact; Automatic fuel loading,
Automatic ignition,
as well as a smart card with wireless control
thanks to one of the most equipped devices.

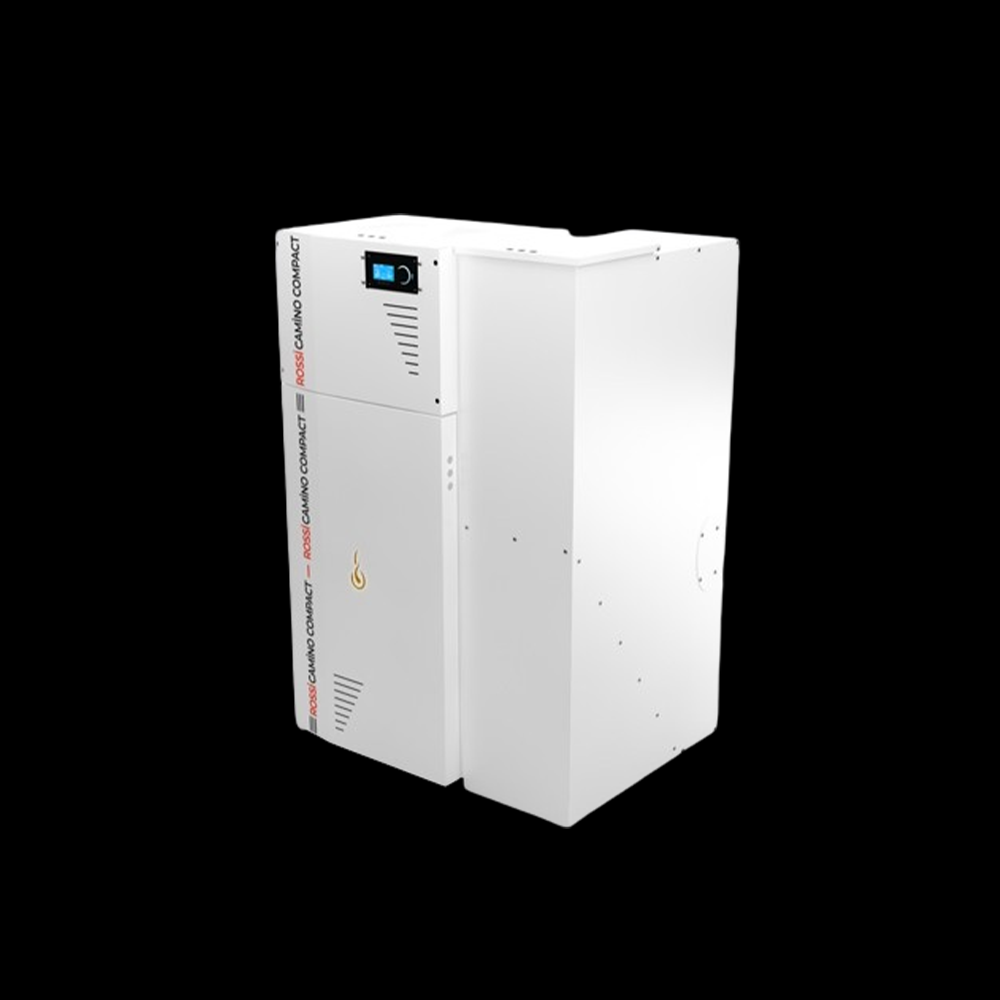

And thanks to the side-loading fuel tank
offers extra storage capacity.
General Features
Technical Specifications
Documents
Images & Videos
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
MODEL
CAMINO COMPACT LARGE SIDE CHAMBER-10
CAMINO COMPACT LARGE SIDE CHAMBER-10
CAMINO COMPACT LARGE SIDE CHAMBER-15
CAMINO COMPACT LARGE SIDE CHAMBER-25
CAMINO COMPACT LARGE SIDE CHAMBER-35
| Capacity Range kW | 3-10 |
| Width (A) mm | 790 |
| Length (B) mm | 670 |
| Height (C) mm | 1100 |
| Hot Water Outlet Height (D) mm | 640 |
| Cold Water Inlet Height (E) mm | 235 |
| Flue Outlet Height (F) mm | 140 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Imbiss Outlet inches | 1/2 |
| Fill – Drain inches | 1/2 |
| Weight kg | 135 |
| Water Volume lt | 17.5 |
| Tank Capacity lt | 128 |
| Ash Emptying Box Capacity lt | 1.5 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 6 |
| Fuel Consumption kg/h | 0.7-2.2 |
| Capacity Range kW | 5-15 |
| Width (A) mm | 785 |
| Length (B) mm | 700 |
| Height (C) mm | 1110 |
| Hot Water Outlet Height (D) mm | 780 |
| Cold Water Inlet Height (E) mm | 235 |
| Flue Outlet Height (F) mm | 150 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Imbiss Outlet inches | 1/2 |
| Fill – Drain inches | 1/2 |
| Weight kg | 147 |
| Water Volume lt | 22 |
| Tank Capacity lt | 153 |
| Ash Emptying Box Capacity lt | 2 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity Range kW | 5-25 |
| Width (A) mm | 830 |
| Length (B) mm | 750 |
| Height (C) mm | 1260 |
| Hot Water Outlet Height (D) mm | 925 |
| Cold Water Inlet Height (E) mm | 235 |
| Flue Outlet Height (F) mm | 150 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Imbiss Outlet inches | 1/2 |
| Fill – Drain inches | 1/2 |
| Weight kg | 160 |
| Water Volume lt | 35 |
| Tank Capacity lt | 198 |
| Ash Emptying Box Capacity lt | 2 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
| Capacity Range kW | 12-35 |
| Width (A) mm | 900 |
| Length (B) mm | 850 |
| Height (C) mm | 1330 |
| Hot Water Outlet Height (D) mm | 1000 |
| Cold Water Inlet Height (E) mm | 235 |
| Flue Outlet Height (F) mm | 135 |
| Flue Diameter mm | 127 |
| Flow – Return inches | 1 |
| Imbiss Outlet inches | 1/2 |
| Fill – Drain inches | 1/2 |
| Weight kg | 210 |
| Water Volume lt | 41 |
| Tank Capacity lt | 210 |
| Ash Emptying Box Capacity lt | 2 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 2.4-8 |
