Indoor Water System

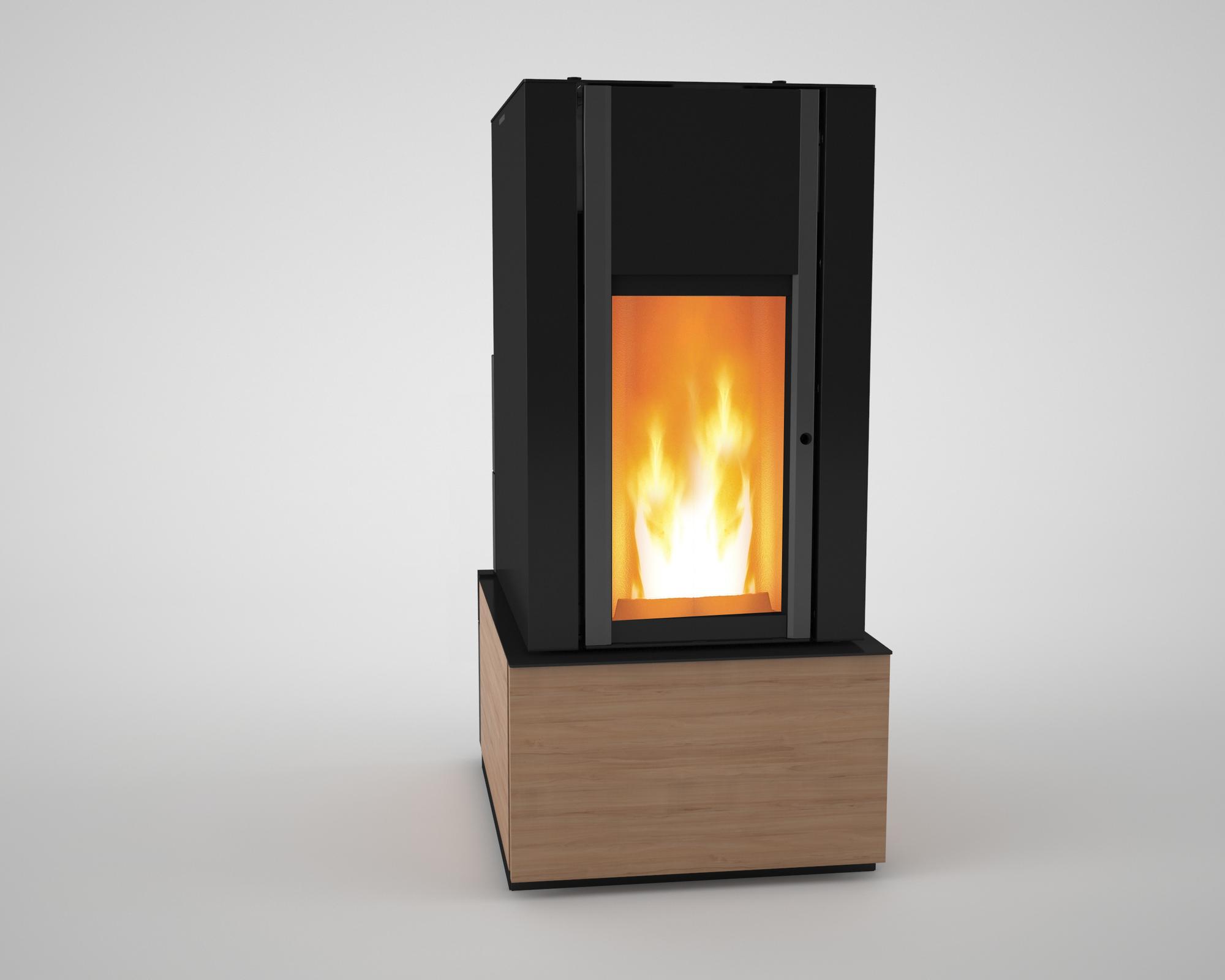

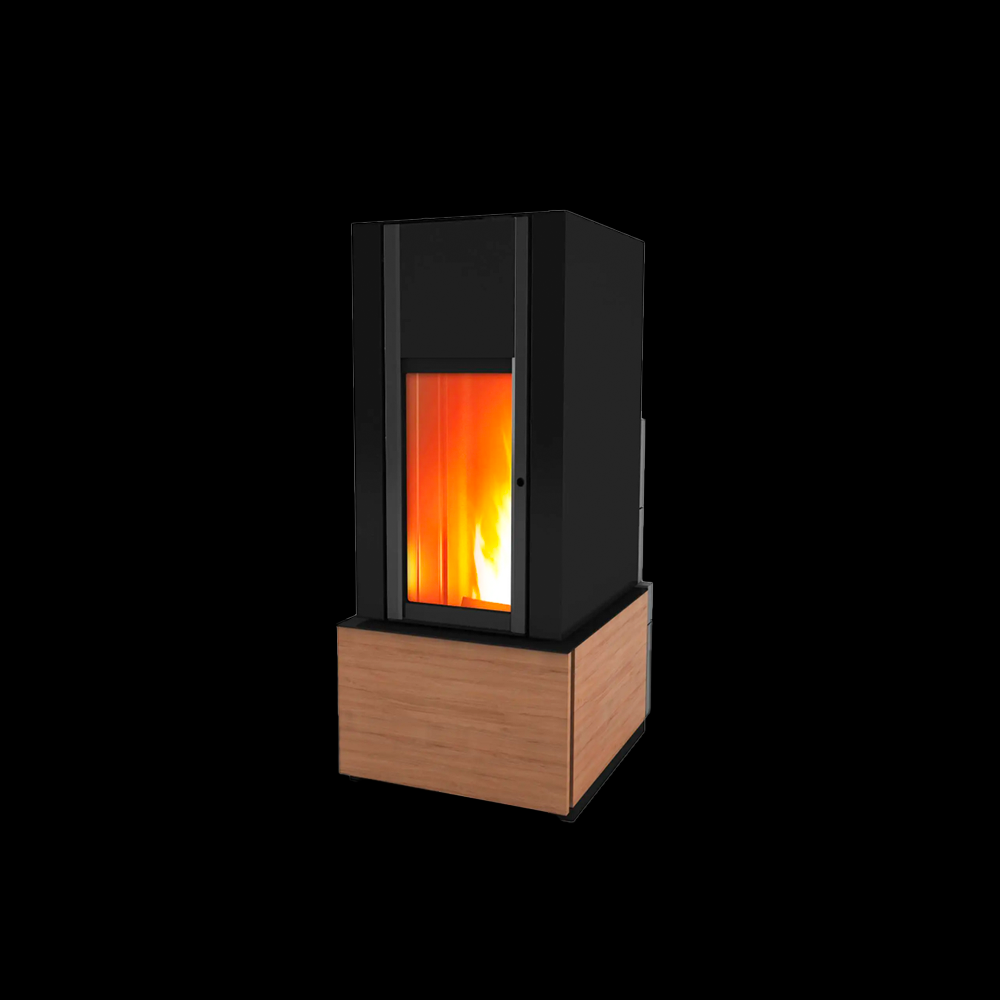

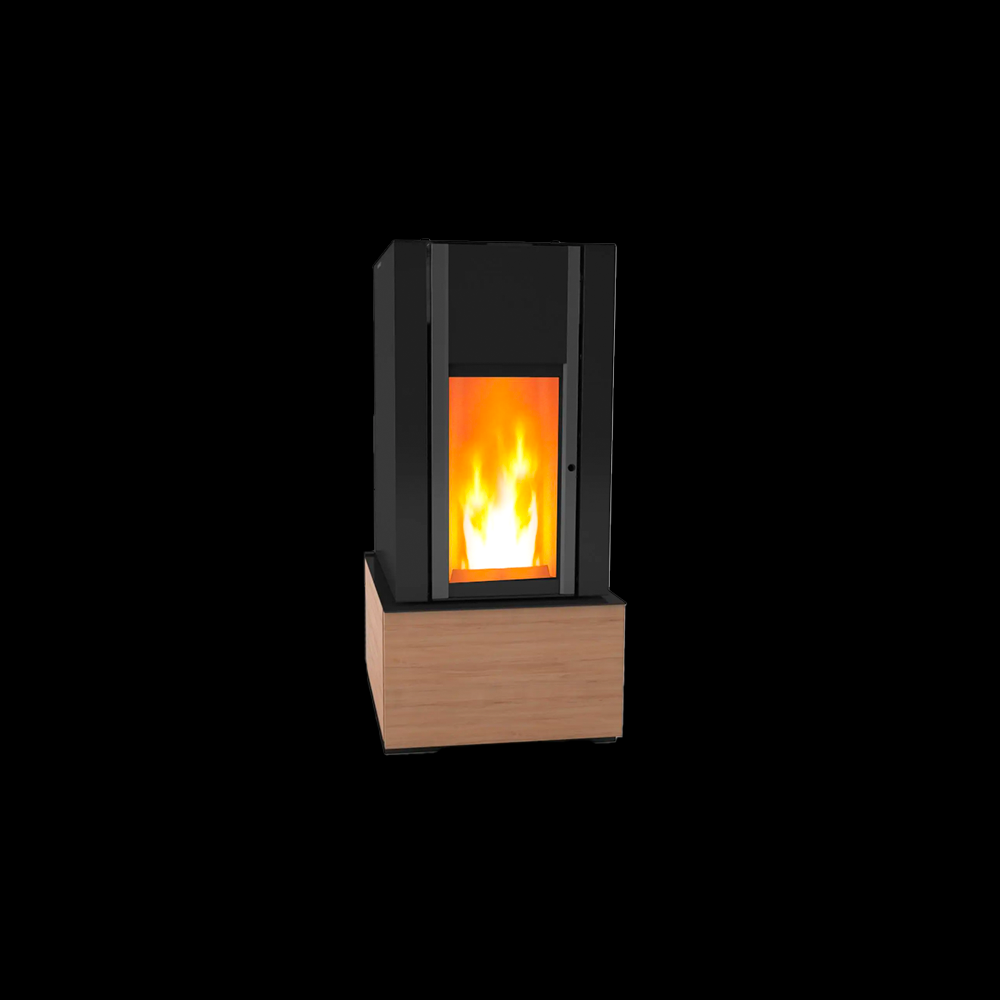

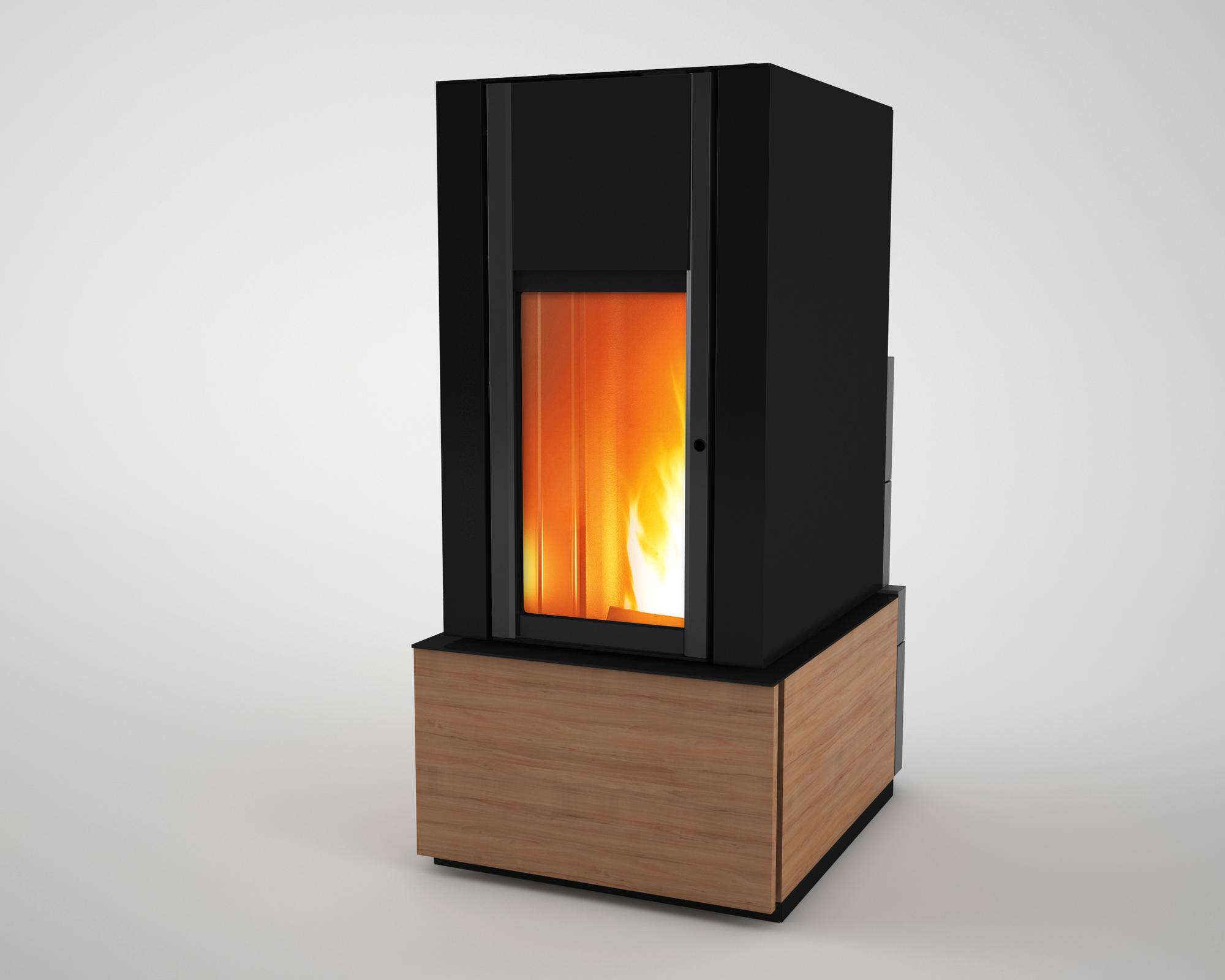

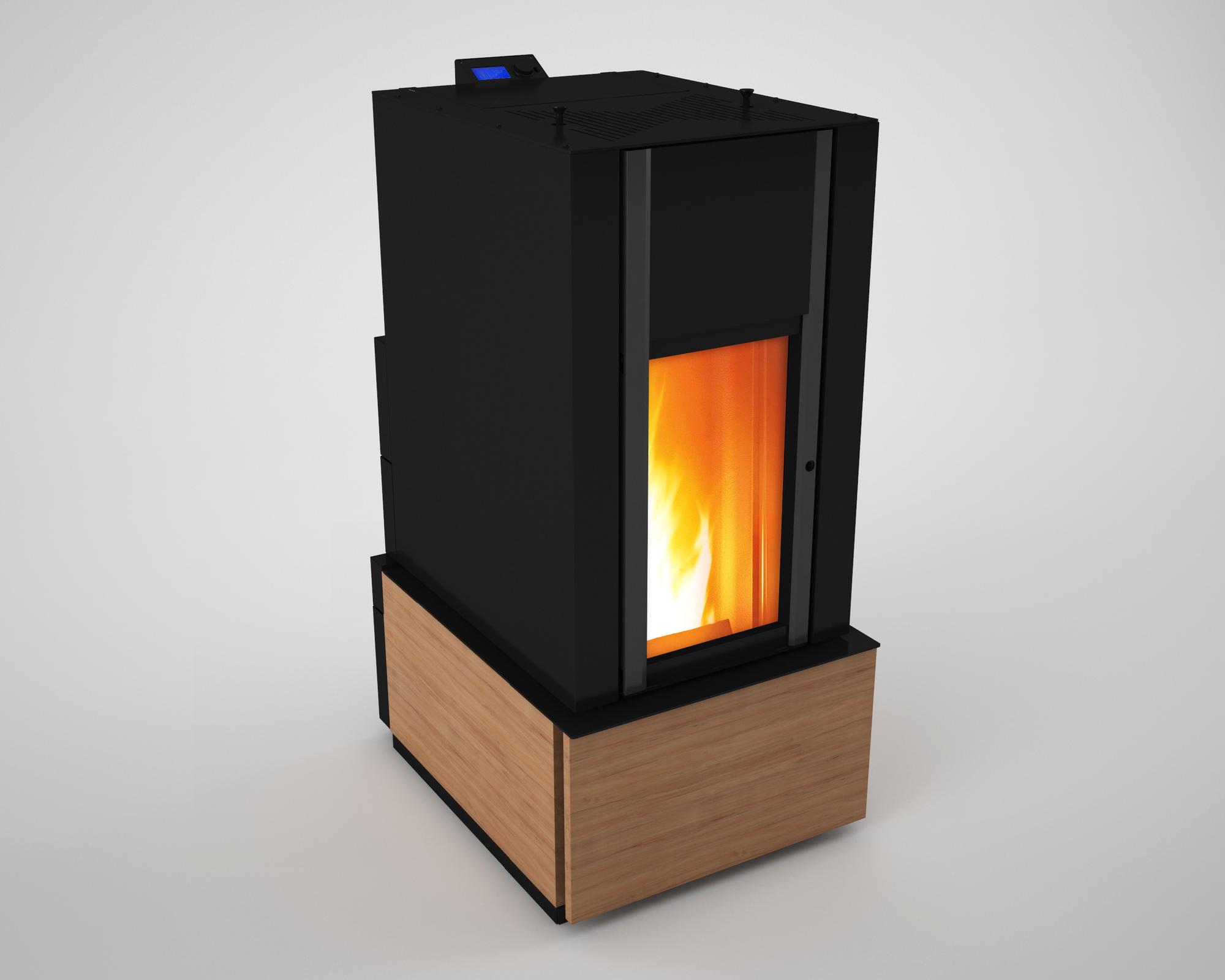

THYATERIA is a water system pellet stove with a stylish wood look design. combines aesthetics and functionality.
Color Option
Black
Our product provides efficiency
and economy with its high-performance body design
. It offers comfort to the user with rich
functions such as automatic fuel loading, automatic ignition, and remote control.
General Features
Technical Specifications
Documents
Images & Videos
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
MODEL
THYATERIA LITE-25
THYATERIA LITE-25
| Capacity kW | 5-25 |
| Width (A) mm | 560 |
| Length (B) mm | 750 |
| Height (C) mm | 1210 |
| Cold Water Inlet Height (D) mm | 210 |
| Hot Water Outlet Height (E) mm | 545 |
| Flue Outlet Height (F) mm | 180 |
| Flue Diameter mm | 80 |
| Flow – Return inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 196 |
| Water Capacity lt | 37 |
| Tank Capacity lt | 40 |
| Max Working Pressure bar | 3 |
| Test Pressure bar | 4.30 |
| Temperature Control Range °C | 35-85 |
| Max Working Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
