    Thermokoz | Techno
    Aqueous System

    Techno

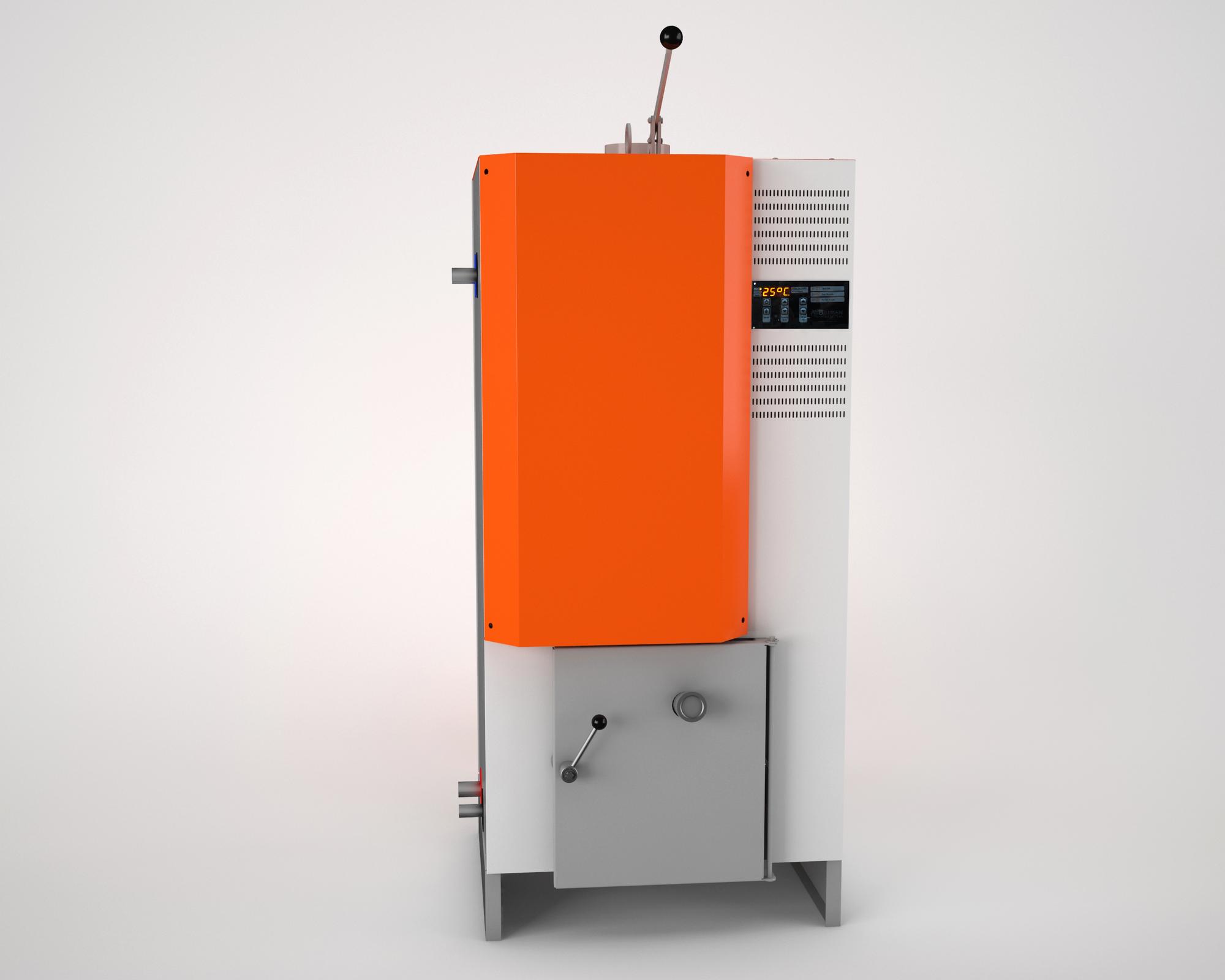

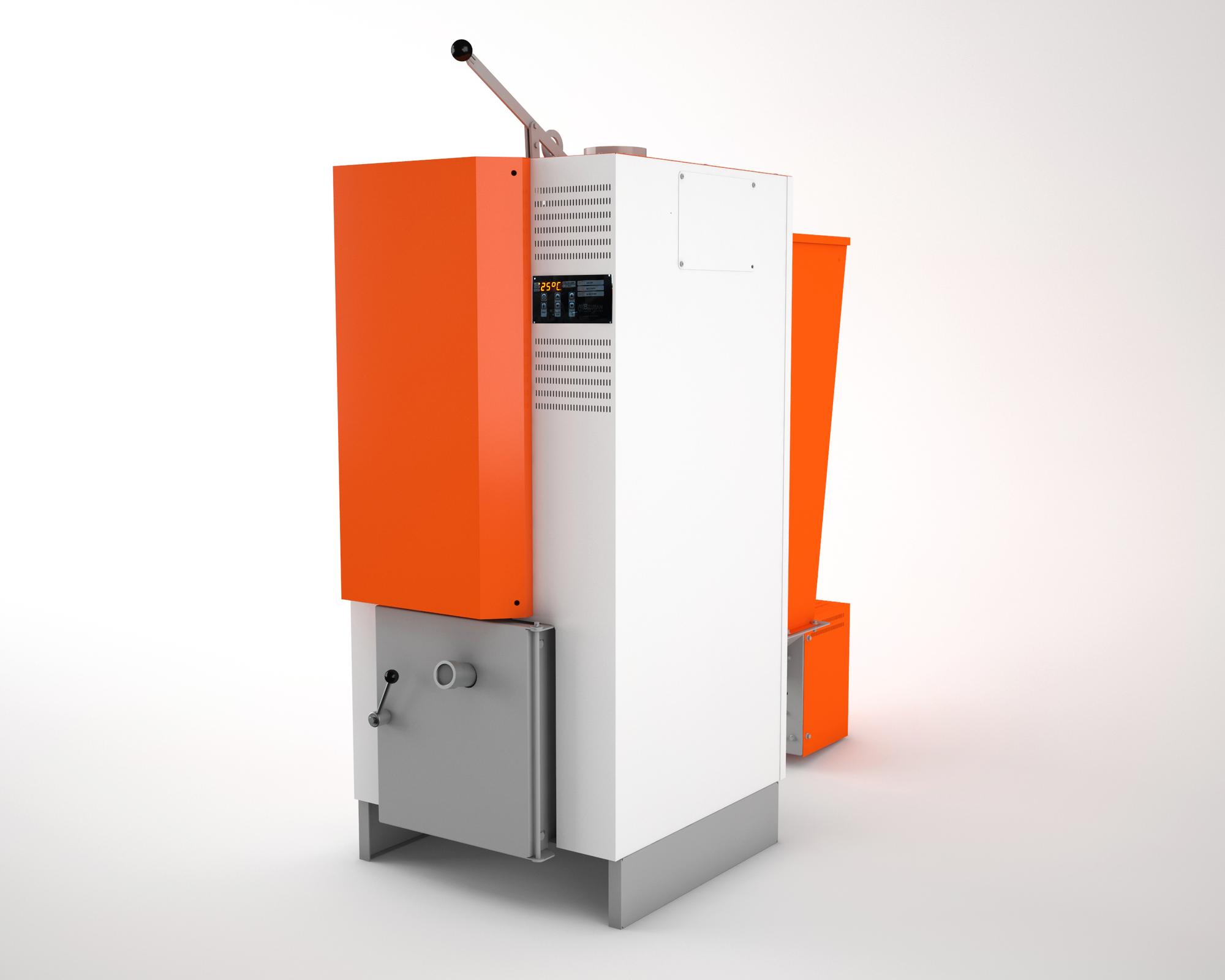

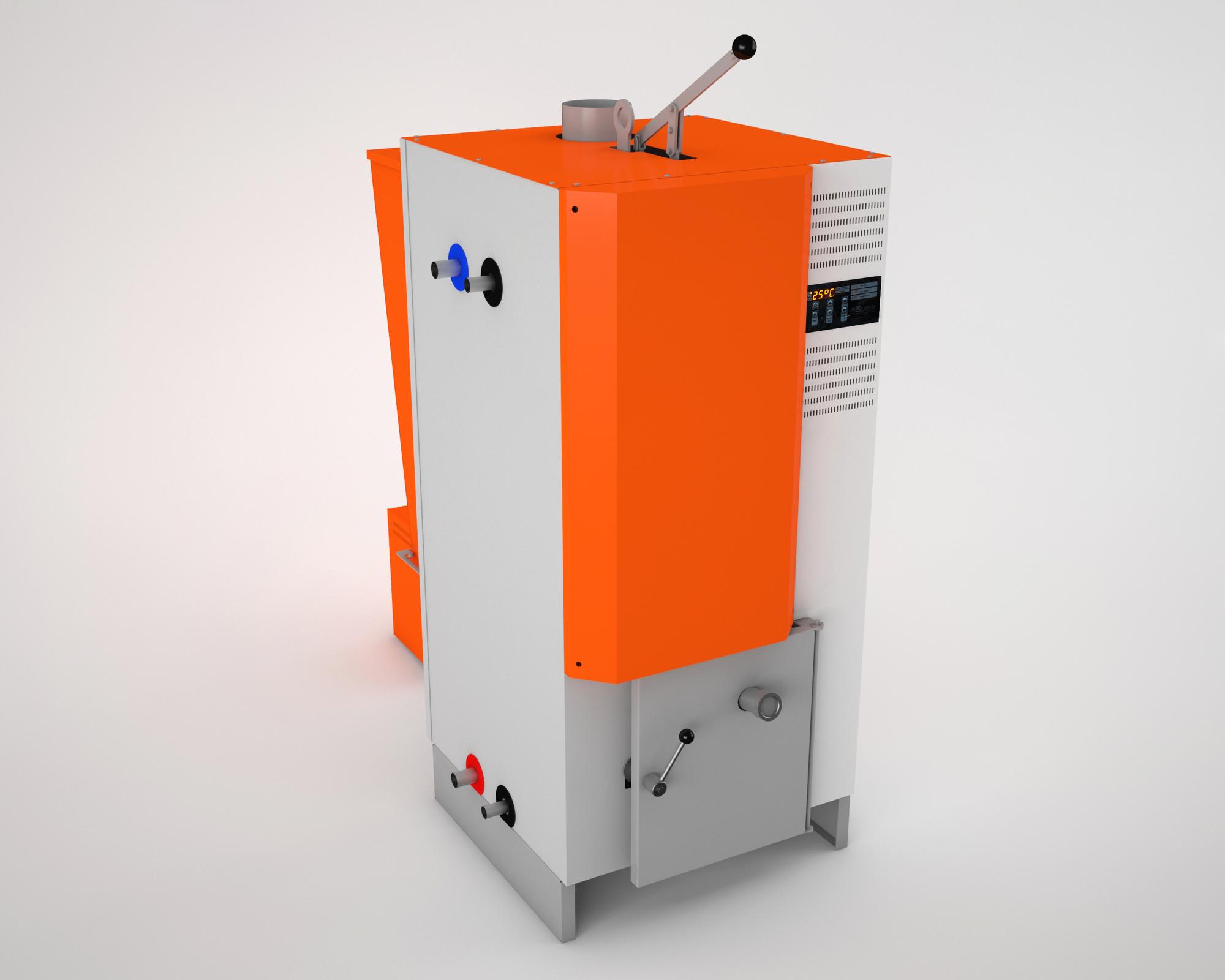

    The Techno Series coal boiler is designed for industrial heating applications, combining high efficiency with an elegant and robust structure. Its long-lasting steel body and strong glass wool and ceramic insulation provide durability, thermal stability, and reliable long-term operation.

    The system is managed via a digital control panel featuring fan speed adjustment, fuel feed motor protection, and temperature control with a room thermostat. Heat exchanger cleaning is performed easily through a manual lever, ensuring practical maintenance and sustained efficiency.

    In addition to coal, the Techno Series is capable of burning olive husk and nut shells in the Techno Bio-Pellet version, offering fuel flexibility for different applications. With its efficient combustion structure and simple control logic, Techno delivers a reliable and adaptable industrial boiler solution.

    Color Option

    Thermokoz | Techno Orange

    Techno Series Coal Boiler combines industrial durability with high-efficiency combustion technology, delivering reliable performance, thermal stability, and optimized heating for demanding applications.

    Digital control management, fuel flexibility with Bio-Pellet compatibility, and practical maintenance features ensure adaptable operation, consistent efficiency, and dependable industrial heating solutions.

    Whatsapp Support

    General Features

    Technical Specifications

    Documents

    Images & Videos

    Thermokoz | Techno
    By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.

    Automatic Fuel Loading

    Thermokoz | Techno
    Smoke pipe cleaning thanks to the special mechanism on the boiler, can be performed effortlessly manually with the help of a lever. This one this reduces cleaning time, increases efficiency and ensures a long service life. Provided.

    Easy Smoke Pipe Cleaning

    Thermokoz | Techno
    By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.

    Automatic Fuel Loading

    Thermokoz | Techno
    Smoke pipe cleaning thanks to the special mechanism on the boiler, can be performed effortlessly manually with the help of a lever. This one this reduces cleaning time, increases efficiency and ensures a long service life. Provided.

    Easy Smoke Pipe Cleaning

    Thermokoz | Techno
    By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.

    Automatic Fuel Loading

    Thermokoz | Techno
    Smoke pipe cleaning thanks to the special mechanism on the boiler, can be performed effortlessly manually with the help of a lever. This one this reduces cleaning time, increases efficiency and ensures a long service life. Provided.

    Easy Smoke Pipe Cleaning

    Thermokoz | Techno
    MODEL
    TECHNO 22
      TECHNO 30
      TECHNO 45
      TECHNO 60
      TECHNO 80
      TECHNO 100
      TECHNO 130
    Capacity kW 26
    Width (A) mm 1360
    Length (B) mm 680
    Height (C) mm 1505
    Cold Water Inlet Height (D) mm 200
    Hot Water Outlet Height (E) mm 1100
    Chimney Diameter mm 168
    Flow – Return inch 1”
    Expansion Outlet inch 1/2”
    Fill – Drain inch 1/2”
    Weight kg 240
    Water Capacity lt 80
    Chamber Capacity lt 150
    Max. Operating Pressure bar 3
    Test Pressure bar 4.30
    Temperature Control Range °C 35-85
    Max. Operating Temperature °C 85
    Reducer Motor Power W 250
    Operating Voltage and Frequency V/Hz 230V/50Hz
    Operating Current A 10
    Capacity kW 35
    Width (A) mm 730
    Length (B) mm 1470
    Height (C) mm 1740
    Cold Water Inlet Height (D) mm 200
    Hot Water Outlet Height (E) mm 1300
    Chimney Diameter mm 168
    Flow – Return inch 1”
    Expansion Outlet inch 1/2”
    Fill – Drain inch 1/2”
    Weight kg 330
    Water Capacity lt 125
    Chamber Capacity lt 150
    Max. Operating Pressure bar 3
    Test Pressure bar 4.30
    Temperature Control Range °C 35-85
    Max. Operating Temperature °C 85
    Reducer Motor Power W 250
    Operating Voltage and Frequency V/Hz 230V/50Hz
    Operating Current A 10
    Capacity kW 52
    Width (A) mm 730
    Length (B) mm 1470
    Height (C) mm 1740
    Cold Water Inlet Height (D) mm 200
    Hot Water Outlet Height (E) mm 1300
    Chimney Diameter mm 168
    Flow – Return inch 1”
    Expansion Outlet inch 1/2”
    Fill – Drain inch 1/2”
    Weight kg 340
    Water Capacity lt 120
    Chamber Capacity lt 150
    Max. Operating Pressure bar 3
    Test Pressure bar 4.30
    Temperature Control Range °C 35-85
    Max. Operating Temperature °C 85
    Reducer Motor Power W 250
    Operating Voltage and Frequency V/Hz 230V/50Hz
    Operating Current A 10
    Capacity kW 70
    Width (A) mm 830
    Length (B) mm 1730
    Height (C) mm 1750
    Cold Water Inlet Height (D) mm 200
    Hot Water Outlet Height (E) mm 1350
    Chimney Diameter mm 220
    Flow – Return inch 1 1/2”
    Expansion Outlet inch 1”
    Fill – Drain inch 1”
    Weight kg 440
    Water Capacity lt 160
    Chamber Capacity lt 240
    Max. Operating Pressure bar 3
    Test Pressure bar 4.30
    Temperature Control Range °C 35-85
    Max. Operating Temperature °C 85
    Reducer Motor Power W 250
    Operating Voltage and Frequency V/Hz 230V/50Hz
    Operating Current A 10
    Capacity kW 93
    Width (A) mm 830
    Length (B) mm 1730
    Height (C) mm 1870
    Cold Water Inlet Height (D) mm 200
    Hot Water Outlet Height (E) mm 1450
    Chimney Diameter mm 220
    Flow – Return inch 2”
    Expansion Outlet inch 1”
    Fill – Drain inch 1”
    Weight kg 480
    Water Capacity lt 185
    Chamber Capacity lt 240
    Max. Operating Pressure bar 3
    Test Pressure bar 4.30
    Temperature Control Range °C 35-85
    Max. Operating Temperature °C 85
    Reducer Motor Power W 250
    Operating Voltage and Frequency V/Hz 230V/50Hz
    Operating Current A 10
    Capacity kW 116
    Width (A) mm 890
    Length (B) mm 1650
    Height (C) mm 1900
    Cold Water Inlet Height (D) mm 210
    Hot Water Outlet Height (E) mm 1470
    Chimney Diameter mm 250
    Flow – Return inch 2 1/2
    Expansion Outlet inch 1 1/2
    Fill – Drain inch 1
    Weight kg 750
    Water Capacity lt 260
    Chamber Capacity lt 240
    Max. Operating Pressure bar 3
    Test Pressure bar 4.3
    Temperature Control Range °C 35-85
    Max. Operating Temperature °C 85
    Reducer Motor Power W 250
    Operating Voltage and Frequency V/Hz 230V/50Hz
    Operating Current A 10
    Capacity kW 151
    Width (A) mm 890
    Length (B) mm 1650
    Height (C) mm 1900
    Cold Water Inlet Height (D) mm 210
    Hot Water Outlet Height (E) mm 1470
    Chimney Diameter mm 250
    Flow – Return inch 2 1/2
    Expansion Outlet inch 1 1/2
    Fill – Drain inch 1
    Weight kg 790
    Water Capacity lt 190
    Chamber Capacity lt 240
    Max. Operating Pressure bar 3
    Test Pressure bar 4.3
    Temperature Control Range °C 35-85
    Max. Operating Temperature °C 85
    Reducer Motor Power W 250
    Operating Voltage and Frequency V/Hz 230V/50Hz
    Operating Current A 10
    Thermokoz | Techno PDF
    User Guide
    Thermokoz | Techno PDF
    Maintenance and Service Manual
    Thermokoz | Techno PDF
    Assembly and Delivery Guide
    Thermokoz | Techno PDF
    Technical Drawing
    Thermokoz | Techno
    Download
    Thermokoz | Techno
    Download
    Thermokoz | Techno
    Download
