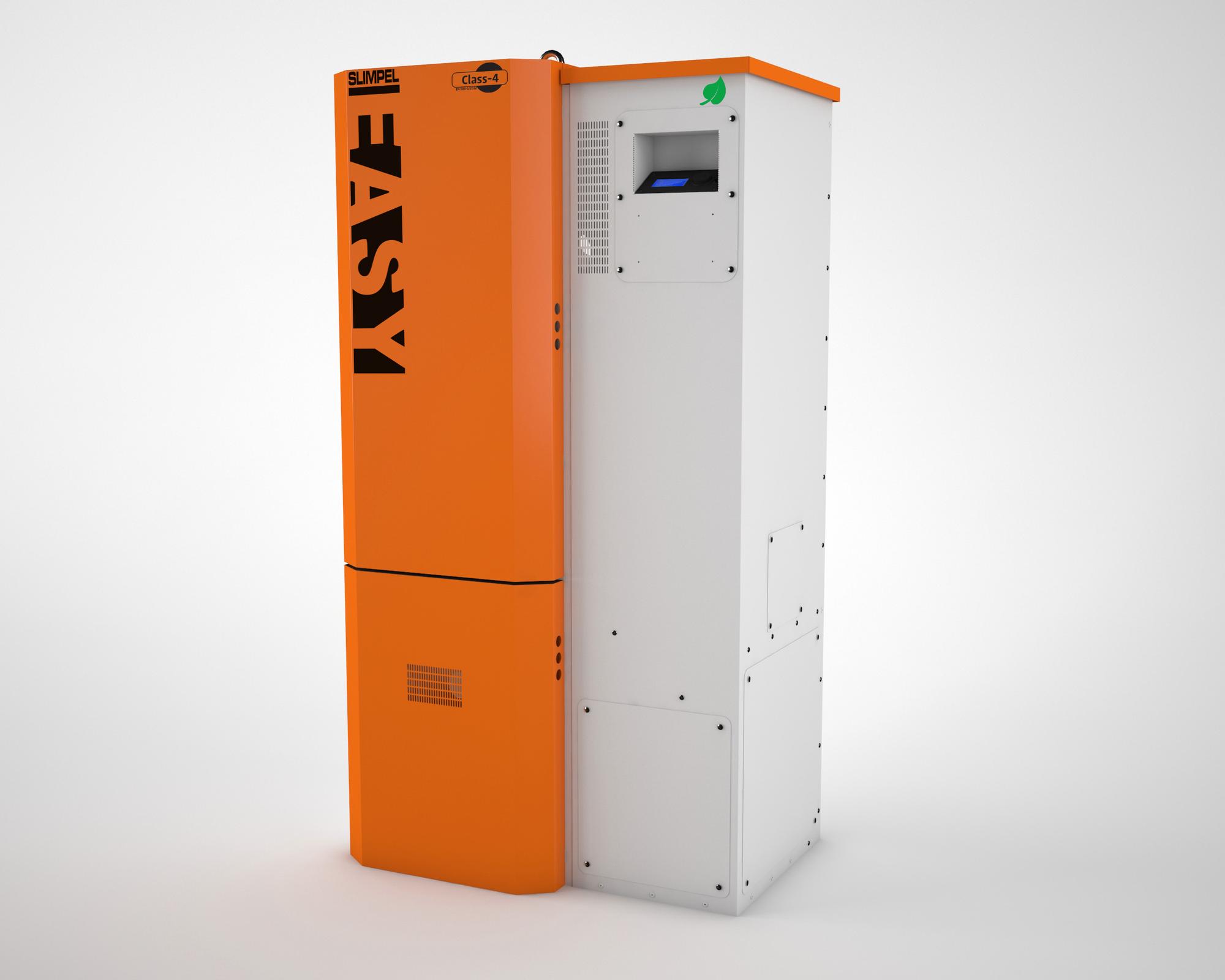

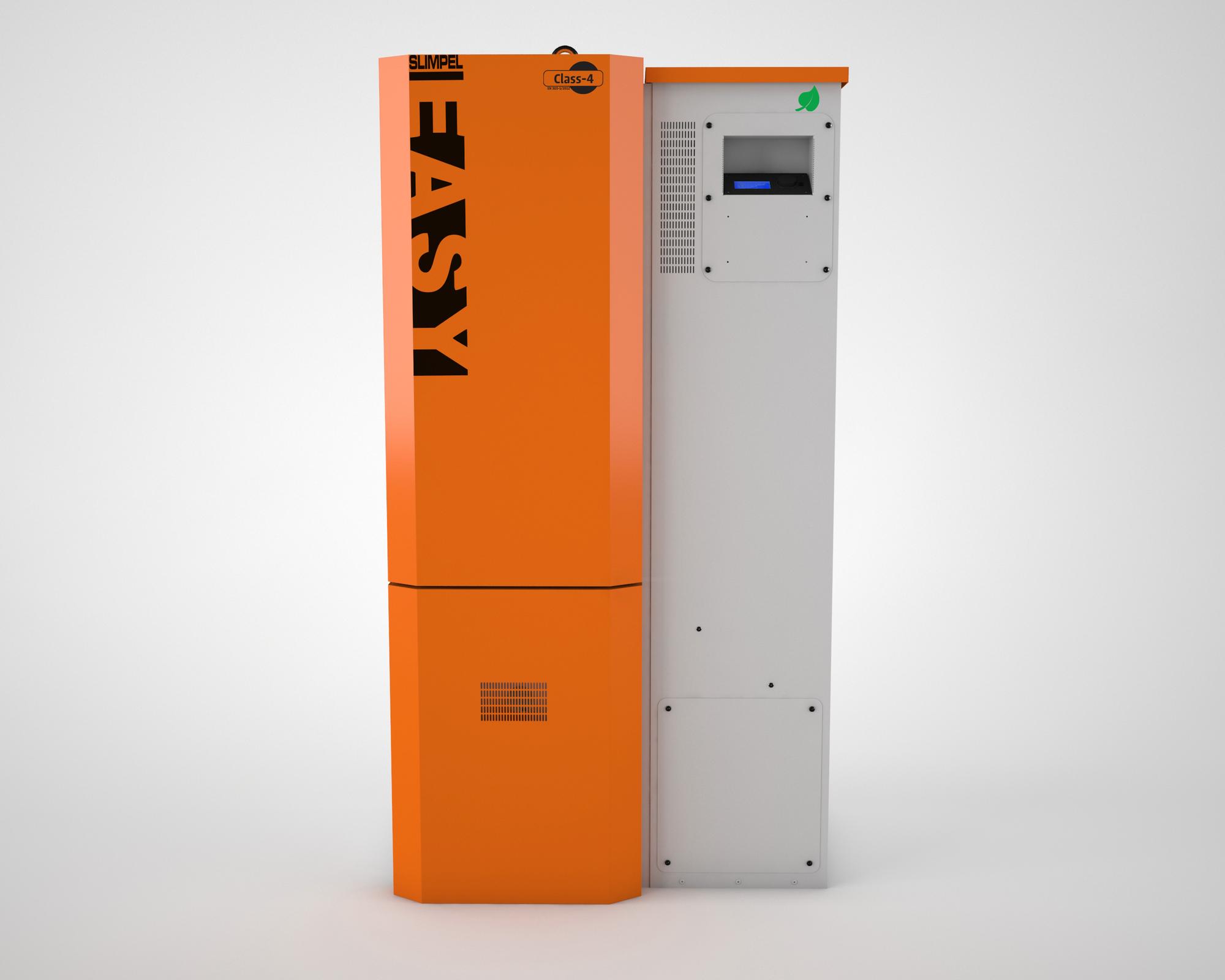

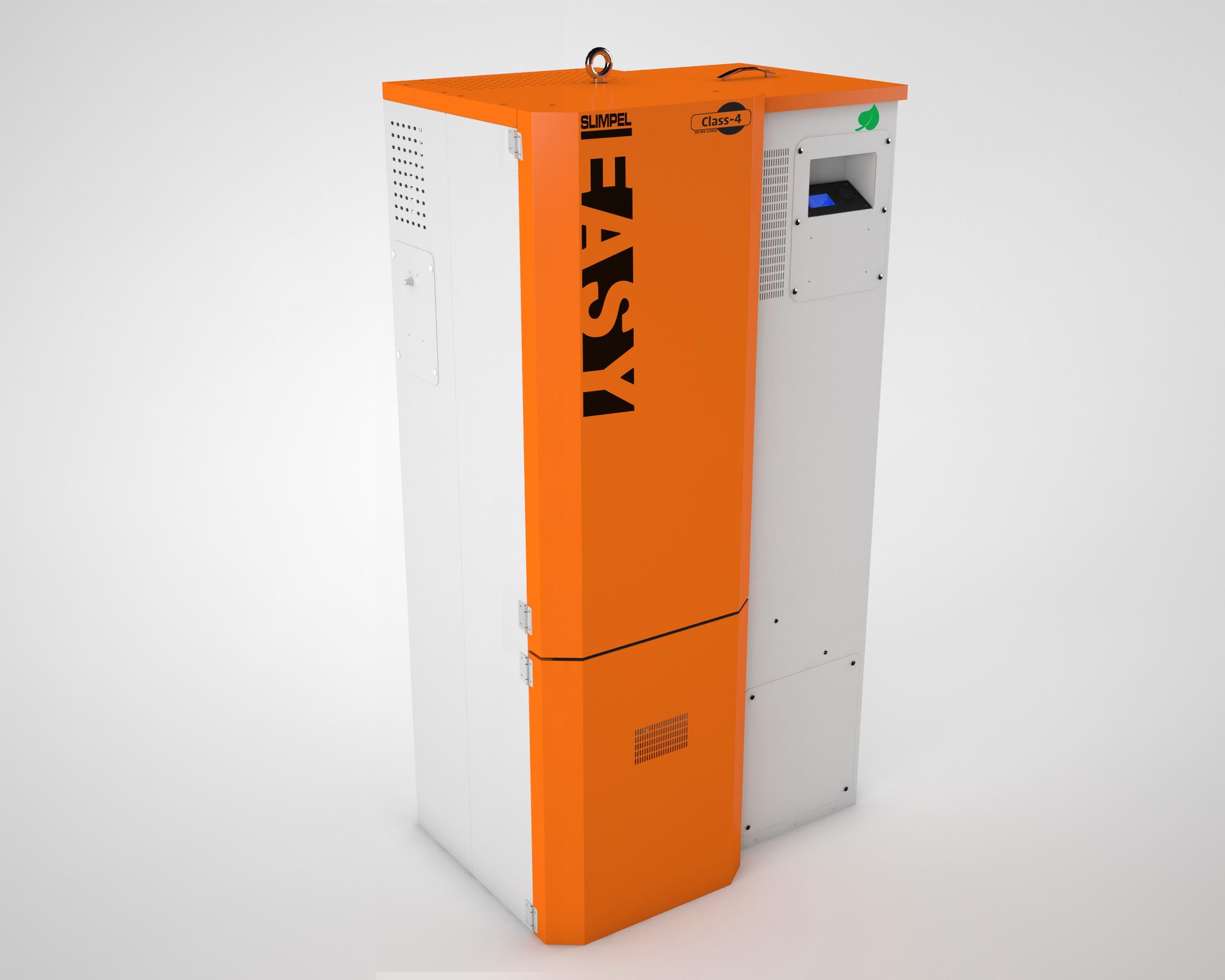

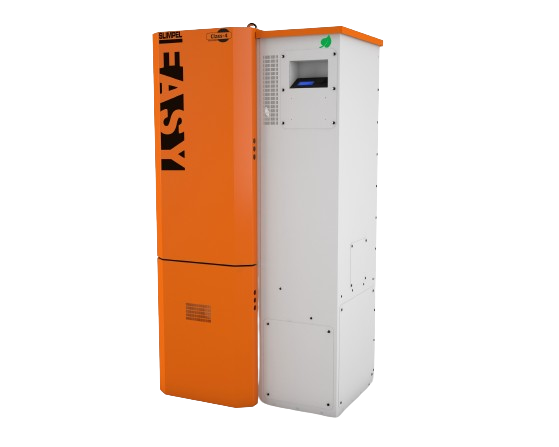

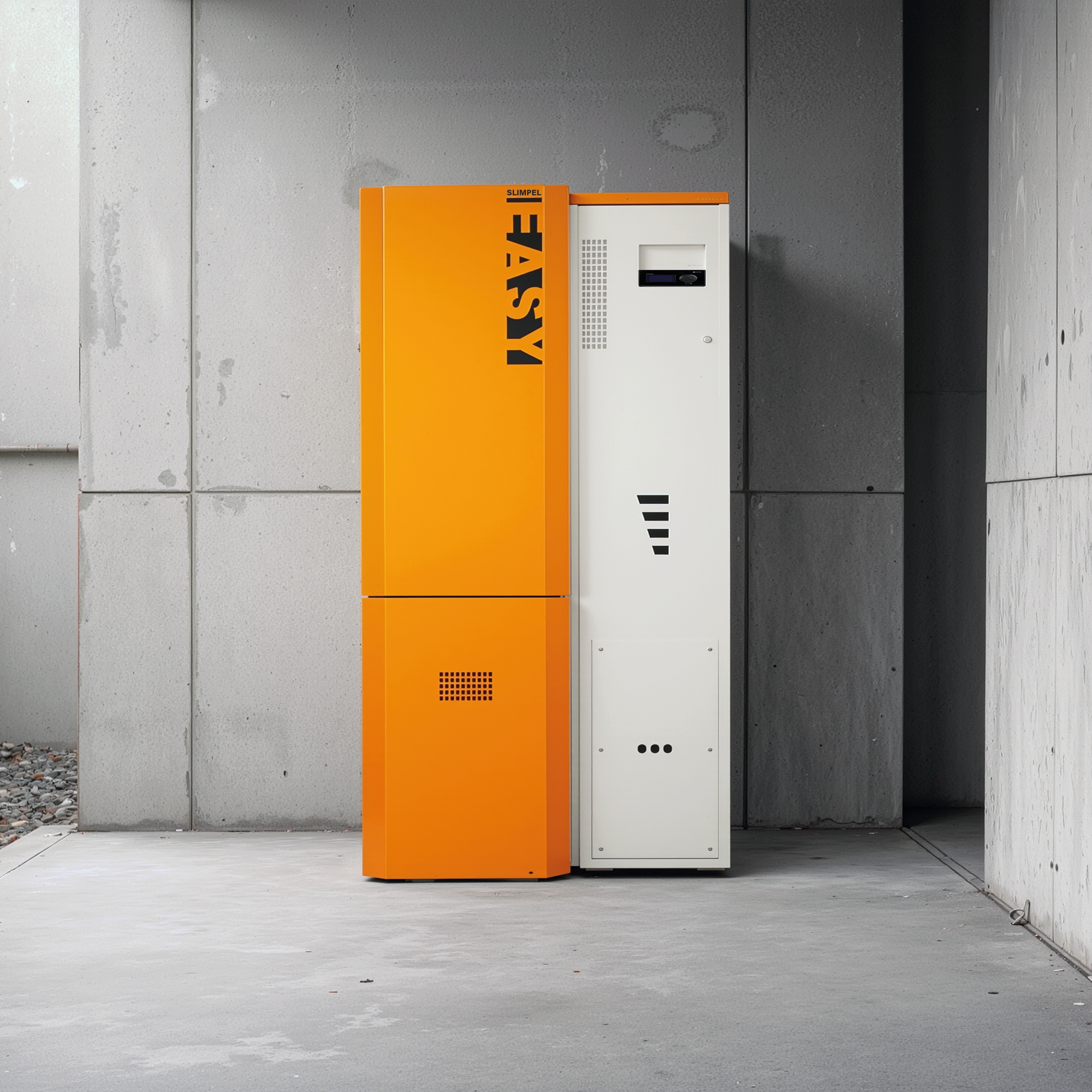

SLIMPEL is a high-efficiency pellet stove with an elegant design that adapts to narrow spaces and an automatic operation system.
The chrome-spring flue pipes create turbulence in the combustion chamber, ensuring maximum efficiency.
With its environmentally friendly structure, high quality, and economical price advantage, it is an ideal heating solution.
Orange
Our Slimpel device has a system with features such as automatic fuel loading, automatic ignition, easy flue pipe cleaning, and automatic ash removal.
| Capacity kW | 5-17 |
| Width (A) mm | 810 |
| Length (B) mm | 570 |
| Height (C) mm | 1570 |
| Hot Water Outlet Height (E) mm | 430 |
| Cold Water Inlet Height (D) mm | 1230 |
| Flue Outlet Height (F) mm | 1380 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Imbiss Outlet inches | 1/2 |
| Fill – Drain inches | 1/2 |
| Weight kg | 184 |
| Water Capacity liters | 35 |
| Chamber Capacity liters | 115 |
| Max. Working Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 38-85 |
| Max. Working Temperature °C | 90 |
| Reducer Power W | 40 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 16 |
| Fuel Consumption kg/h | 1.1-3.4 |
| Capacity kW | 5-25 |
| Width (A) mm | 835 |
| Length (B) mm | 600 |
| Height (C) mm | 1660 |
| Hot Water Outlet Height (E) mm | 430 |
| Cold Water Inlet Height (D) mm | 1290 |
| Flue Outlet Height (F) mm | 1440 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Imbiss Outlet inches | 1/2 |
| Fill – Drain inches | 1/2 |
| Weight kg | 206 |
| Water Capacity liters | 45 |
| Chamber Capacity liters | 130 |
| Max. Working Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 38-85 |
| Max. Working Temperature °C | 90 |
| Reducer Power W | 40 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 16 |
| Fuel Consumption kg/h | 1.1-5 |
| Capacity kW | 5-40 |
| Width (A) mm | 950 |
| Length (B) mm | 720 |
| Height (C) mm | 1890 |
| Hot Water Outlet Height (E) mm | 440 |
| Cold Water Inlet Height (D) mm | 1475 |
| Flue Outlet Height (F) mm | 1630 |
| Flue Diameter mm | 127 |
| Flow – Return inches | 1 |
| Imbiss Outlet inches | 1/2 |
| Fill – Drain inches | 1/2 |
| Weight kg | 287 |
| Water Capacity liters | 67 |
| Chamber Capacity liters | 170 |
| Max. Working Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 38-85 |
| Max. Working Temperature °C | 90 |
| Reducer Power W | 40 |
| Fan Power W | 70 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 16 |
| Fuel Consumption kg/h | 1.1-6.8 |
| Capacity kW | 15-60 |
| Width (A) mm | 1060 |
| Length (B) mm | 840 |
| Height (C) mm | 1920 |
| Hot Water Outlet Height (E) mm | 450 |
| Cold Water Inlet Height (D) mm | 1530 |
| Flue Outlet Height (F) mm | 1225 |
| Flue Diameter mm | 200 |
| Flow – Return inches | 1 1/2 |
| Imbiss Outlet inches | 1/2 |
| Fill – Drain inches | 1/2 |
| Weight kg | 360 |
| Water Capacity liters | 100 |
| Chamber Capacity liters | 175 |
| Max. Working Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 38-85 |
| Max. Working Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 120 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 16 |
| Fuel Consumption kg/h | 3-12 |
