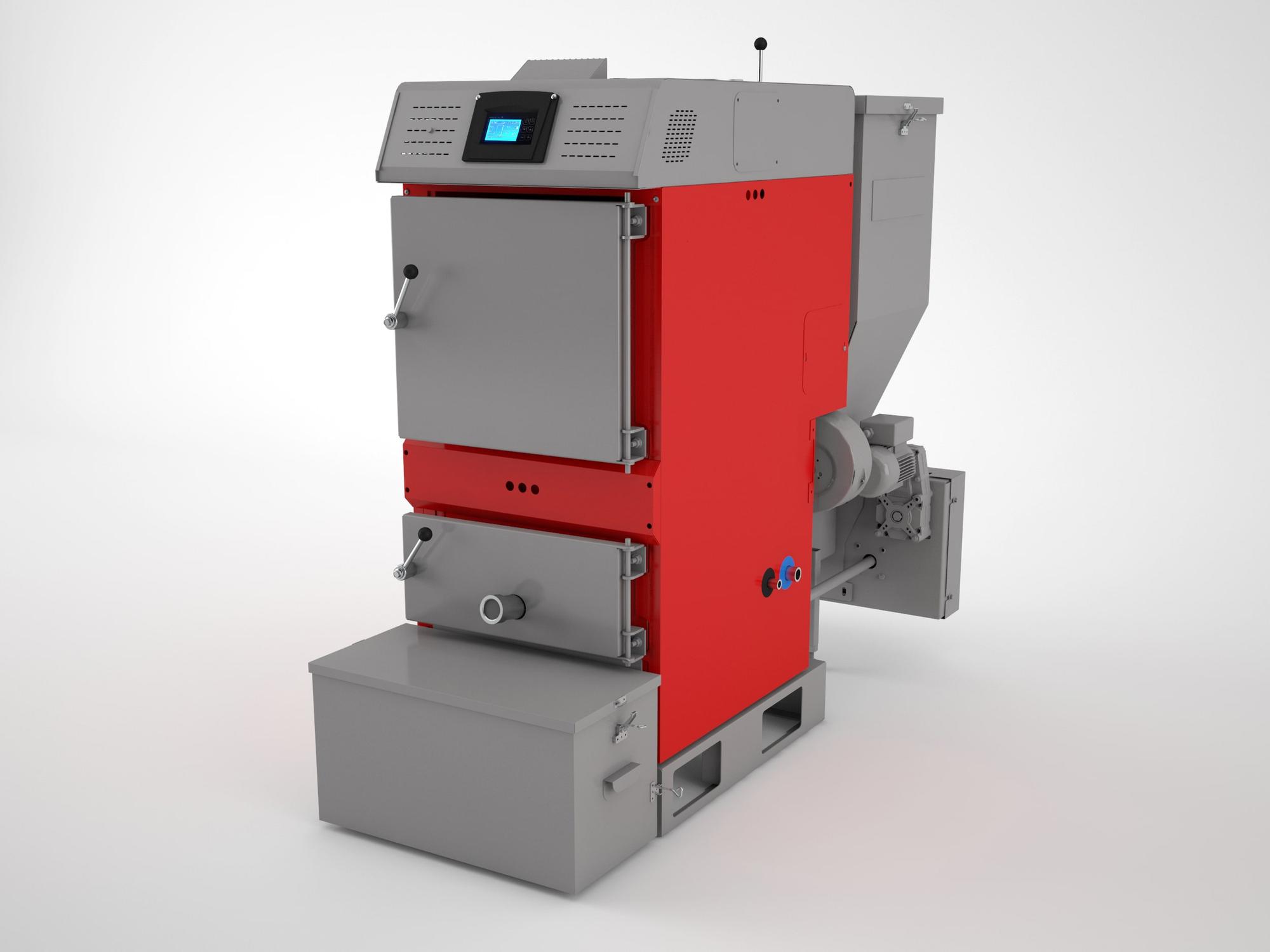

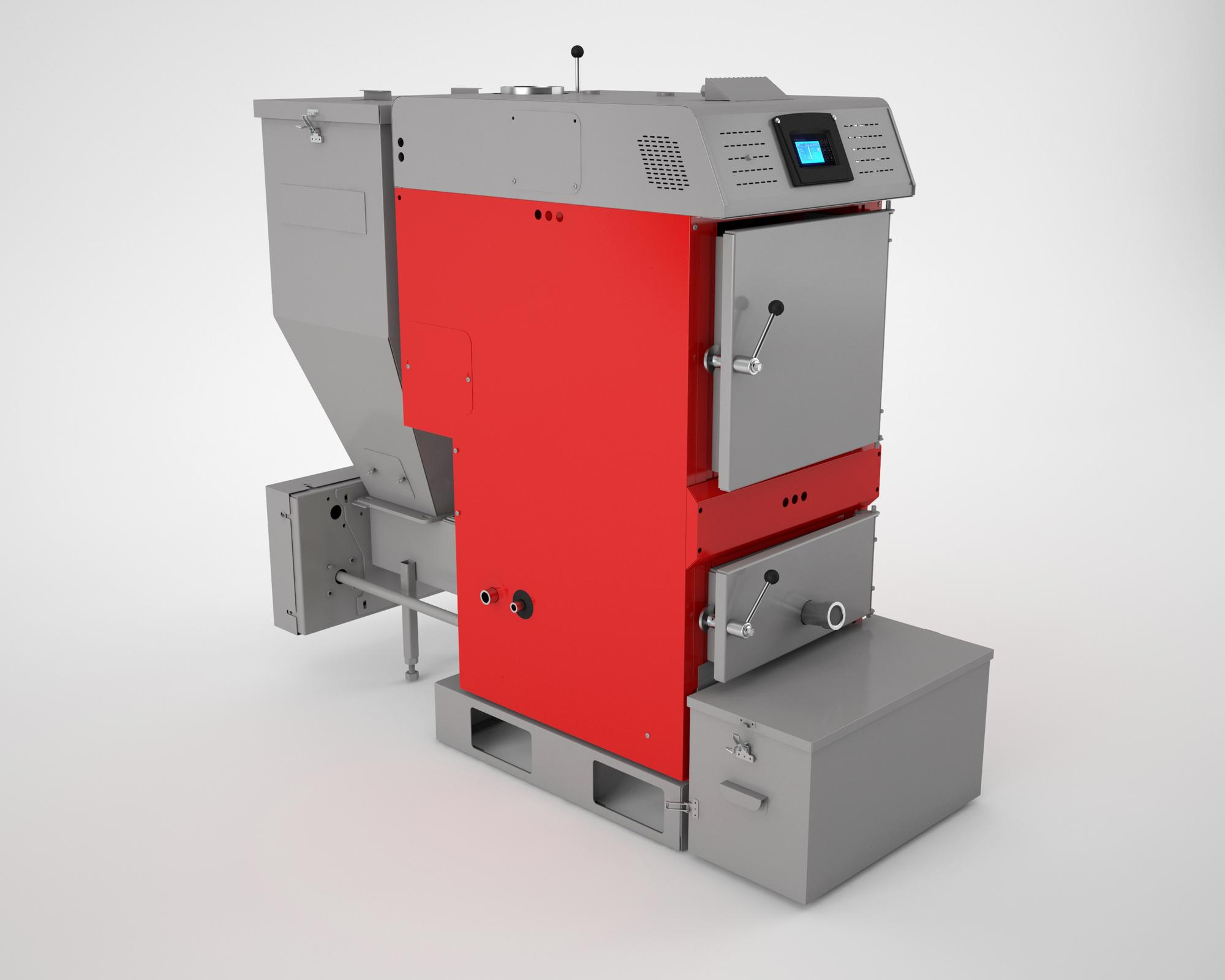

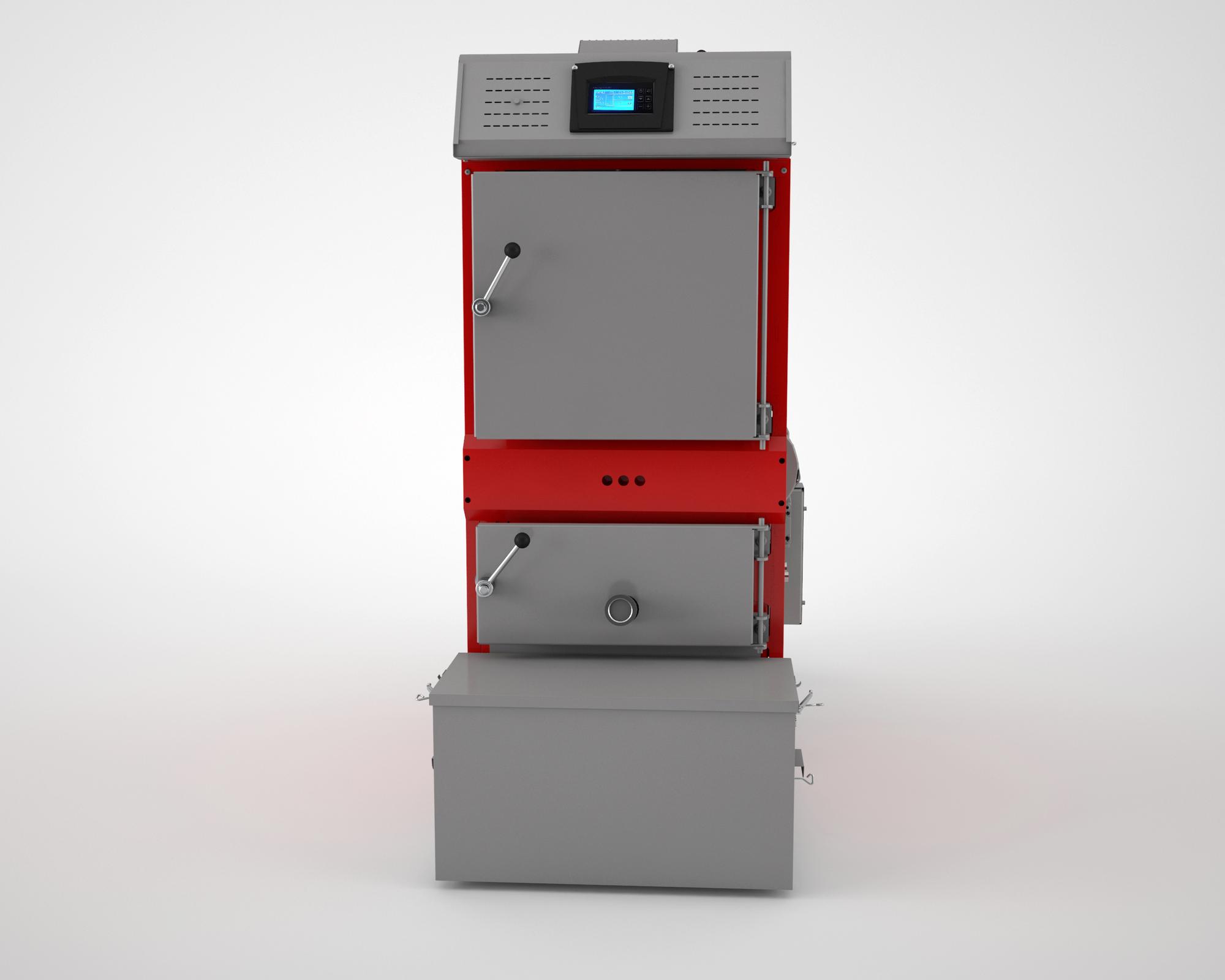

    Thermokoz | Pel (Ash Sticker)
    Pelet

    Pel (Ash Sticker)

    PEL is a safe pellet boiler that eliminates the risk of backfire thanks to its staged loading system.


    Its high-efficiency body can burn 6-8-10 mm pellets, providing maximum heating performance.


    With its advanced mechanical and electronic features, it offers a user-friendly, reliable, and efficient heating solution.

    Color Option

    Thermokoz | Pel (Ash Sticker) Red

    Our product provides economy with its high-efficiency body design.


    With rich features such as automatic loading, automatic ash removal, automatic mixing, automatic ignition system, etc., it offers comfort to the user.

    Whatsapp Support

    General Features

    Technical Specifications

    Documents

    Images & Videos

    Thermokoz | Pel (Ash Sticker)
    By rotating the auger with the help of the electronic fuel supply motor It offers the possibility of ‘Automatic Refuelling’. In this way, both from your place You can warm up without getting up and with balanced fuel consumption.

    Automatic Refuelling

    Thermokoz | Pel (Ash Sticker)
    Of course, you do not need to ignite the loaded fuel with your hand. Device fuelling level automatically according to the temperature value you set. will load, then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.

    Automatic Ignition

    Thermokoz | Pel (Ash Sticker)
    Automatic Mixing Our featured hob, 100% efficient combustion provides. Thanks to its innovative design, a powerful and effective warm-up at all times minimises energy losses. High efficiency, maximum Stay one step ahead for performance now!

    Automatic Mixing

    Thermokoz | Pel (Ash Sticker)
    Where does the waste from all these cleared areas go? That's where the answer is given by the ‘Automatic Ash Removal’ system. Cleaned ash and we transfer the pellet residues to the ash bin located outside the device. This one so that the ashtray can be used at regular intervals in a more sterilised and hygienic way you can empty it.

    Automatic Ash Extraction

    Thermokoz | Pel (Ash Sticker)
    With the boiler sensor and boiler pump start-up feature, your boiler is now guaranteed to produce hot water in summer and winter! Warm all year round, in all seasons This smart system, which meets your water needs, offers energy efficiency and superior makes your life easier with its performance. Always enjoy hot water Take it out, don't compromise on your comfort!

    Boiler Integration

    Thermokoz | Pel (Ash Sticker)
    What about the electronic board that controls all this equipment? wirelessly control the device, you can control the device fully automatically. manage and set up a weekly programme and automatic work schedule you can create.

    Remote Control

    Thermokoz | Pel (Ash Sticker)
    By rotating the auger with the help of the electronic fuel supply motor It offers the possibility of ‘Automatic Refuelling’. In this way, both from your place You can warm up without getting up and with balanced fuel consumption.

    Automatic Refuelling

    Thermokoz | Pel (Ash Sticker)
    Of course, you do not need to ignite the loaded fuel with your hand. Device fuelling level automatically according to the temperature value you set. will load, then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.

    Automatic Ignition

    Thermokoz | Pel (Ash Sticker)
    Automatic Mixing Our featured hob, 100% efficient combustion provides. Thanks to its innovative design, a powerful and effective warm-up at all times minimises energy losses. High efficiency, maximum Stay one step ahead for performance now!

    Automatic Mixing

    Thermokoz | Pel (Ash Sticker)
    Where does the waste from all these cleared areas go? That's where the answer is given by the ‘Automatic Ash Removal’ system. Cleaned ash and we transfer the pellet residues to the ash bin located outside the device. This one so that the ashtray can be used at regular intervals in a more sterilised and hygienic way you can empty it.

    Automatic Ash Extraction

    Thermokoz | Pel (Ash Sticker)
    With the boiler sensor and boiler pump start-up feature, your boiler is now guaranteed to produce hot water in summer and winter! Warm all year round, in all seasons This smart system, which meets your water needs, offers energy efficiency and superior makes your life easier with its performance. Always enjoy hot water Take it out, don't compromise on your comfort!

    Boiler Integration

    Thermokoz | Pel (Ash Sticker)
    What about the electronic board that controls all this equipment? wirelessly control the device, you can control the device fully automatically. manage and set up a weekly programme and automatic work schedule you can create.

    Remote Control

    Thermokoz | Pel (Ash Sticker)
    By rotating the auger with the help of the electronic fuel supply motor It offers the possibility of ‘Automatic Refuelling’. In this way, both from your place You can warm up without getting up and with balanced fuel consumption.

    Automatic Refuelling

    Thermokoz | Pel (Ash Sticker)
    Of course, you do not need to ignite the loaded fuel with your hand. Device fuelling level automatically according to the temperature value you set. will load, then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.

    Automatic Ignition

    Thermokoz | Pel (Ash Sticker)
    Automatic Mixing Our featured hob, 100% efficient combustion provides. Thanks to its innovative design, a powerful and effective warm-up at all times minimises energy losses. High efficiency, maximum Stay one step ahead for performance now!

    Automatic Mixing

    Thermokoz | Pel (Ash Sticker)
    Where does the waste from all these cleared areas go? That's where the answer is given by the ‘Automatic Ash Removal’ system. Cleaned ash and we transfer the pellet residues to the ash bin located outside the device. This one so that the ashtray can be used at regular intervals in a more sterilised and hygienic way you can empty it.

    Automatic Ash Extraction

    Thermokoz | Pel (Ash Sticker)
    With the boiler sensor and boiler pump start-up feature, your boiler is now guaranteed to produce hot water in summer and winter! Warm all year round, in all seasons This smart system, which meets your water needs, offers energy efficiency and superior makes your life easier with its performance. Always enjoy hot water Take it out, don't compromise on your comfort!

    Boiler Integration

    Thermokoz | Pel (Ash Sticker)
    What about the electronic board that controls all this equipment? wirelessly control the device, you can control the device fully automatically. manage and set up a weekly programme and automatic work schedule you can create.

    Remote Control

    Thermokoz | Pel (Ash Sticker)
    MODEL
    PEL 20
      PEL 25
      PEL 40
      PEL 60
      PEL 80
      PEL 100
    Capacity kW 23
    Width (A) mm 710
    Length (B) mm 1760
    Height (C) mm 1350
    Cold Water Inlet Height (D) mm 420
    Hot Water Outlet Height (E) mm 1280
    Flue Gas Outlet Height (F) mm 1280
    Flue Diameter mm 140
    Flow – Return inches 1
    Exhaust Outlet inches 1
    Fill – Empty inches 1/2
    Weight kg 435
    Water Capacity lt 70
    Tank Capacity lt 155
    Max. Operating Pressure bar 3
    Test Pressure bar 4.3
    Temperature Control Range °C 45-85
    Max. Operating Temperature °C 90
    Reducer Power W 180
    Fan Power W 85
    Ash Box Capacity l 50
    Operating Voltage and Frequency V/Hz 230/50
    Operating Current A 16
    Capacity kW 29
    Width (A) mm 710
    Length (B) mm 1760
    Height (C) mm 1430
    Cold Water Inlet Height (D) mm 420
    Hot Water Outlet Height (E) mm 1400
    Flue Gas Outlet Height (F) mm 1400
    Flue Diameter mm 140
    Flow – Return inches 1
    Exhaust Outlet inches 1
    Fill – Empty inches 1/2
    Weight kg 464
    Water Capacity lt 90
    Tank Capacity lt 155
    Max. Operating Pressure bar 3
    Test Pressure bar 4.3
    Temperature Control Range °C 45-85
    Max. Operating Temperature °C 90
    Reducer Power W 180
    Fan Power W 85
    Ash Box Capacity l 50
    Operating Voltage and Frequency V/Hz 230/50
    Operating Current A 16
    Capacity kW 46
    Width (A) mm 710
    Length (B) mm 1760
    Height (C) mm 1530
    Cold Water Inlet Height (D) mm 420
    Hot Water Outlet Height (E) mm 1453
    Flue Gas Outlet Height (F) mm 1453
    Flue Diameter mm 140
    Flow – Return inches 1
    Exhaust Outlet inches 1
    Fill – Empty inches 1/2
    Weight kg 475
    Water Capacity lt 110
    Tank Capacity lt 155
    Max. Operating Pressure bar 3
    Test Pressure bar 4.3
    Temperature Control Range °C 45-85
    Max. Operating Temperature °C 90
    Reducer Power W 180
    Fan Power W 85
    Ash Box Capacity l 50
    Operating Voltage and Frequency V/Hz 230/50
    Operating Current A 16
    Capacity kW 69
    Width (A) mm 780
    Length (B) mm 1970
    Height (C) mm 1450
    Cold Water Inlet Height (D) mm 390
    Hot Water Outlet Height (E) mm 1402
    Flue Gas Outlet Height (F) mm 1402
    Flue Diameter mm 200
    Flow – Return inches 1 1/2
    Exhaust Outlet inches 1
    Fill – Empty inches 1/2
    Weight kg 600
    Water Capacity lt 135
    Tank Capacity lt 180
    Max. Operating Pressure bar 3
    Test Pressure bar 4.3
    Temperature Control Range °C 45-85
    Max. Operating Temperature °C 90
    Reducer Power W 180
    Fan Power W 85
    Ash Box Capacity l 50
    Operating Voltage and Frequency V/Hz 230/50
    Operating Current A 16
    Capacity kW 93
    Width (A) mm 780
    Length (B) mm 1970
    Height (C) mm 1520
    Cold Water Inlet Height (D) mm 390
    Hot Water Outlet Height (E) mm 1460
    Flue Gas Outlet Height (F) mm 1460
    Flue Diameter mm 200
    Flow – Return inches 2
    Exhaust Outlet inches 1
    Fill – Empty inches 1/2
    Weight kg 650
    Water Capacity lt 165
    Tank Capacity lt 180
    Max. Operating Pressure bar 3
    Test Pressure bar 4.3
    Temperature Control Range °C 45-85
    Max. Operating Temperature °C 90
    Reducer Power W 180
    Fan Power W 105
    Ash Box Capacity l 50
    Operating Voltage and Frequency V/Hz 230/50
    Operating Current A 16
    Capacity kW 116
    Width (A) mm 780
    Length (B) mm 1970
    Height (C) mm 1740
    Cold Water Inlet Height (D) mm 550
    Hot Water Outlet Height (E) mm 1720
    Flue Gas Outlet Height (F) mm 1720
    Flue Diameter mm 220
    Flow – Return inches 2
    Exhaust Outlet inches 1
    Fill – Empty inches 1
    Weight kg 720
    Water Capacity lt 190
    Tank Capacity lt 220
    Max. Operating Pressure bar 3
    Test Pressure bar 4.3
    Temperature Control Range °C 45-85
    Max. Operating Temperature °C 90
    Reducer Power W 180
    Fan Power W 105
    Ash Box Capacity l 50
    Operating Voltage and Frequency V/Hz 230/50
    Operating Current A 16
    Thermokoz | Pel (Ash Sticker) PDF
    Technical Drawing
    Thermokoz | Pel (Ash Sticker)
    Download
    Thermokoz | Pel (Ash Sticker)
    Download
    Thermokoz | Pel (Ash Sticker)
    Download
