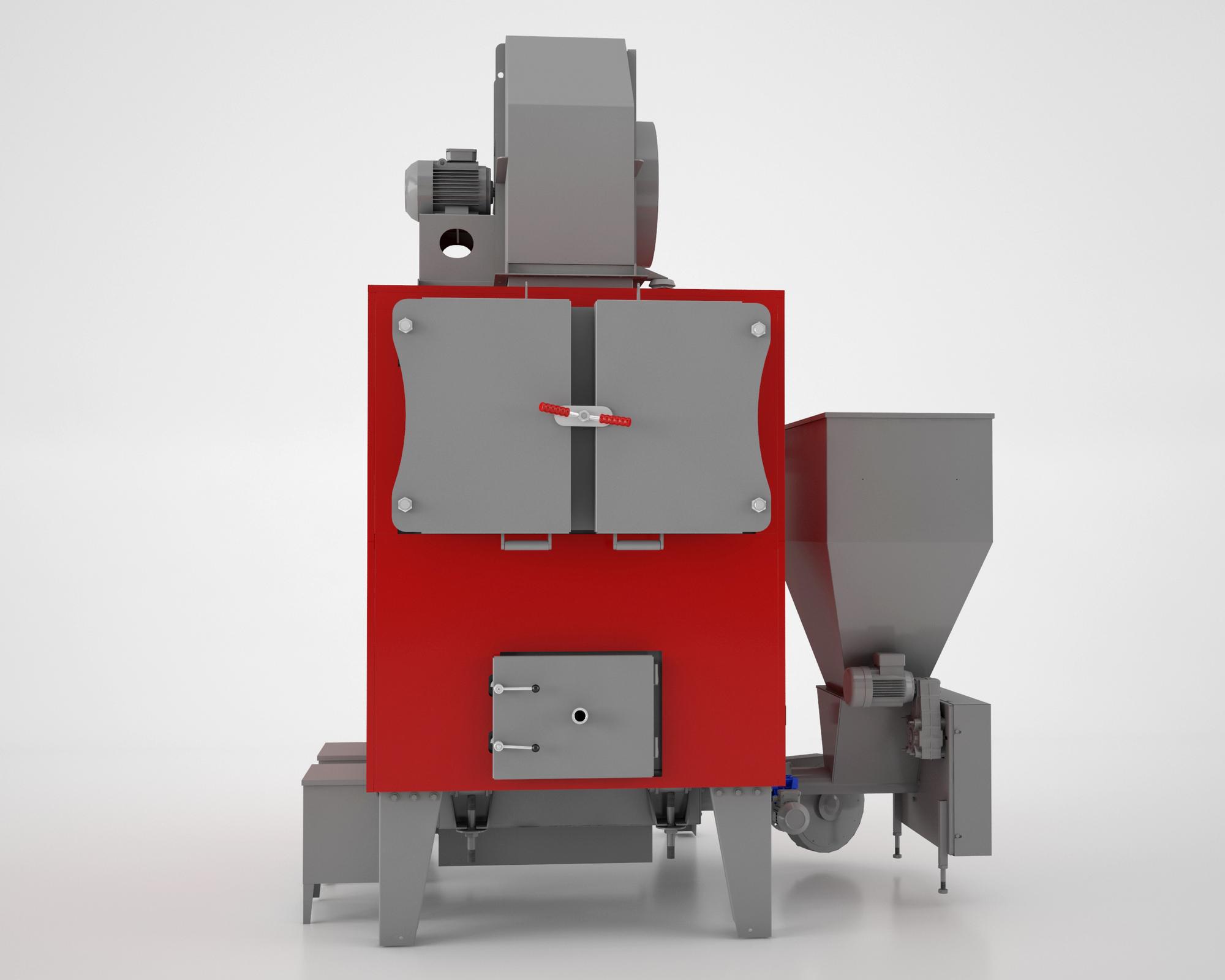

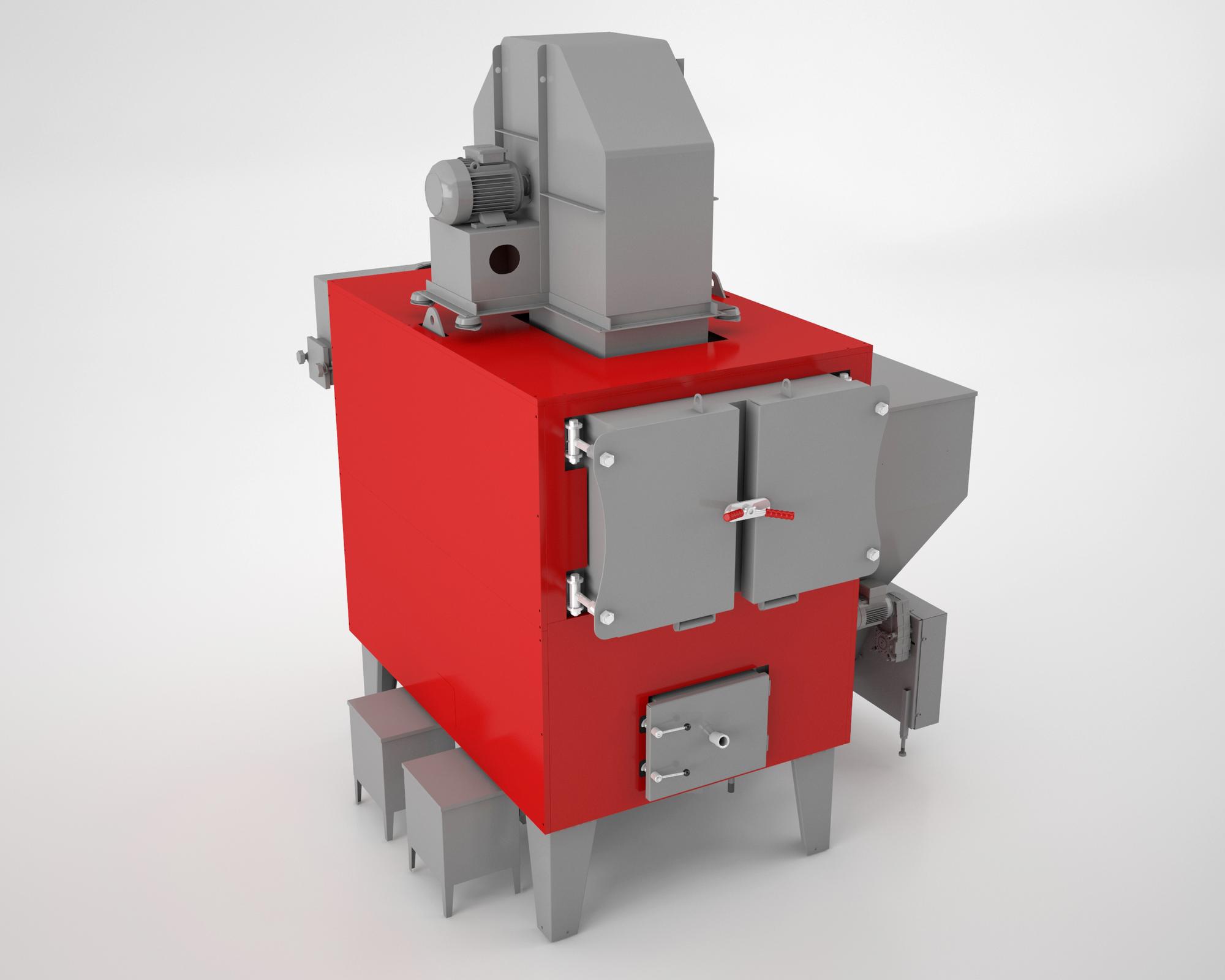

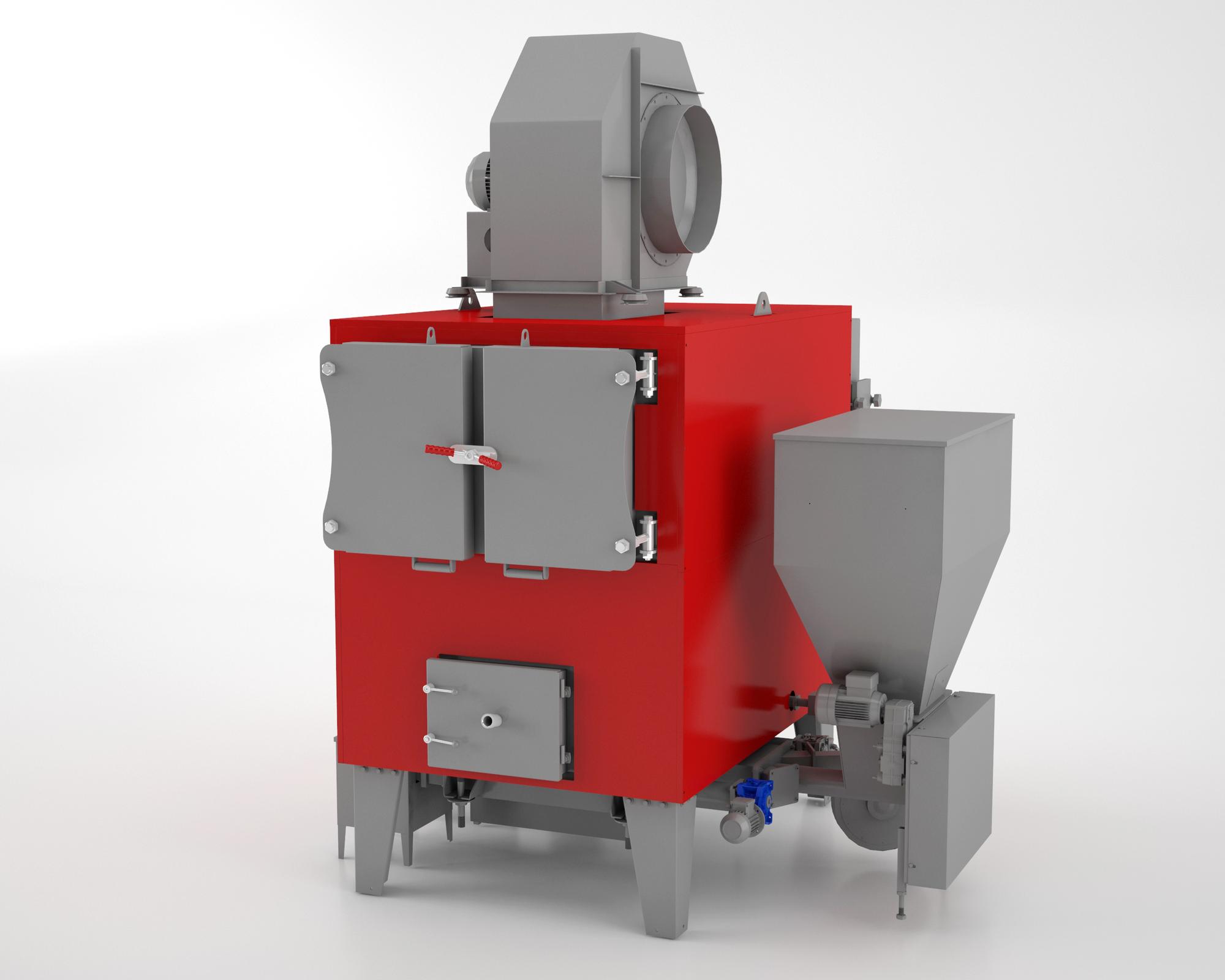

PEL-H Series is a high-efficiency warm air blowing system designed for heating poultry farms, greenhouses, factories, and various industrial areas.
Additionally, it offers an effective solution for drying products such as rice, citrus, tree leaves, cotton, and timber.
The PEL-H Series is an effective, economical, and flexible heating solution with its durable structure and high performance.
Kırmızı
The PEL-H series device, offering features such as automatic fuel loading, automatic ignition, automatic mixing, and automatic ash removal, is designed to serve you in the most efficient way possible.
| Capacity kW | 70 |
| Width (A) mm | 1870 |
| Length (B) mm | 1600 |
| Height (C) mm | 1750 |
| Cold Water Inlet Height (D) mm | 2×200/340 |
| Hot Water Outlet Height (E) mm | 1550 |
| Flue Pipe Diameter mm | 200 |
| Weight kg | 836 |
| Blower Fan Power kW | 1.5 |
| Hot Air Flow m3/h | 4500 |
| Hopper Capacity lt | 180 |
| Reducer Power W | 180 |
| Fan Power W | 105 |
| Ash Box Capacity l | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 16 |
| Capacity kW | 150 |
| Width (A) mm | 2170 |
| Length (B) mm | 2300 |
| Height (C) mm | 1800 |
| Cold Water Inlet Height (D) mm | 450 |
| Hot Water Outlet Height (E) mm | 1650 |
| Flue Pipe Diameter mm | 250 |
| Weight kg | 1400 |
| Blower Fan Power kW | 2.2 |
| Hot Air Flow m3/h | 5000 |
| Hopper Capacity lt | 230 |
| Reducer Power W | 750 |
| Fan Power W | 550(KOZ)/2×240(PEL) |
| Ash Box Capacity l | 95 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 32 |
| Capacity kW | 174 |
| Width (A) mm | 2150 |
| Length (B) mm | 2600 |
| Height (C) mm | 2050 |
| Cold Water Inlet Height (D) mm | 450 |
| Hot Water Outlet Height (E) mm | 1900 |
| Flue Pipe Diameter mm | 300 |
| Weight kg | 1550 |
| Blower Fan Power kW | 3 |
| Hot Air Flow m3/h | 7000 |
| Hopper Capacity lt | 450 |
| Reducer Power W | 750 |
| Fan Power W | 550(KOZ)/2×240(PEL) |
| Ash Box Capacity l | 95 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 32 |
| Capacity kW | 209 |
| Width (A) mm | 2250 |
| Length (B) mm | 2800 |
| Height (C) mm | 2250 |
| Cold Water Inlet Height (D) mm | 450 |
| Hot Water Outlet Height (E) mm | 2050 |
| Flue Pipe Diameter mm | 300 |
| Weight kg | 1650 |
| Blower Fan Power kW | 3 |
| Hot Air Flow m3/h | 8000-9000 |
| Hopper Capacity lt | 450 |
| Reducer Power W | 750 |
| Fan Power W | 550(KOZ)/2×240(PEL) |
| Ash Box Capacity l | 95 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 32 |
| Capacity kW | 232 |
| Width (A) mm | 3050 |
| Length (B) mm | 2800 |
| Height (C) mm | 2250 |
| Cold Water Inlet Height (D) mm | 600 |
| Hot Water Outlet Height (E) mm | 2050 |
| Flue Pipe Diameter mm | 300 |
| Weight kg | 1750 |
| Blower Fan Power kW | 4 |
| Hot Air Flow m3/h | 11,500 |
| Hopper Capacity lt | 450 |
| Reducer Power W | 750 |
| Fan Power W | 550(KOZ)/2×240(PEL) |
| Ash Box Capacity l | 95 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 32 |
| Capacity kW | 290 |
| Width (A) mm | 3200 |
| Length (B) mm | 3000 |
| Height (C) mm | 2500 |
| Cold Water Inlet Height (D) mm | 600 |
| Hot Water Outlet Height (E) mm | 2300 |
| Flue Pipe Diameter mm | 400 |
| Weight kg | 2200 |
| Blower Fan Power kW | 4 |
| Hot Air Flow m3/h | 13,000 |
| Hopper Capacity lt | 600 |
| Reducer Power W | 750 |
| Fan Power W | 550(KOZ)/2×240(PEL) |
| Ash Box Capacity l | 95 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 40 |
| Capacity kW | 348 |
| Width (A) mm | 3400 |
| Length (B) mm | 3200 |
| Height (C) mm | 2500 |
| Cold Water Inlet Height (D) mm | 600 |
| Hot Water Outlet Height (E) mm | 2300 |
| Flue Pipe Diameter mm | 400 |
| Weight kg | 2500 |
| Blower Fan Power kW | 5.5-7.5 |
| Hot Air Flow m3/h | 18,000-24,000 |
| Hopper Capacity lt | 600 |
| Reducer Power W | 750 |
| Fan Power W | 550(KOZ)/2×240(PEL) |
| Ash Box Capacity l | 95 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 40 |
| Capacity kW | 465 |
| Width (A) mm | 3400 |
| Length (B) mm | 3500 |
| Height (C) mm | 2550 |
| Cold Water Inlet Height (D) mm | 750 |
| Hot Water Outlet Height (E) mm | 2350 |
| Flue Pipe Diameter mm | 500 |
| Weight kg | 2800 |
| Blower Fan Power kW | 11 |
| Hot Air Flow m3/h | 26,000 |
| Hopper Capacity lt | 600 |
| Reducer Power W | 750 |
| Fan Power W | 550(KOZ)/3×240(PEL) |
| Ash Box Capacity l | 95 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 40/63 |
| Capacity kW | 581 |
| Width (A) mm | 3400 |
| Length (B) mm | 3800 |
| Height (C) mm | 2550 |
| Cold Water Inlet Height (D) mm | 750 |
| Hot Water Outlet Height (E) mm | 2450 |
| Flue Pipe Diameter mm | 500 |
| Weight kg | 3200 |
| Blower Fan Power kW | 11 |
| Hot Air Flow m3/h | 28,000 |
| Hopper Capacity lt | 600 |
| Reducer Power W | 750 |
| Fan Power W | 550(KOZ)/3×240(PEL) |
| Ash Box Capacity l | 95 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 40/63 |
| Capacity kW | 697 |
| Width (A) mm | 4200 |
| Length (B) mm | 3950 |
| Height (C) mm | 2750 |
| Cold Water Inlet Height (D) mm | 750 |
| Hot Water Outlet Height (E) mm | 2600 |
| Flue Pipe Diameter mm | 500 |
| Weight kg | 3900 |
| Blower Fan Power kW | 15 |
| Hot Air Flow m3/h | 30,000 |
| Hopper Capacity lt | 600 |
| Reducer Power W | 750 |
| Fan Power W | 2×550(KOZ)/3×240(PEL) |
| Ash Box Capacity l | 95 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 40/63 |
| Capacity kW | 814 |
| Width (A) mm | 4200 |
| Length (B) mm | 4250 |
| Height (C) mm | 2750 |
| Cold Water Inlet Height (D) mm | 750 |
| Hot Water Outlet Height (E) mm | 2600 |
| Flue Pipe Diameter mm | 500 |
| Weight kg | 4100 |
| Blower Fan Power kW | 15 |
| Hot Air Flow m3/h | 36,000 |
| Hopper Capacity lt | 1600 |
| Reducer Power W | 750 |
| Fan Power W | 2×550(KOZ)/3×240(PEL) |
| Ash Box Capacity l | 200 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 40/63 |
| Capacity kW | 1160 |
| Width (A) mm | 4400 |
| Length (B) mm | 4500 |
| Height (C) mm | 3800 |
| Cold Water Inlet Height (D) mm | 750 |
| Hot Water Outlet Height (E) mm | 3350 |
| Flue Pipe Diameter mm | 600 |
| Weight kg | 8000 |
| Blower Fan Power kW | 22 |
| Hot Air Flow m3/h | 40,000 |
| Hopper Capacity lt | 1600 |
| Reducer Power W | 750 |
| Fan Power W | 2×550(KOZ)/3×240(PEL) |
| Ash Box Capacity l | 200 |
| Operating Voltage and Frequency V/Hz | 380/50 |
| Operating Current A | 40/63 |
