Aqueous System

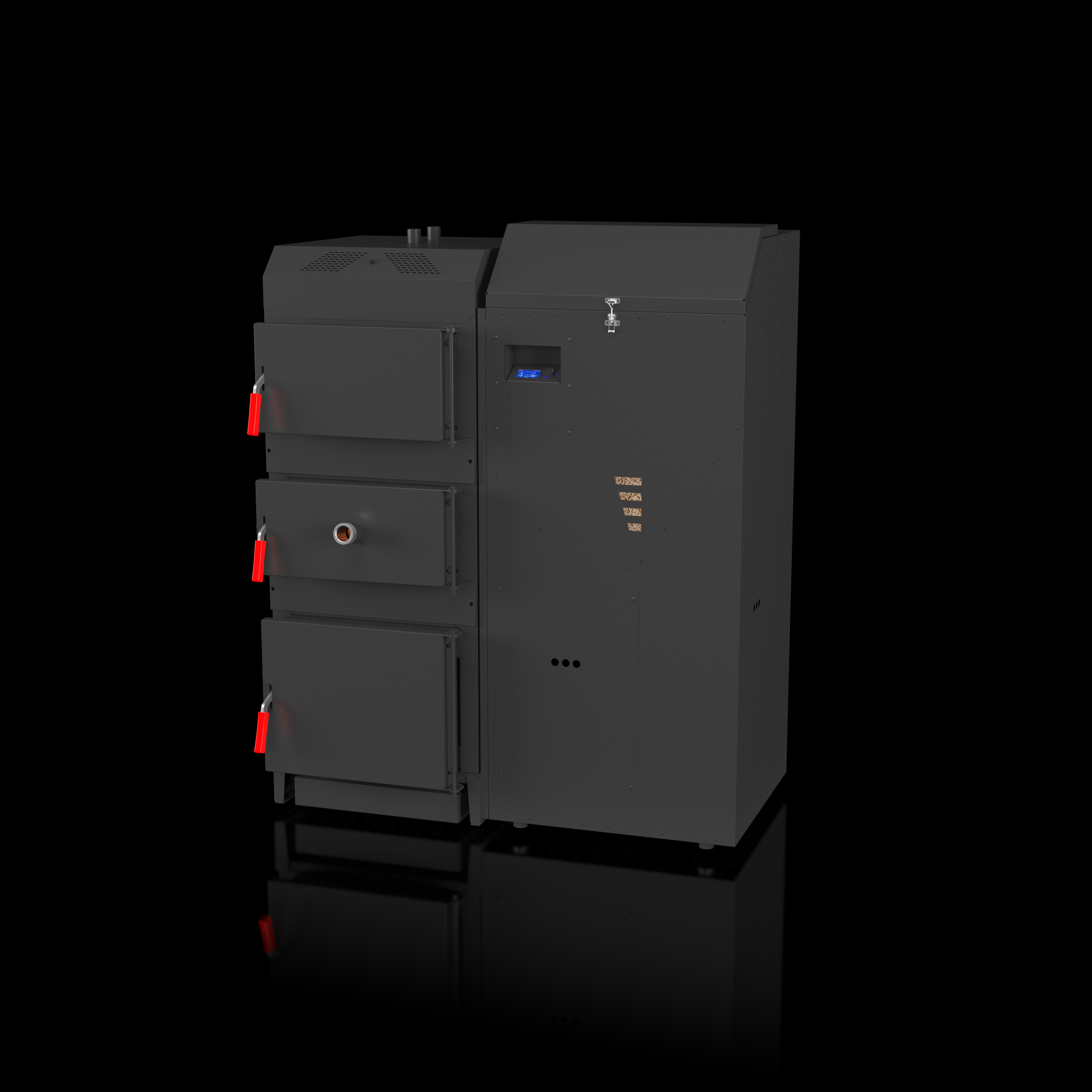

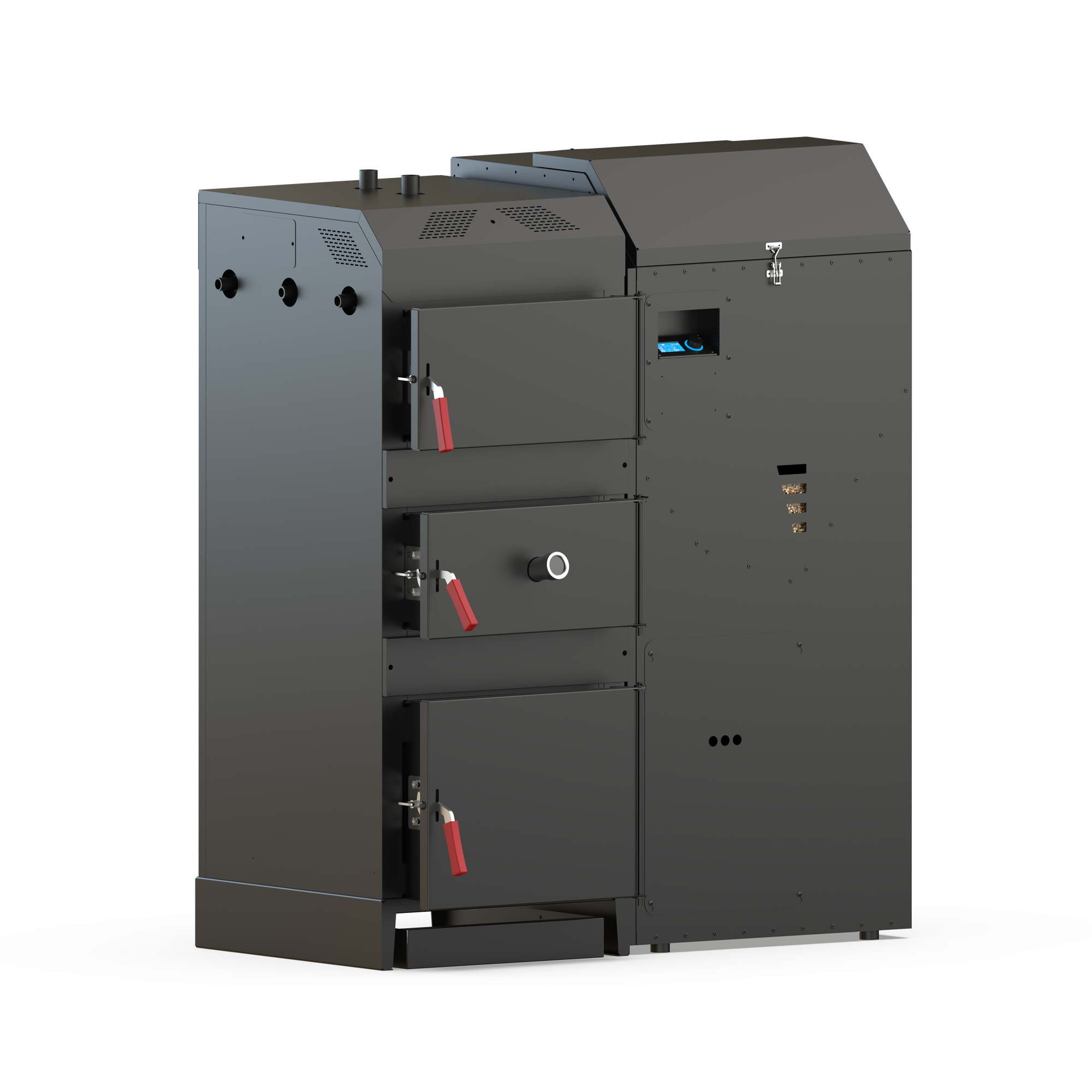

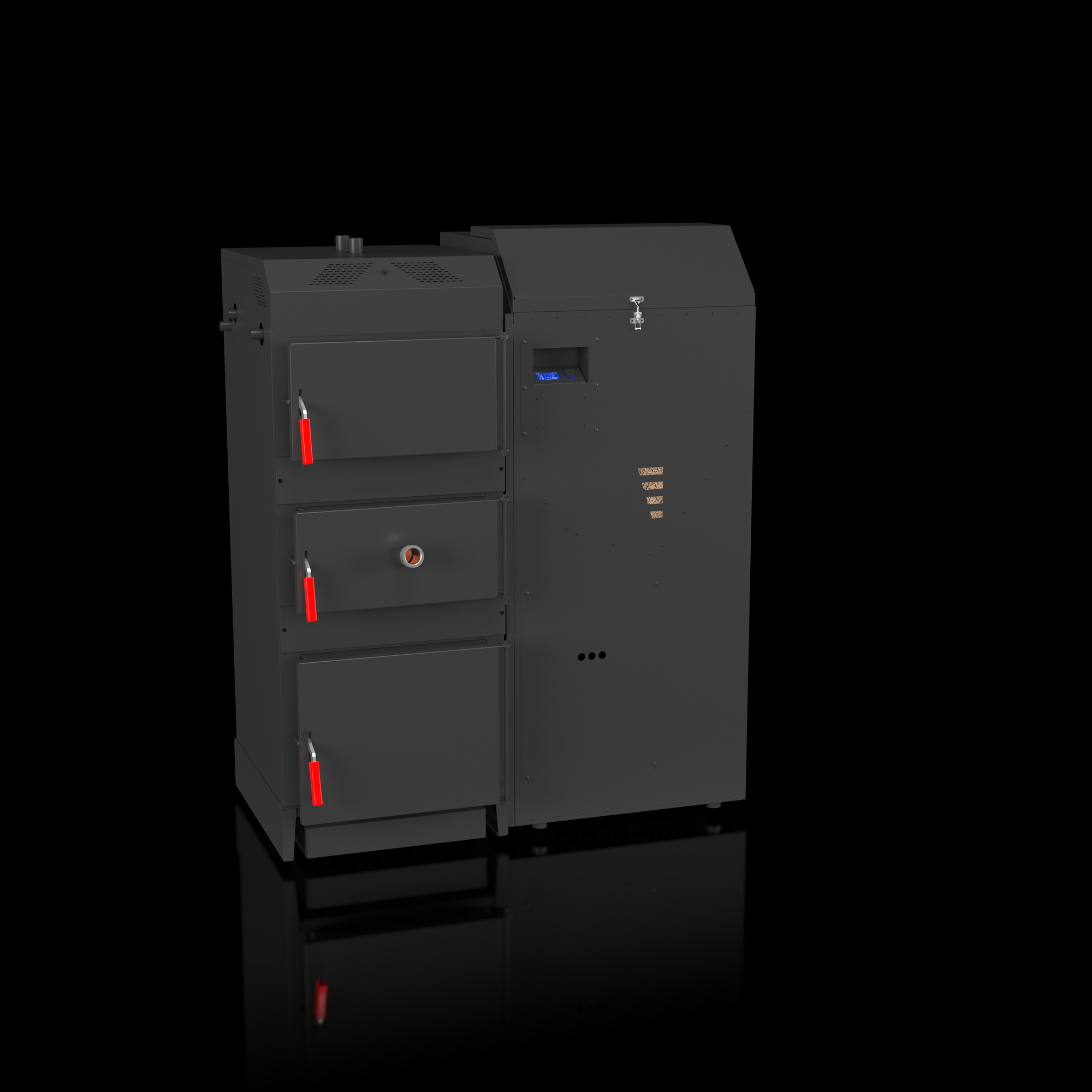

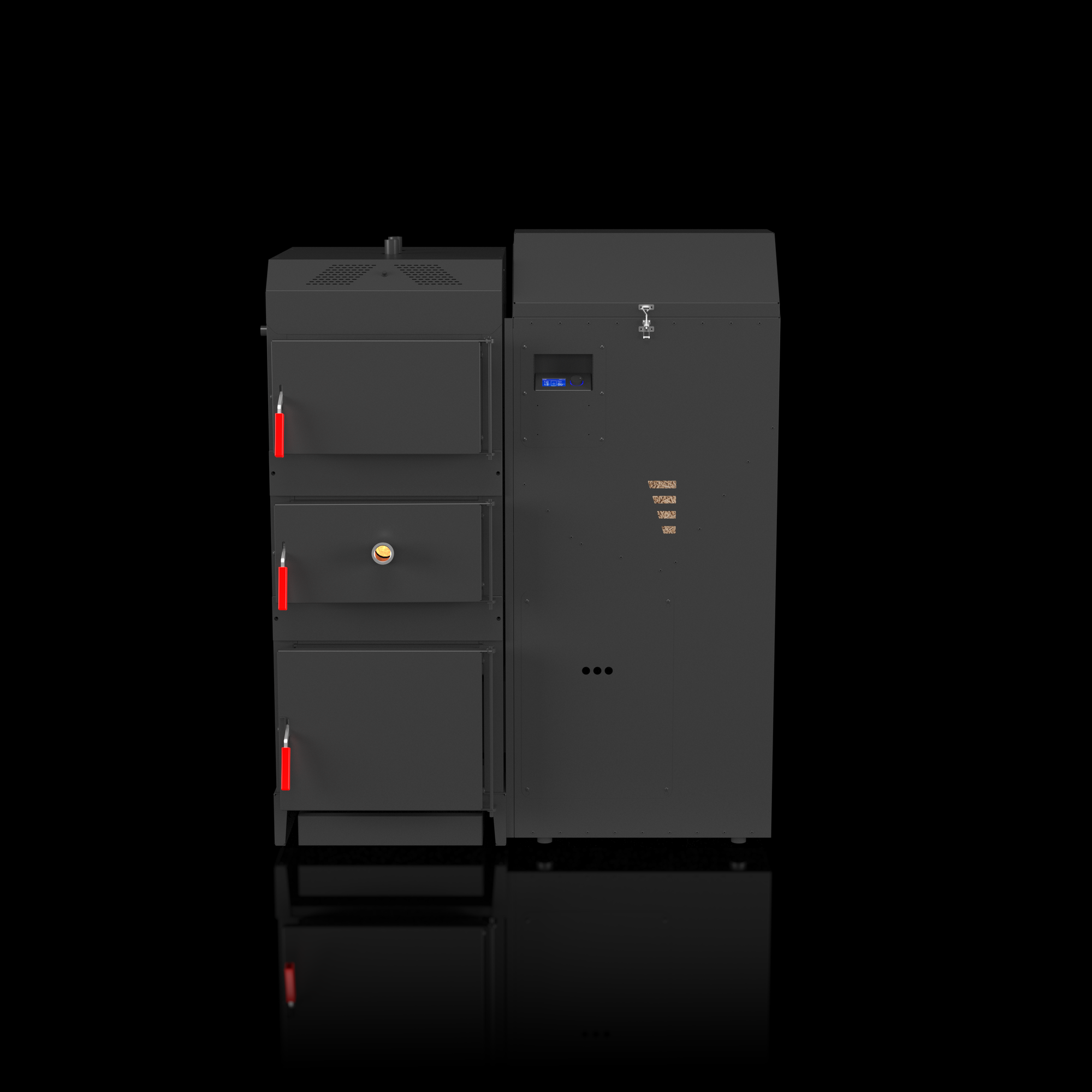

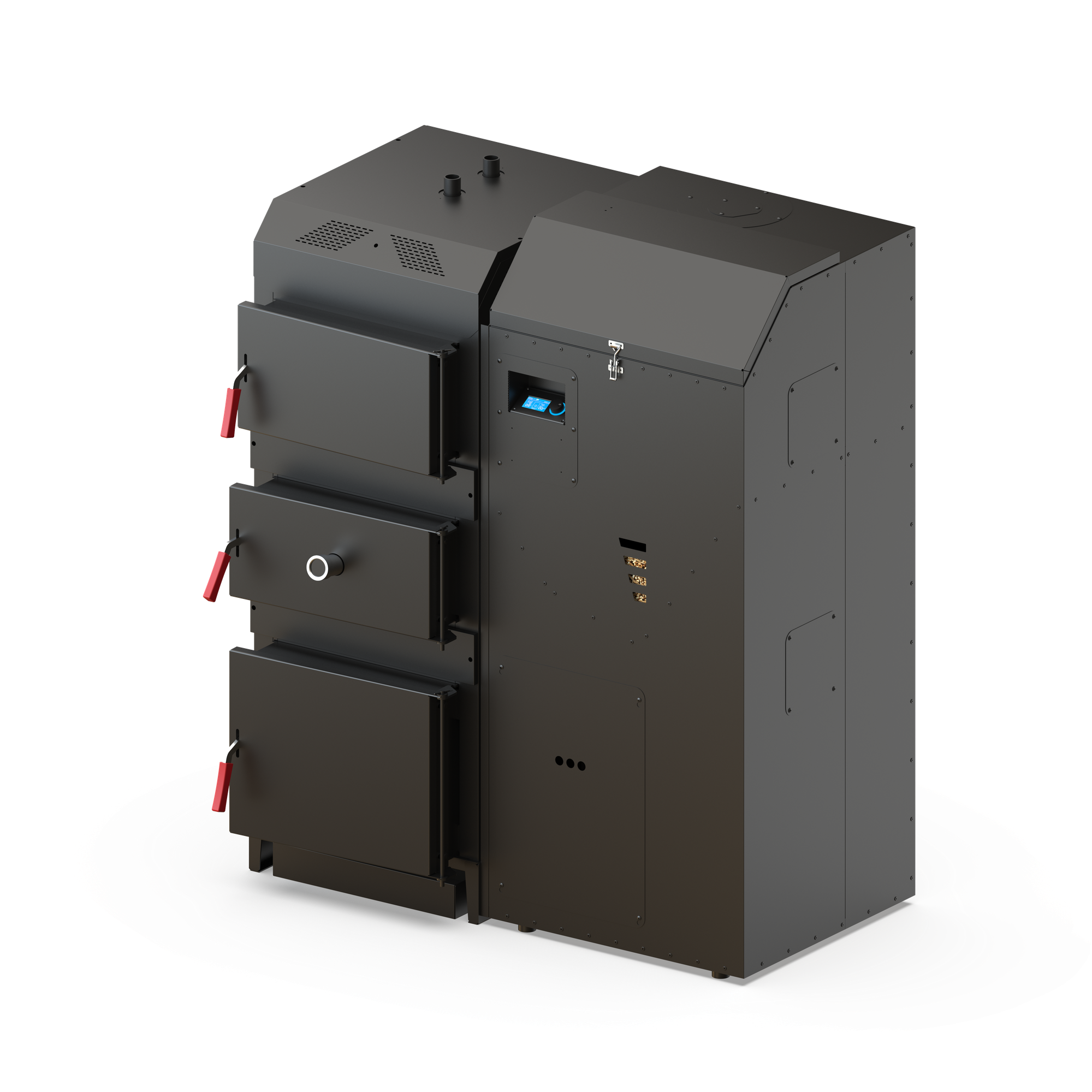

The Logpel boiler is an industrial-grade hybrid heating system designed to operate with both pellet and wood fuel. Its advanced combustion architecture allows pellet and wood to be burned efficiently, either individually or through a specially developed combined system that optimizes performance and fuel flexibility. The long-lasting steel body and strong glass wool and ceramic insulation ensure durability and thermal stability.
Color Option
Noier
Logpel Hybrid Boiler combines industrial-grade durability with dual pellet and wood combustion technology, delivering high-efficiency performance, fuel flexibility, and fully integrated heating power.
Smart modulation, advanced safety systems, automated pellet operation, and intelligent temperature management ensure optimized combustion, operational reliability, and adaptable large-scale heating solutions.
General Features
Technical Specifications
Dökümanlar
Images & Videos
By rotating the auger with the help of the electronic fuel supply motor It offers the possibility of ‘Automatic Refuelling’. In this way, both from your place You can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuelling level automatically according to the temperature value you set. will load, then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
Thanks to the advanced automatic pot cleaning feature, your boiler will not burn chamber is cleaned regularly and maximum efficiency is ensured. This one system minimises the need for manual intervention, providing the user with comfort and offers ease of use. Fuel saving with a cleaner combustion environment while prolonging the boiler life.
With the boiler sensor and boiler pump start-up feature, your boiler is now guaranteed to produce hot water in summer and winter! Warm all year round, in all seasons This smart system, which meets your water needs, offers energy efficiency and superior makes your life easier with its performance. Always enjoy hot water Take it out, don't compromise on your comfort!
By rotating the auger with the help of the electronic fuel supply motor It offers the possibility of ‘Automatic Refuelling’. In this way, both from your place You can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuelling level automatically according to the temperature value you set. will load, then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
Thanks to the advanced automatic pot cleaning feature, your boiler will not burn chamber is cleaned regularly and maximum efficiency is ensured. This one system minimises the need for manual intervention, providing the user with comfort and offers ease of use. Fuel saving with a cleaner combustion environment while prolonging the boiler life.
With the boiler sensor and boiler pump start-up feature, your boiler is now guaranteed to produce hot water in summer and winter! Warm all year round, in all seasons This smart system, which meets your water needs, offers energy efficiency and superior makes your life easier with its performance. Always enjoy hot water Take it out, don't compromise on your comfort!
By rotating the auger with the help of the electronic fuel supply motor It offers the possibility of ‘Automatic Refuelling’. In this way, both from your place You can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuelling level automatically according to the temperature value you set. will load, then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
Thanks to the advanced automatic pot cleaning feature, your boiler will not burn chamber is cleaned regularly and maximum efficiency is ensured. This one system minimises the need for manual intervention, providing the user with comfort and offers ease of use. Fuel saving with a cleaner combustion environment while prolonging the boiler life.
With the boiler sensor and boiler pump start-up feature, your boiler is now guaranteed to produce hot water in summer and winter! Warm all year round, in all seasons This smart system, which meets your water needs, offers energy efficiency and superior makes your life easier with its performance. Always enjoy hot water Take it out, don't compromise on your comfort!
MODEL
LOGPEL 25
LOGPEL 25
LOGPEL 40
| Capacity kW | 25 |
| Width (A) mm | 1330 |
| Length (B) mm | 1125 |
| Height (C) mm | 1625 |
| Cold Water Inlet Height (D) mm | 505 |
| Hot Water Outlet Height (E) mm | 1600 |
| Flue Outlet Height (F) mm | 1280 |
| Flue Diameter mm | 180 |
| Flow – Return inches | 1 |
| Expansion Outlet inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 450 |
| Water Volume liters | 115 |
| Fuel Chamber Capacity liters | 280 |
| Ash Disposal Box Capacity liters | 12 |
| Max Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max Operating Temperature °C | 90 |
| Reducer Motor Power W | 50 |
| Fan Power W | 80 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Capacity kW | 40 |
| Width (A) mm | 1330 |
| Length (B) mm | 1125 |
| Height (C) mm | 1720 |
| Cold Water Inlet Height (D) mm | 505 |
| Hot Water Outlet Height (E) mm | 1700 |
| Flue Outlet Height (F) mm | 1380 |
| Flue Diameter mm | 180 |
| Flow – Return inches | 1 |
| Expansion Outlet inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 500 |
| Water Volume liters | 140 |
| Fuel Chamber Capacity liters | 280 |
| Ash Disposal Box Capacity liters | 12 |
| Max Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max Operating Temperature °C | 90 |
| Reducer Motor Power W | 50 |
| Fan Power W | 80 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
