Indoor Water System

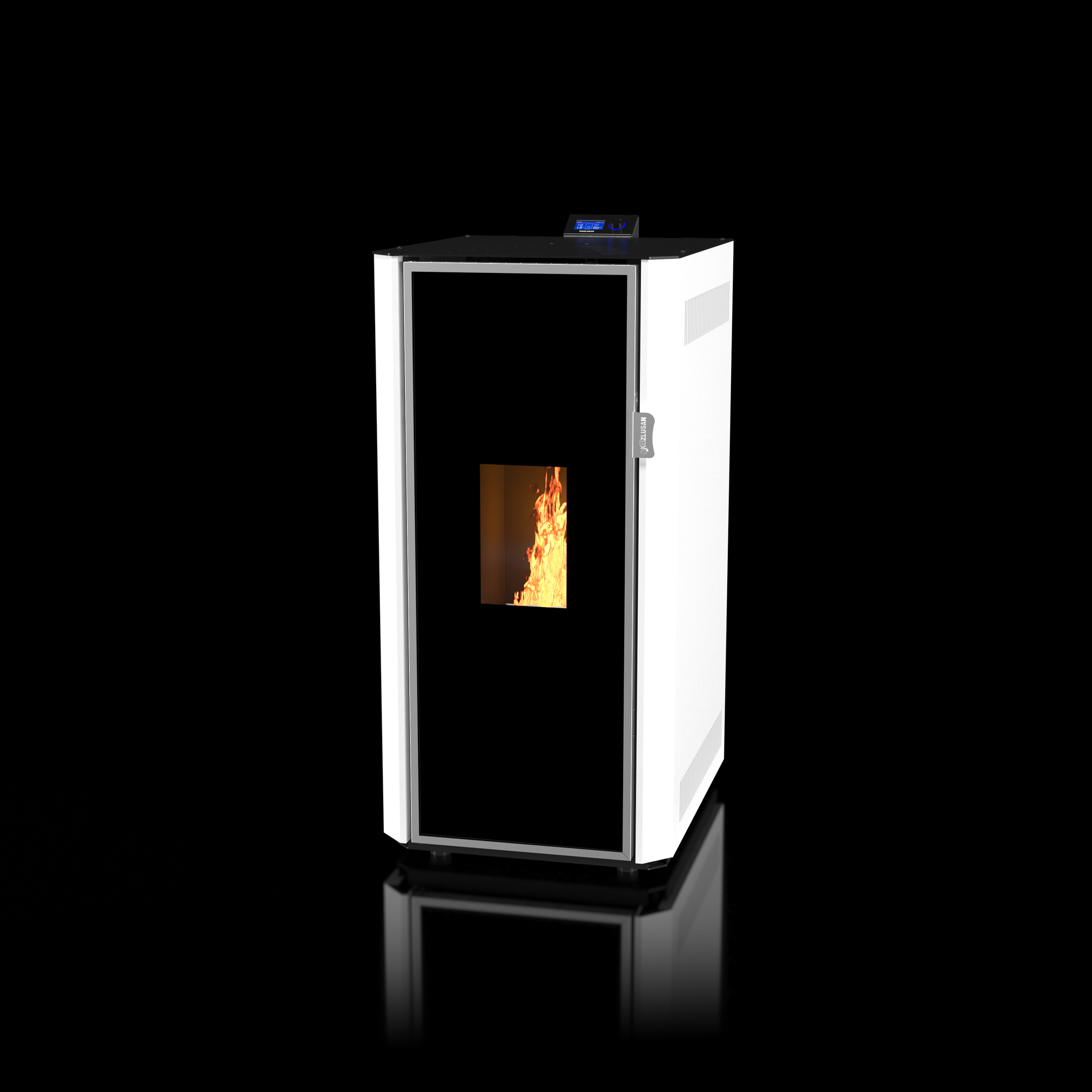

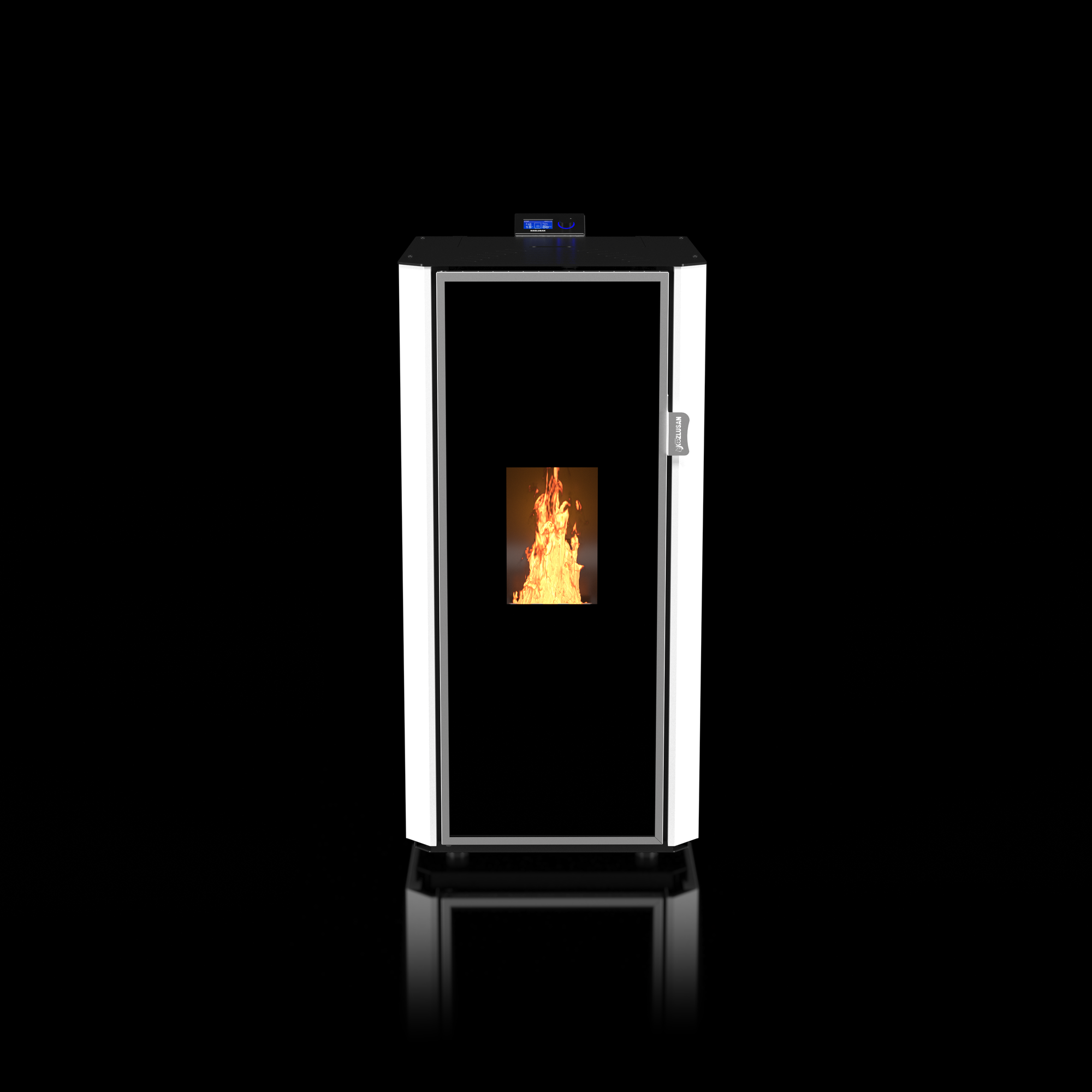

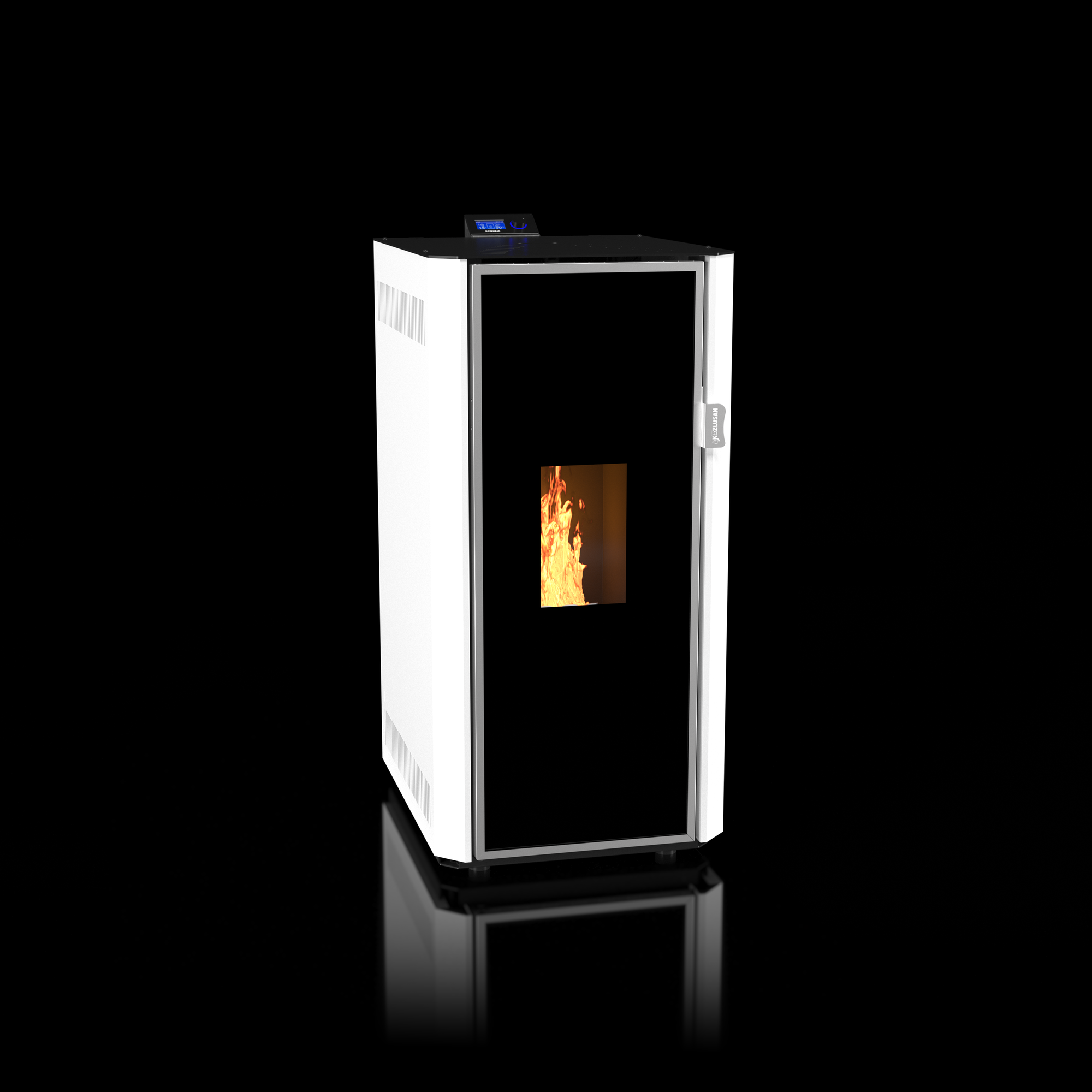

LIDYA is an efficient stove that can produce hot water with pellet fuel.
Color Option
White
Black
Red
Our product provides efficiency and
economy
with its highly efficient body design. It offers comfort to the user with rich
functions such as automatic fuel loading, automatic ignition, and remote control.
General Features
Technical Specifications
Documents
Images & Videos
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Of course, if a device that does so much work by itself does not clean itself would not have happened. That's why we developed the 'Automatic Cooker Cleaning' system. This system is activated after the device stops working and does not rust. by opening and closing the steel furnace sharply to remove all the ash from underneath the ashes. into his drawer.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Of course, if a device that does so much work by itself does not clean itself would not have happened. That's why we developed the 'Automatic Cooker Cleaning' system. This system is activated after the device stops working and does not rust. by opening and closing the steel furnace sharply to remove all the ash from underneath the ashes. into his drawer.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Of course, if a device that does so much work by itself does not clean itself would not have happened. That's why we developed the 'Automatic Cooker Cleaning' system. This system is activated after the device stops working and does not rust. by opening and closing the steel furnace sharply to remove all the ash from underneath the ashes. into his drawer.
MODEL
LIDYA COMPACT 15+240 LT
LIDYA COMPACT 15+240 LT
LIDYA COMPACT 15 PLUS+240 LT
LIDYA COMPACT 15 PRESTIGE
LIDYA COMPACT 25+300 LT
LIDYA COMPACT 25 PLUS+300 LT
LIDYA COMPACT 25 PRESTIGE
| Capacity kW | 5-15 |
| Width (A) mm | 910 |
| Length (B) mm | 825 |
| Length (B1) mm | |
| Height (C) mm | 1200 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 243 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 173 |
| Water Capacity lt | 29 |
| Tank Capacity lt | 240 |
| Ash Box Capacity l | |
| Max. Working Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Working Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity kW | 5-15 |
| Width (A) mm | 910 |
| Length (B) mm | 825 |
| Length (B1) mm | |
| Height (C) mm | 1200 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 243 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 173 |
| Water Capacity lt | 29 |
| Tank Capacity lt | 240 |
| Ash Box Capacity l | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity kW | 5-15 |
| Width (A) mm | 910 |
| Length (B) mm | 928 |
| Length (B1) mm | 103 |
| Height (C) mm | 1200 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 243 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 188 |
| Water Capacity lt | 29 |
| Tank Capacity lt | 240 |
| Ash Box Capacity l | 23 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity kW | 5-25 |
| Width (A) mm | 965 |
| Length (B) mm | 965 |
| Length (B1) mm | |
| Height (C) mm | 1320 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 220 |
| Water Capacity lt | 37 |
| Tank Capacity lt | 300 |
| Ash Box Capacity l | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
| Capacity kW | 5-25 |
| Width (A) mm | 965 |
| Length (B) mm | 965 |
| Length (B1) mm | |
| Height (C) mm | 1320 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 220 |
| Water Capacity lt | 37 |
| Tank Capacity lt | 300 |
| Ash Box Capacity l | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
| Capacity kW | 5-25 |
| Width (A) mm | 965 |
| Length (B) mm | 965 |
| Length (B1) mm | 137 |
| Height (C) mm | 1320 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Chimney Outlet Height (F) mm | 155 |
| Chimney Diameter mm | 80 |
| Flow – Return inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 250 |
| Water Capacity liters | 37 |
| Tank Capacity liters | 300 |
| Ash Box Capacity liters | 26 |
| Max Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
