Pelet

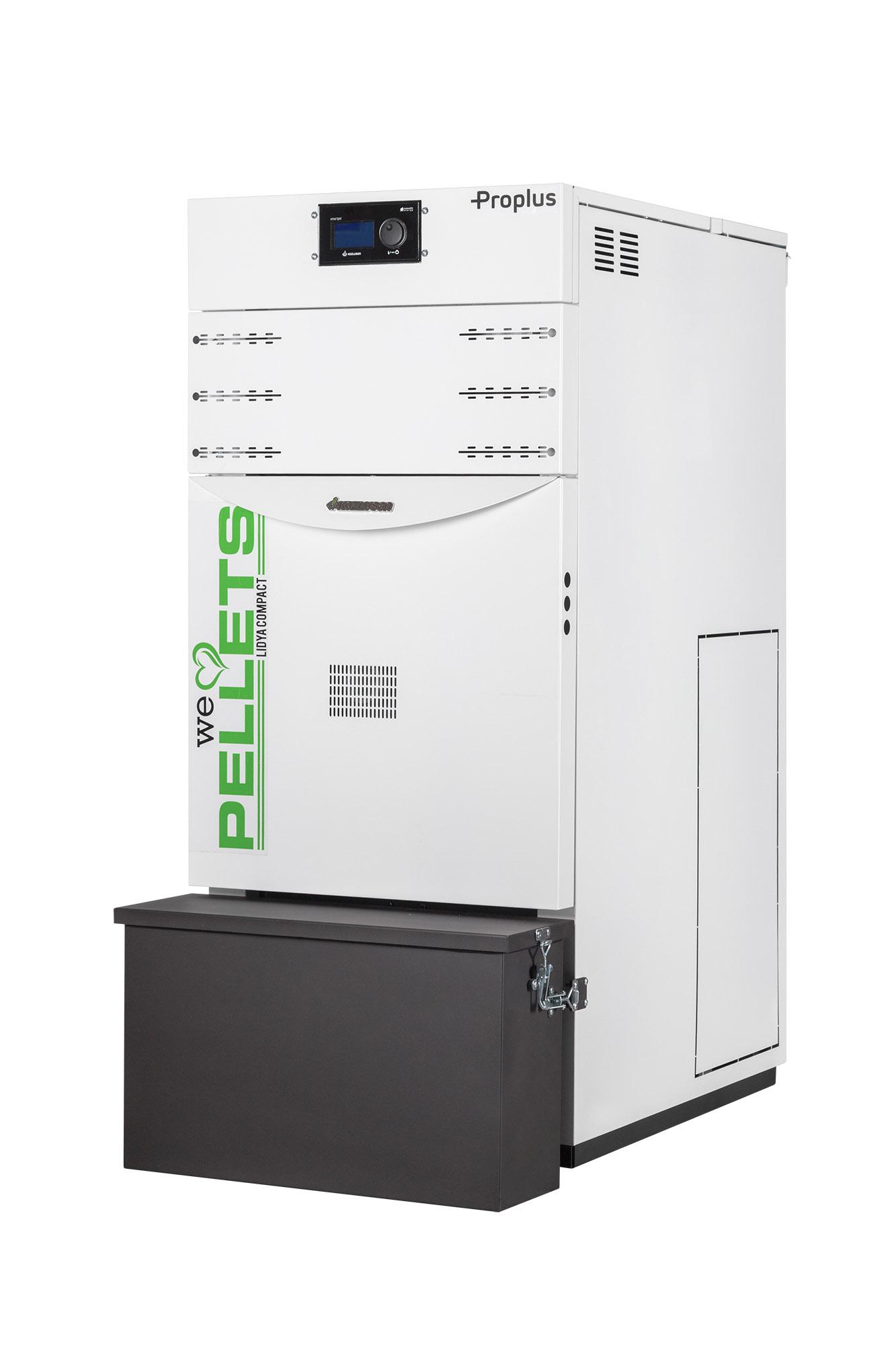

Offering maximum heating performance in tight spaces with its compact design, Lidya Compact Series is user-friendly with automatic fuel supply and modulating control panel.
Color Option
White
Our product provides economic efficiency with its highly efficient body design.
It offers comfort to the user with rich functions such as automatic fuel loading, automatic ignition, remote control, automatic ash removal, automatic flue pipe cleaning, and automatic stove cleaning.
General Features
Technical Specifications
Documents
Images & Videos
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
And let's not forget the smoke pipes that contribute to the heating of the water! is as important as cleaning the stove. But don't panic no need at all! We'll take care of you in an automated way in this area that allows the device to be cleaned. Handles after the device is turned off and then clean it by moving it up and down automatically. controlled by a single motor in combination with the system “Automatic Hearth Cleaning” maximizing energy savings.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Thanks to the advanced motorized automatic burner cleaning system, combustion ash and debris accumulated in the chamber are automatically removed. This feature, minimizes user intervention and ensures that the boiler operates at a consistently high efficiency. ensures that it works. Fuel savings with a cleaner combustion environment increased, maintenance is simplified and longevity of use is ensured.

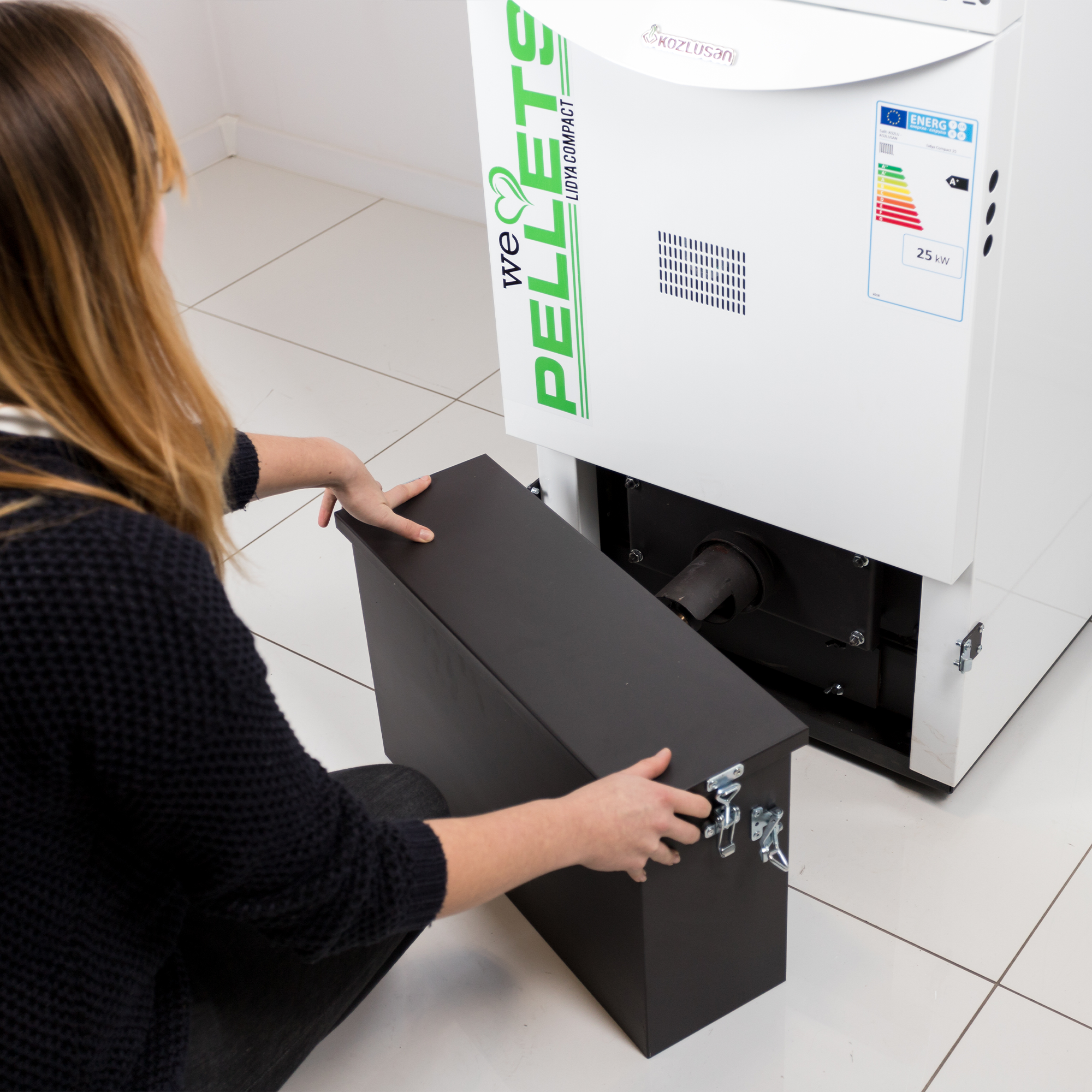

Where does the waste from all these cleared areas go? That's where the “Automatic Ash Removal” system gives the answer. The cleaned ash and we transfer the pellet residues to the ash bin located outside the device. This one so that you can periodically empty the ash box in a more sterilized and hygienic way. you can empty it.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
And let's not forget the smoke pipes that contribute to the heating of the water! is as important as cleaning the stove. But don't panic no need at all! We'll take care of you in an automated way in this area that allows the device to be cleaned. Handles after the device is turned off and then clean it by moving it up and down automatically. controlled by a single motor in combination with the system “Automatic Hearth Cleaning” maximizing energy savings.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Thanks to the advanced motorized automatic burner cleaning system, combustion ash and debris accumulated in the chamber are automatically removed. This feature, minimizes user intervention and ensures that the boiler operates at a consistently high efficiency. ensures that it works. Fuel savings with a cleaner combustion environment increased, maintenance is simplified and longevity of use is ensured.
Where does the waste from all these cleared areas go? That's where the “Automatic Ash Removal” system gives the answer. The cleaned ash and we transfer the pellet residues to the ash bin located outside the device. This one so that you can periodically empty the ash box in a more sterilized and hygienic way. you can empty it.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
And let's not forget the smoke pipes that contribute to the heating of the water! is as important as cleaning the stove. But don't panic no need at all! We'll take care of you in an automated way in this area that allows the device to be cleaned. Handles after the device is turned off and then clean it by moving it up and down automatically. controlled by a single motor in combination with the system “Automatic Hearth Cleaning” maximizing energy savings.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Thanks to the advanced motorized automatic burner cleaning system, combustion ash and debris accumulated in the chamber are automatically removed. This feature, minimizes user intervention and ensures that the boiler operates at a consistently high efficiency. ensures that it works. Fuel savings with a cleaner combustion environment increased, maintenance is simplified and longevity of use is ensured.
Where does the waste from all these cleared areas go? That's where the “Automatic Ash Removal” system gives the answer. The cleaned ash and we transfer the pellet residues to the ash bin located outside the device. This one so that you can periodically empty the ash box in a more sterilized and hygienic way. you can empty it.
MODEL
LİDYA COMPACT 15 PRO PLUS
LİDYA COMPACT 15 PRO PLUS
LİDYA COMPACT 25 PRO PLUS
| Capacity Range kW | 5-15 |
| Width (A) mm | 505 |
| Length (B) mm | 928 |
| Length (with ash container) (B1) mm | 103 |
| Height (C) mm | 1150 |
| Hot Water Outlet Height (D) mm | 535 |
| Cold Water Inlet Height (E) mm | 243 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow and Return inch | 1 |
| Fill and Empty inch | 1/2 |
| Weight kg | 193 |
| Water Capacity lt | 29 |
| Tank Capacity lt | 43 |
| Additional Tank Capacity lt | 40 |
| Ash Box Capacity lt | 23 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 35-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity Range kW | 5-25 |
| Width (A) mm | 555 |
| Length (B) mm | 965 |
| Length (with ash container) (B1) mm | 137 |
| Height (C) mm | 1270 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow and Return inch | 1 |
| Fill and Empty inch | 1/2 |
| Weight kg | 250 |
| Water Capacity lt | 37 |
| Tank Capacity lt | 65 |
| Additional Tank Capacity lt | 50 |
| Ash Box Capacity lt | 26 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 35-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
