Pelet
Offering maximum heating performance in tight spaces with its compact design, Lidya Compact Series is user-friendly with automatic fuel supply and modulating control panel.
Color Option
White

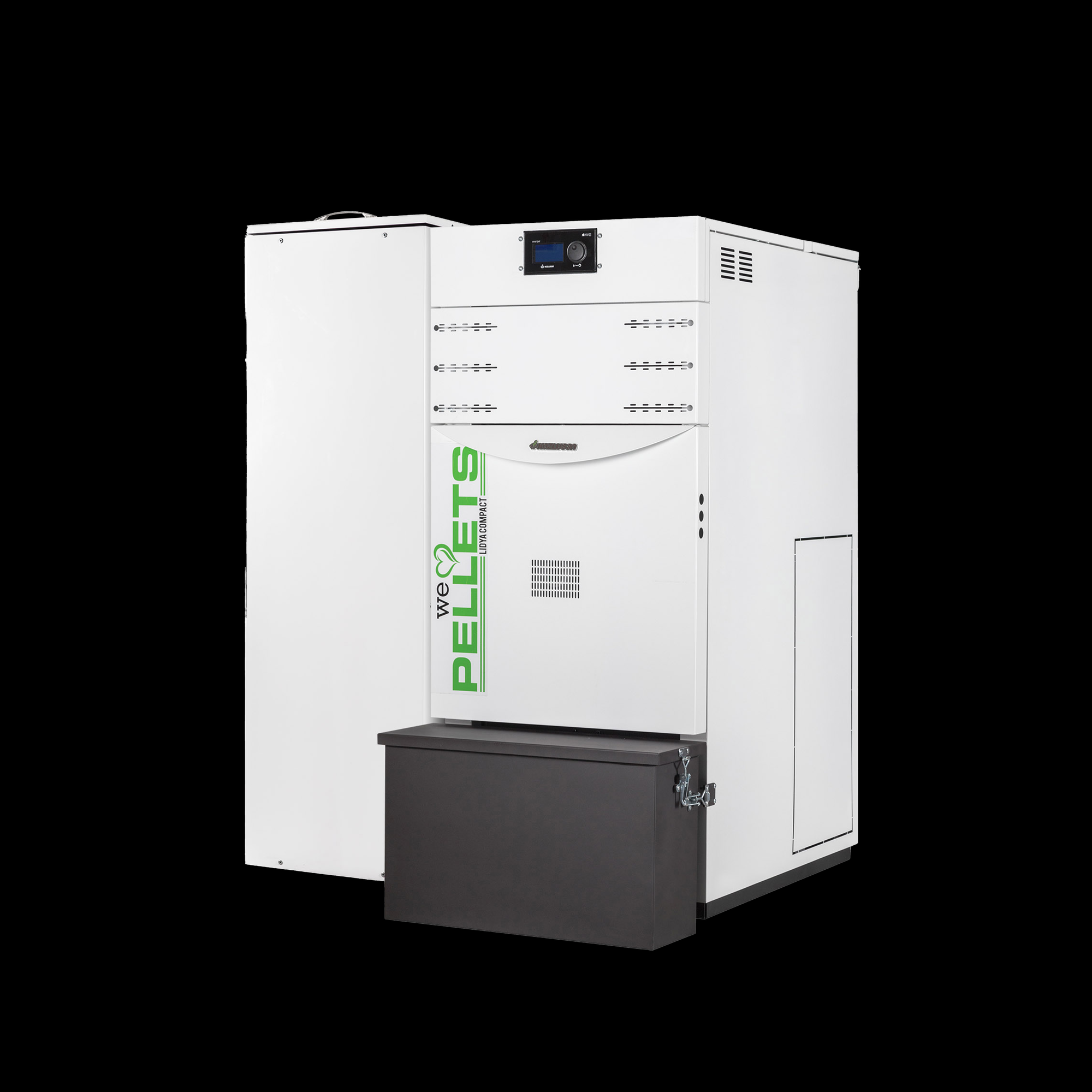

Lidya Compact Prestige: With features like automatic fuel loading,
automatic ignition, automatic stove cleaning,
automatic flue pipe cleaning, and automatic ash removal,
it is one of the most equipped devices thanks to its smart card with wireless control features.
Additionally, thanks to its side-loading fuel tank, it offers
a storage capacity of up to 300 liters.
General Features
Technical Specifications
Documents
Images & Videos
It offers “Automatic Fuel Loading” by rotating the auger with the help of the electronic fuel feeding motor. In this way, both
without leaving your seat and with balanced fuel consumption,
you can warm up.
Of course, you do not need to ignite the loaded fuel with your hand. The device will automatically load the fuel level in line with the temperature value you set, and then you will need to hold it in your hand to make it work.
In as little as 5 “minutes”, it will automatically perform the ignition.
Tabiki de bu kadar işi kendisi yapan bir cihaz kendisini temizlemezse olmazdı. That's why we have developed the “Automatic Cooker Cleaning” system, which is activated after the appliance has stopped working, and which opens and closes the stainless steel cooker sharply to ensure that all the ashes are discharged into the ash drawer underneath.
Let's not forget the smoke pipes that contribute to the heating of the water! Cleaning this area is as important as cleaning the stove.
But there is no need to panic!
With you in mind, we have developed a system that provides automatic cleaning in this area.
This system, which cleans by automatically moving the arms up and down after the appliance is switched off, maximizes energy savings by controlling it with a single motor together with “Automatic Hob Cleaning”.
Where does the waste from all these cleared areas go?
The answer is given by the “Automatic Ash Extraction” system...
We transfer the cleaned ash and pellet residues to the ash box located outside the device.
This allows you to empty the ash can at regular intervals in a more sterilized and hygienic way.
What about the electronic board that controls all this hardware?
Here is some information about the electronic board we designed:
With this card, you can control the device wirelessly, manage it fully automatically and set up a weekly program to create an automatic work schedule.
It offers “Automatic Fuel Loading” by rotating the auger with the help of the electronic fuel feeding motor. In this way, both
without leaving your seat and with balanced fuel consumption,
you can warm up.
Of course, you do not need to ignite the loaded fuel with your hand. The device will automatically load the fuel level in line with the temperature value you set, and then you will need to hold it in your hand to make it work.
In as little as 5 “minutes”, it will automatically perform the ignition.
Tabiki de bu kadar işi kendisi yapan bir cihaz kendisini temizlemezse olmazdı. That's why we have developed the “Automatic Cooker Cleaning” system, which is activated after the appliance has stopped working, and which opens and closes the stainless steel cooker sharply to ensure that all the ashes are discharged into the ash drawer underneath.
Let's not forget the smoke pipes that contribute to the heating of the water! Cleaning this area is as important as cleaning the stove.
But there is no need to panic!
With you in mind, we have developed a system that provides automatic cleaning in this area.
This system, which cleans by automatically moving the arms up and down after the appliance is switched off, maximizes energy savings by controlling it with a single motor together with “Automatic Hob Cleaning”.
Where does the waste from all these cleared areas go?
The answer is given by the “Automatic Ash Extraction” system...
We transfer the cleaned ash and pellet residues to the ash box located outside the device.
This allows you to empty the ash can at regular intervals in a more sterilized and hygienic way.
What about the electronic board that controls all this hardware?
Here is some information about the electronic board we designed:
With this card, you can control the device wirelessly, manage it fully automatically and set up a weekly program to create an automatic work schedule.
It offers “Automatic Fuel Loading” by rotating the auger with the help of the electronic fuel feeding motor. In this way, both
without leaving your seat and with balanced fuel consumption,
you can warm up.
Of course, you do not need to ignite the loaded fuel with your hand. The device will automatically load the fuel level in line with the temperature value you set, and then you will need to hold it in your hand to make it work.
In as little as 5 “minutes”, it will automatically perform the ignition.
Tabiki de bu kadar işi kendisi yapan bir cihaz kendisini temizlemezse olmazdı. That's why we have developed the “Automatic Cooker Cleaning” system, which is activated after the appliance has stopped working, and which opens and closes the stainless steel cooker sharply to ensure that all the ashes are discharged into the ash drawer underneath.
Let's not forget the smoke pipes that contribute to the heating of the water! Cleaning this area is as important as cleaning the stove.
But there is no need to panic!
With you in mind, we have developed a system that provides automatic cleaning in this area.
This system, which cleans by automatically moving the arms up and down after the appliance is switched off, maximizes energy savings by controlling it with a single motor together with “Automatic Hob Cleaning”.
Where does the waste from all these cleared areas go?
The answer is given by the “Automatic Ash Extraction” system...
We transfer the cleaned ash and pellet residues to the ash box located outside the device.
This allows you to empty the ash can at regular intervals in a more sterilized and hygienic way.
What about the electronic board that controls all this hardware?
Here is some information about the electronic board we designed:
With this card, you can control the device wirelessly, manage it fully automatically and set up a weekly program to create an automatic work schedule.
MODEL
LIDYA COMPACT 15 +240 (L)
LIDYA COMPACT 15 +240 (L)
LIDYA COMPACT 15 PLUS +240 (L)
LIDYA COMPACT 15 PRESTIGE
LIDYA COMPACT 25 +300 (L)
LIDYA COMPACT 25 PLUS +300 (L)
LIDYA COMPACT 25 PRESTIGE
| Capacity kW | 5-15 |
| Width (A) mm | 910 |
| Length (B) mm | 825 |
| Length (B1) mm | |
| Height (C) mm | 1200 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 243 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 173 |
| Water Capacity liters | 29 |
| Tank Capacity liters | 240 |
| Ash Box Capacity liters | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Motor Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity kW | 5-15 |
| Width (A) mm | 910 |
| Length (B) mm | 825 |
| Length (B1) mm | |
| Height (C) mm | 1200 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 243 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 173 |
| Water Capacity liters | 29 |
| Tank Capacity liters | 240 |
| Ash Box Capacity liters | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity kW | 5-15 |
| Width (A) mm | 910 |
| Length (B) mm | 928 |
| Length (B1) mm | 103 |
| Height (C) mm | 1200 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 243 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 188 |
| Water Capacity liters | 29 |
| Tank Capacity liters | 240 |
| Ash Box Capacity liters | 23 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity kW | 5-25 |
| Width (A) mm | 965 |
| Length (B) mm | 965 |
| Length (B1) mm | |
| Height (C) mm | 1320 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 220 |
| Water Capacity liters | 37 |
| Tank Capacity liters | 300 |
| Ash Box Capacity liters | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
| Capacity kW | 5-25 |
| Width (A) mm | 965 |
| Length (B) mm | 965 |
| Length (B1) mm | |
| Height (C) mm | 1320 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Chimney Outlet Height (F) mm | 155 |
| Chimney Diameter mm | 80 |
| Flow – Return inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 220 |
| Water Capacity liters | 37 |
| Tank Capacity liters | 300 |
| Ash Box Capacity liters | |
| Max Working Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max Working Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
| Capacity kW | 5-25 |
| Width (A) mm | 965 |
| Length (B) mm | 965 |
| Length (B1) mm | 137 |
| Height (C) mm | 1320 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Chimney Outlet Height (F) mm | 155 |
| Chimney Diameter mm | 80 |
| Flow – Return inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 250 |
| Water Capacity liters | 37 |
| Tank Capacity liters | 300 |
| Ash Box Capacity liters | 26 |
| Max Working Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max Working Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
