Pelet

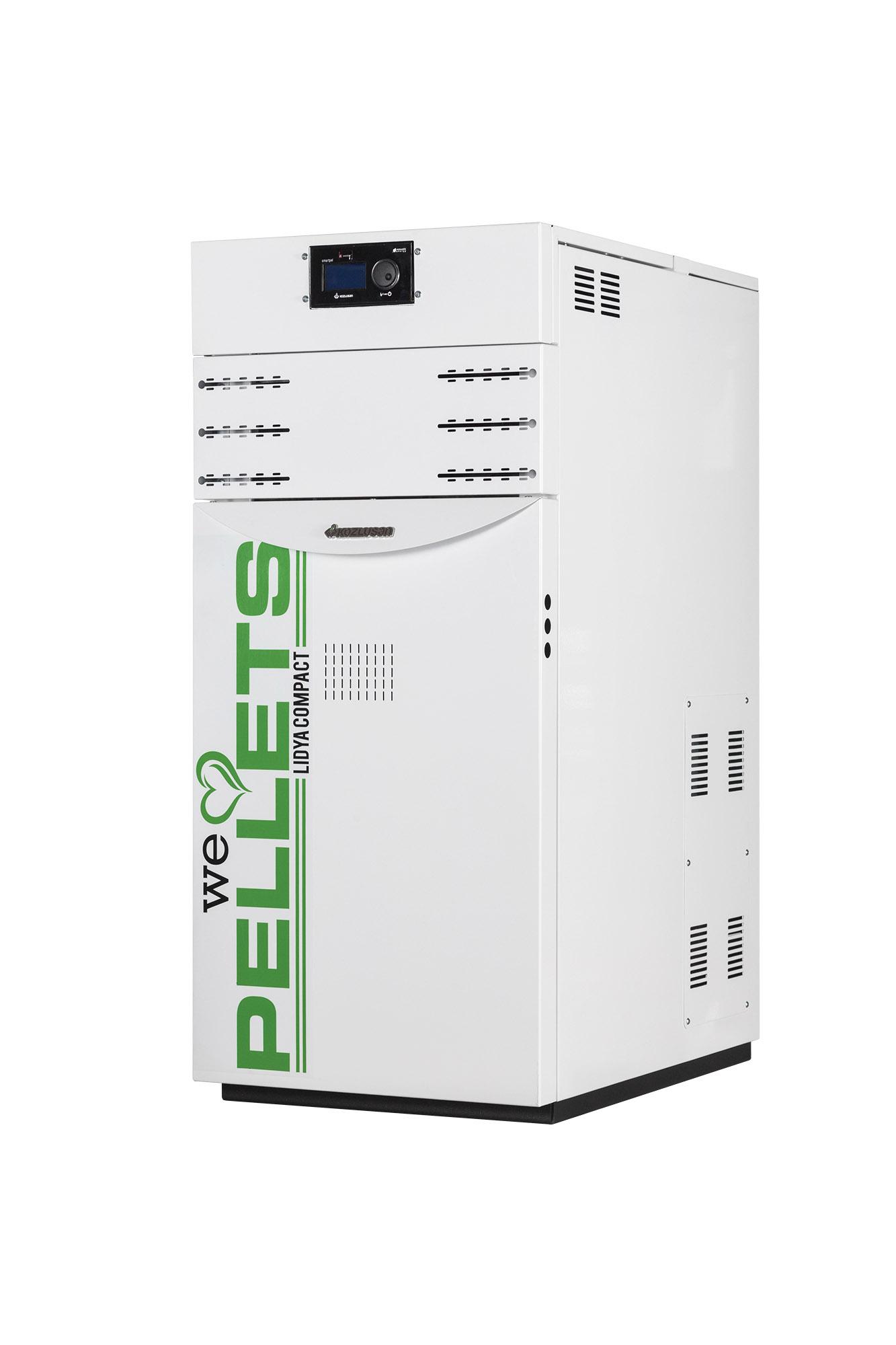

Offering maximum heating performance in tight spaces with its compact design, Lidya Compact Series is user-friendly with automatic fuel supply and modulating control panel.
Color Option
White
Our product provides efficiency and economy with its high-performance body design and
. It offers comfort to the user with rich features such as automatic fuel loading, automatic ignition, remote control, and automatic stove cleaning, etc.
General Features
Technical Specifications
Documents
Images & Videos
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Thanks to the advanced motorized automatic burner cleaning system, combustion ash and debris accumulated in the chamber are automatically removed. This feature, minimizes user intervention and ensures that the boiler operates at a consistently high efficiency. ensures that it works. Fuel savings with a cleaner combustion environment increased, maintenance is simplified and longevity of use is ensured.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Thanks to the advanced motorized automatic burner cleaning system, combustion ash and debris accumulated in the chamber are automatically removed. This feature, minimizes user intervention and ensures that the boiler operates at a consistently high efficiency. ensures that it works. Fuel savings with a cleaner combustion environment increased, maintenance is simplified and longevity of use is ensured.
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
What about the electronic board that controls all this hardware? wirelessly control the device, fully automated. manage and set up a weekly schedule and automatic work program you can create.
Thanks to the advanced motorized automatic burner cleaning system, combustion ash and debris accumulated in the chamber are automatically removed. This feature, minimizes user intervention and ensures that the boiler operates at a consistently high efficiency. ensures that it works. Fuel savings with a cleaner combustion environment increased, maintenance is simplified and longevity of use is ensured.
MODEL
LİDYA COMPACT 15 PLUS
LİDYA COMPACT 15 PLUS
LİDYA COMPACT 25 PLUS
| Capacity Range kW | 5-15 |
| Width (A) mm | 508 |
| Length (B) mm | 815 |
| Length (proplus ash container) (B1) mm | |
| Height (C) mm | 1150 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 243 |
| Chimney Outlet Height (F) mm | 155 |
| Chimney Diameter mm | 80 |
| Flow & Return inches | 1 |
| Fill & Drain inches | 1/2 |
| Weight kg | 193 |
| Water Capacity liters | 29 |
| Chamber Capacity liters | 43 |
| Additional Chamber Capacity liters | 40 |
| Ash Box Capacity liters | |
| Max Working Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 35-85 |
| Max Working Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity Range kW | 5-25 |
| Width (A) mm | 555 |
| Length (B) mm | 855 |
| Length (proplus ash container) (B1) mm | |
| Height (C) mm | 1270 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Chimney Outlet Height (F) mm | 155 |
| Chimney Diameter mm | 80 |
| Flow & Return inches | 1 |
| Fill & Drain inches | 1/2 |
| Weight kg | 210 |
| Water Capacity liters | 37 |
| Chamber Capacity liters | 65 |
| Additional Chamber Capacity liters | 50 |
| Ash Box Capacity liters | |
| Max Working Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 35-85 |
| Max Working Temperature °C | 90 |
| Reducer Power W | 50 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
