Pelet

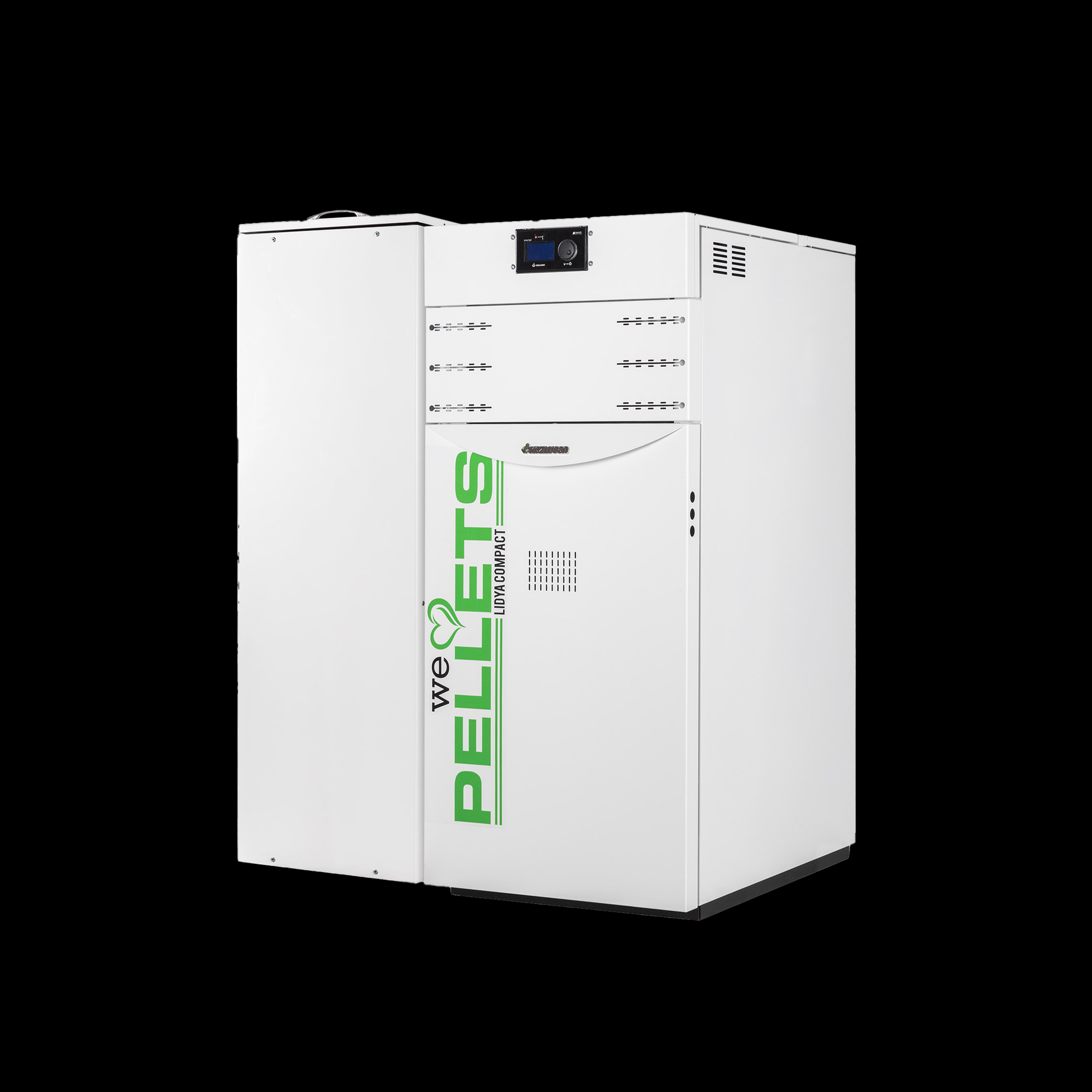

Offering maximum heating performance in tight spaces with its compact design, Lidya Compact Series is user-friendly with automatic fuel supply and modulating control panel.
Color Option
White
Lidya Compact; Automatic fuel loading,
Automatic ignition, Manual stove cleaning,
Manual flue cleaning, and other features,
in addition to the smart card with wireless control,
provides both economical and comfortable
ease of use.
Furthermore, with its side-loading fuel tank,
it offers storage capacity up to 300 Liters.
General Features
Technical Specifications
Documents
Images & Videos
With the help of the electronic fuel feeding motor, it rotates the auger, providing the "Automatic Fuel Loading" capability. This way, you can heat up
without getting up from your seat, while also ensuring balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. The device will automatically load the fuel level in line with the temperature value you set, and then you will need to hold it in your hand to make it work.
In as little as 5 “minutes”, it will automatically perform the ignition.

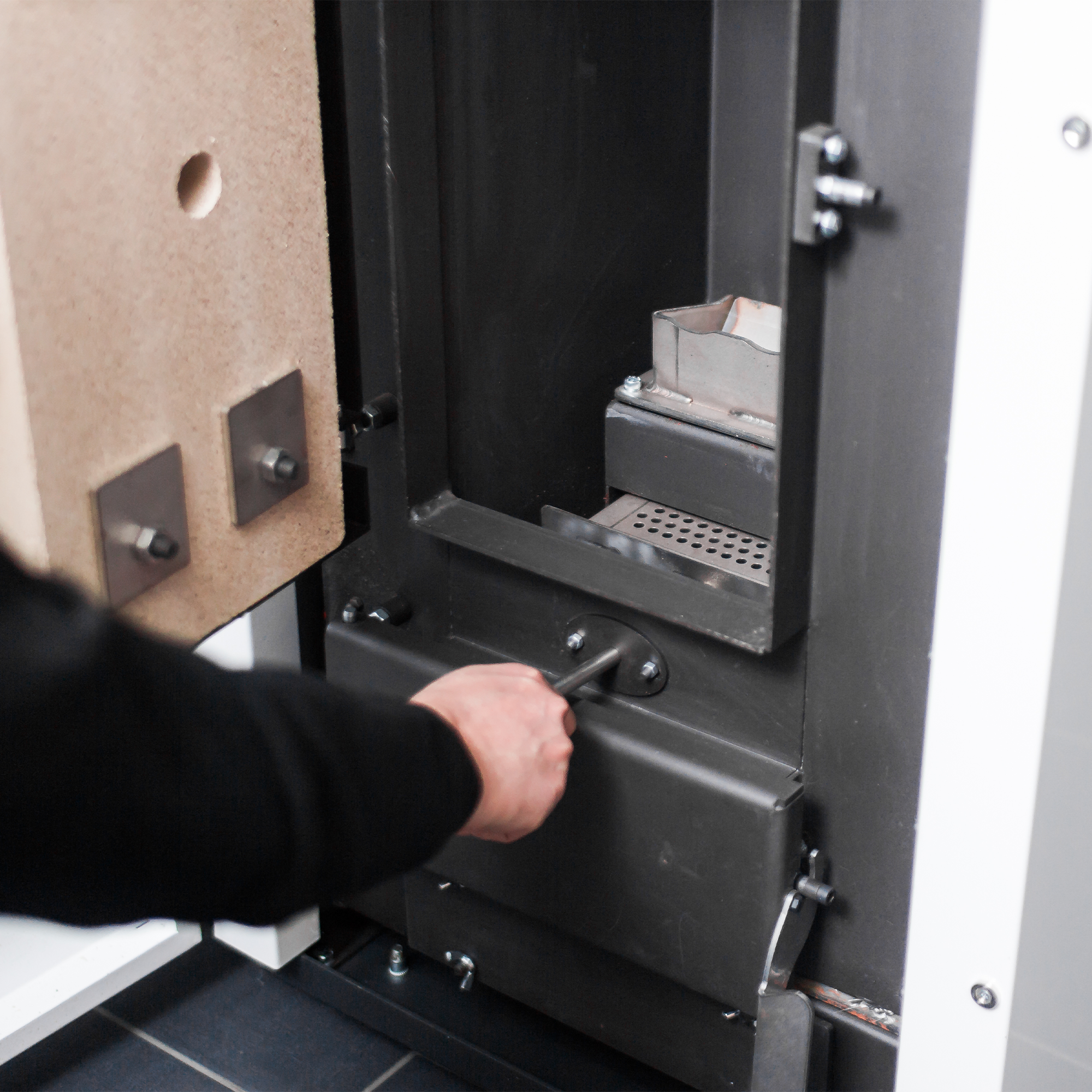

Of course, it is important to clean the appliance when it is switched off after these operations. This is why we have developed the “Manual Cooker Cleaning” system. This system allows you to open and close the stainless steel cooker hard with the lever under the cover of the appliance after the appliance stops working, so that all the ashes are discharged into the ash drawer underneath.

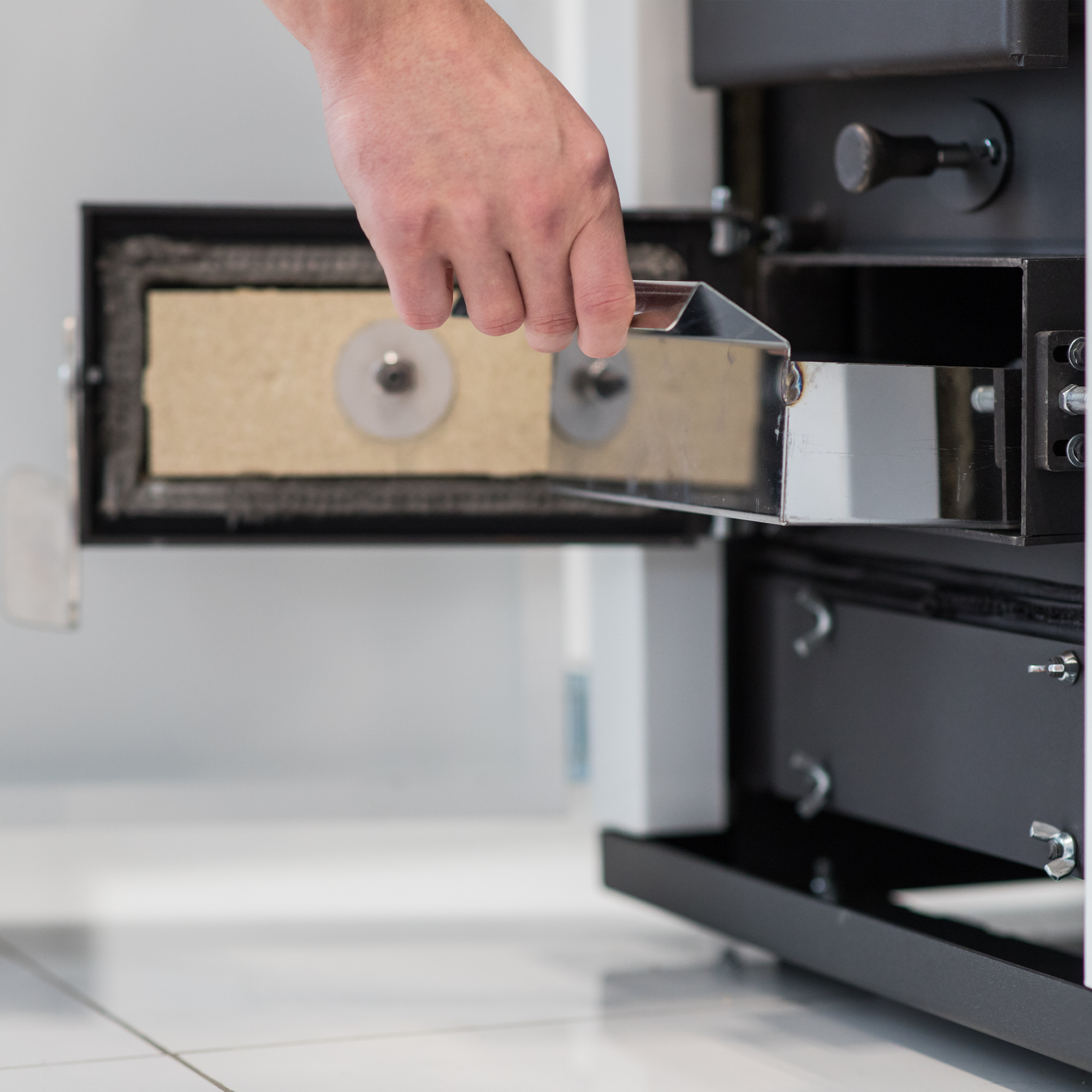

(Don't forget to empty the ash drawer too).
Let's not forget the smoke pipes that contribute to heating the water! The cleaning of this area is just as important as the stove cleaning.
But there's no need to worry!
We have developed a manual system that makes it easy to clean this area as well, keeping you in mind.
You can move the arms up and down after the device is turned off to clean it. (Don't forget to empty the ashtray as well.)

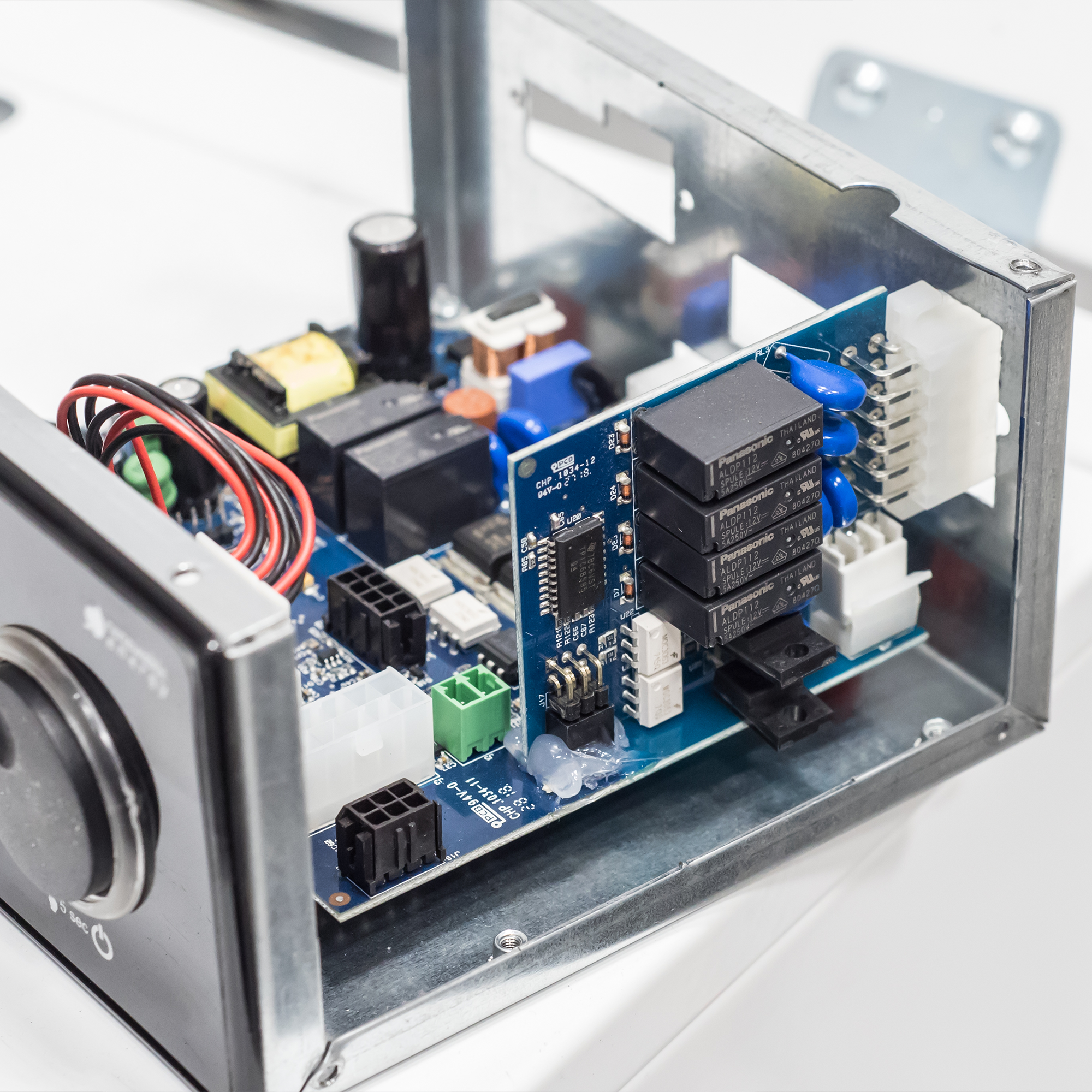

What about the electronic card that controls all these components? With this card,
you can control the device wirelessly, manage it fully automatically, and set a weekly schedule to create an automatic operation program.
Here’s some information about the electronic card we designed:
With this card, you can control the device wirelessly, manage it fully automatically, and set a weekly schedule to create an automatic operation program.
With the help of the electronic fuel feeding motor, it rotates the auger, providing the "Automatic Fuel Loading" capability. This way, you can heat up
without getting up from your seat, while also ensuring balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. The device will automatically load the fuel level in line with the temperature value you set, and then you will need to hold it in your hand to make it work.
In as little as 5 “minutes”, it will automatically perform the ignition.
Of course, it is important to clean the appliance when it is switched off after these operations. This is why we have developed the “Manual Cooker Cleaning” system. This system allows you to open and close the stainless steel cooker hard with the lever under the cover of the appliance after the appliance stops working, so that all the ashes are discharged into the ash drawer underneath.
(Don't forget to empty the ash drawer too).
Let's not forget the smoke pipes that contribute to heating the water! The cleaning of this area is just as important as the stove cleaning.
But there's no need to worry!
We have developed a manual system that makes it easy to clean this area as well, keeping you in mind.
You can move the arms up and down after the device is turned off to clean it. (Don't forget to empty the ashtray as well.)
What about the electronic card that controls all these components? With this card,
you can control the device wirelessly, manage it fully automatically, and set a weekly schedule to create an automatic operation program.
Here’s some information about the electronic card we designed:
With this card, you can control the device wirelessly, manage it fully automatically, and set a weekly schedule to create an automatic operation program.
With the help of the electronic fuel feeding motor, it rotates the auger, providing the "Automatic Fuel Loading" capability. This way, you can heat up
without getting up from your seat, while also ensuring balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. The device will automatically load the fuel level in line with the temperature value you set, and then you will need to hold it in your hand to make it work.
In as little as 5 “minutes”, it will automatically perform the ignition.
Of course, it is important to clean the appliance when it is switched off after these operations. This is why we have developed the “Manual Cooker Cleaning” system. This system allows you to open and close the stainless steel cooker hard with the lever under the cover of the appliance after the appliance stops working, so that all the ashes are discharged into the ash drawer underneath.
(Don't forget to empty the ash drawer too).
Let's not forget the smoke pipes that contribute to heating the water! The cleaning of this area is just as important as the stove cleaning.
But there's no need to worry!
We have developed a manual system that makes it easy to clean this area as well, keeping you in mind.
You can move the arms up and down after the device is turned off to clean it. (Don't forget to empty the ashtray as well.)
What about the electronic card that controls all these components? With this card,
you can control the device wirelessly, manage it fully automatically, and set a weekly schedule to create an automatic operation program.
Here’s some information about the electronic card we designed:
With this card, you can control the device wirelessly, manage it fully automatically, and set a weekly schedule to create an automatic operation program.
MODEL
LIDYA COMPACT 15+240 LT
LIDYA COMPACT 15+240 LT
LIDYA COMPACT 25+300 LT
| Capacity kW | 5-15 |
| Width (A) mm | 910 |
| Length (B) mm | 825 |
| Length (B1) mm | |
| Height (C) mm | 1200 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 243 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 173 |
| Water Capacity lt | 29 |
| Tank Capacity lt | 240 |
| Ash Box Capacity l | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-3.3 |
| Capacity kW | 5-25 |
| Width (A) mm | 965 |
| Length (B) mm | 965 |
| Length (B1) mm | |
| Height (C) mm | 1320 |
| Hot Water Outlet Height (D) mm | 525 |
| Cold Water Inlet Height (E) mm | 260 |
| Flue Outlet Height (F) mm | 155 |
| Flue Diameter mm | 80 |
| Flow – Return inches | 1 |
| Fill – Drain inches | 1/2 |
| Weight kg | 220 |
| Water Capacity lt | 37 |
| Tank Capacity lt | 300 |
| Ash Box Capacity l | |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 40-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 60 |
| Fan Power W | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 10 |
| Fuel Consumption kg/h | 1.1-5.6 |
